Float Valve 3/4" Brass Bob
SKU: VA-B07

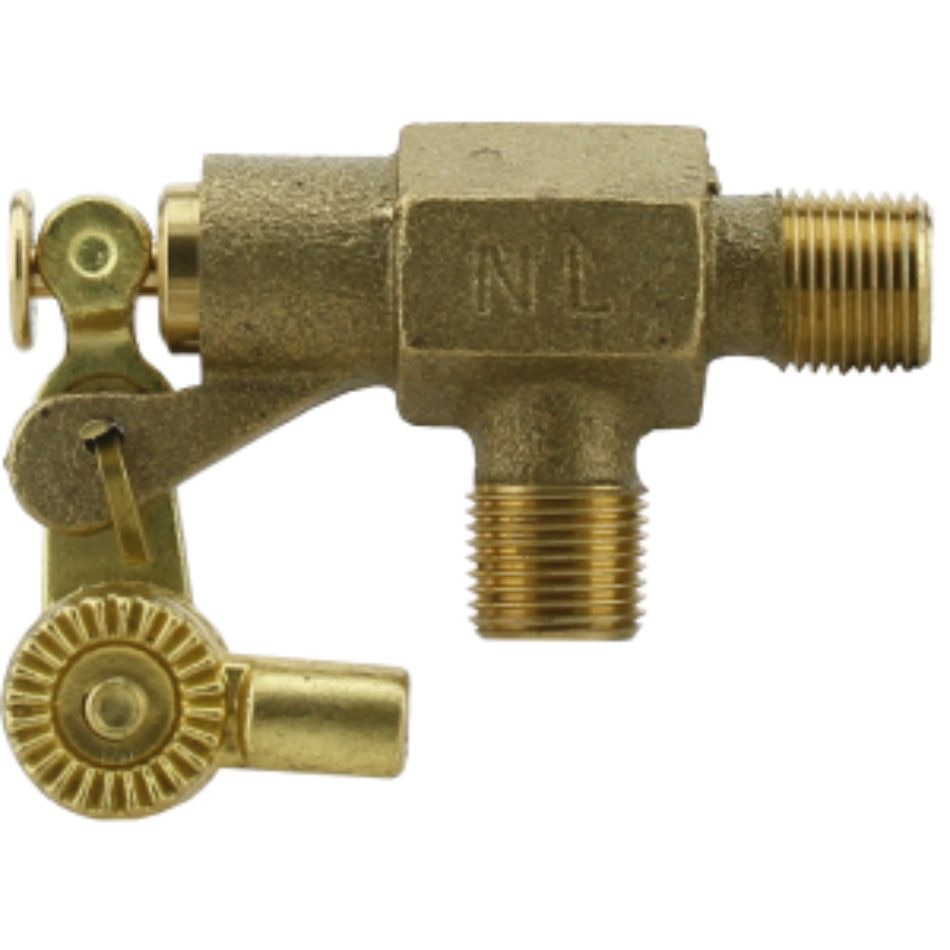

Float Valve 3/4" Brass Bob
This 3/4" bronze float valve is used to maintain water levels in a body of water. Heavy duty bronze body with a Buna-N disc seal. Rod and float not included and are sold separately. The most common use of a float valve is to control the filling of livestock water tanks and water tower cooling tanks as well as many other automatic tank filling applications.
Features -
- SMT connection is straight male thread with a gasket and nut
- Inlet Size - ¾"
- Outlet Size - ¾"
- Design - Standard
- Rod Connection - 1/4" - 20 SAE
- Inlet Connection - MPT
- Primary Material - Brass
- Outlet Connection - MPT
- Temperature Range - Up to 180°F (82°C)
- Maximum Pressure Rating - 125 PSI
- No Lead
- NSF / ANSI 372
Thread Sealants: Teflon Tape or Paste?
Teflon tape is a quick and clean way to seal threads in most applications. When applying Teflon tape, care must be taken to apply the tape correctly or leaking may still occur. You should wrap the thread 2-3 times around the threads in a counter-clockwise direction so that the tape doesn't bunch up when it is screwed into the pipe. Do not over tighten, as this may cause the tape to become thin or break in spots, while under tightening may allow water through.
For professional, long-term or industrial applications, Teflon paste, although messy and more difficult to apply, will provide a more reliable seal that won't leak if the plastic pipe distorts over time. Teflon paste should be applied to both the male and female threads.
Teflon tape is a quick and clean way to seal threads in most applications. When applying Teflon tape, care must be taken to apply the tape correctly or leaking may still occur. You should wrap the thread 2-3 times around the threads in a counter-clockwise direction so that the tape doesn't bunch up when it is screwed into the pipe. Do not over tighten, as this may cause the tape to become thin or break in spots, while under tightening may allow water through.
For professional, long-term or industrial applications, Teflon paste, although messy and more difficult to apply, will provide a more reliable seal that won't leak if the plastic pipe distorts over time. Teflon paste should be applied to both the male and female threads.
