Well Seal 6" x 1" Cast Iron
SKU: PA-WS6010

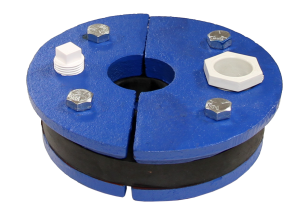

Well Seal 6" x 1" Cast Iron
This cast iron well seal rests on top of a 6" well and allows a 1" drop pipe, 1/2" vent and 1" conduit to pass through the seal. Four bolts compress the rubber gasket sealing the well, drop pipe, gasket and vent.
Specifications
- For Submersible Pump Applications
- Vent Size - ½"
- Design - Single Hole
- Drop Pipe Size - 1"
- Well Casing I.D. - 6"
- Primary Material - Cast Iron
- Conduit Connection - 1" FPT
- Product Model - Cast Iron Well Seals
Dimensions
- Width - 6.75 in
- Height - 2.50 in
- Length - 6.85 in
- Weight - 7.56 lb
Certifications
- No Lead
