SubDrive Utility UT2W 2-Wire 115V 1/3HP to 1/2HP or 230V 1/2HP 1.5HP

Franklin SubDrive 2W Utility Variable Frequency Drive

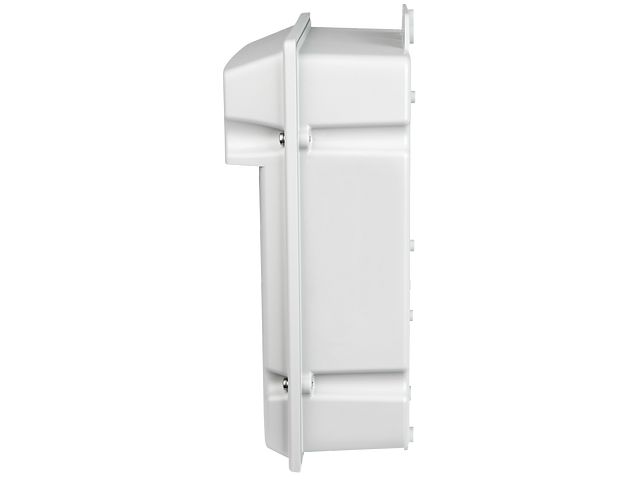

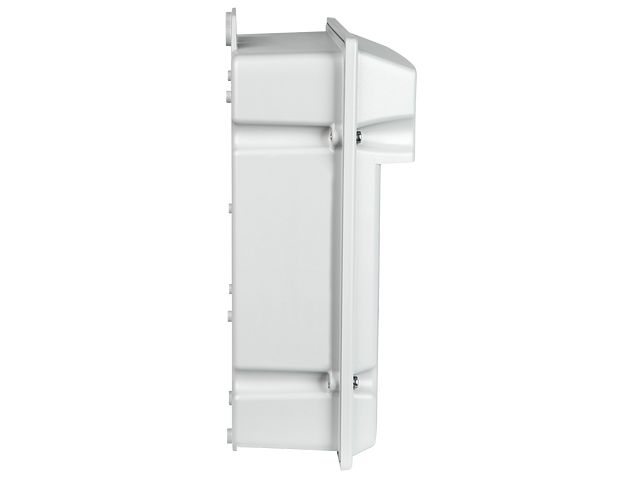

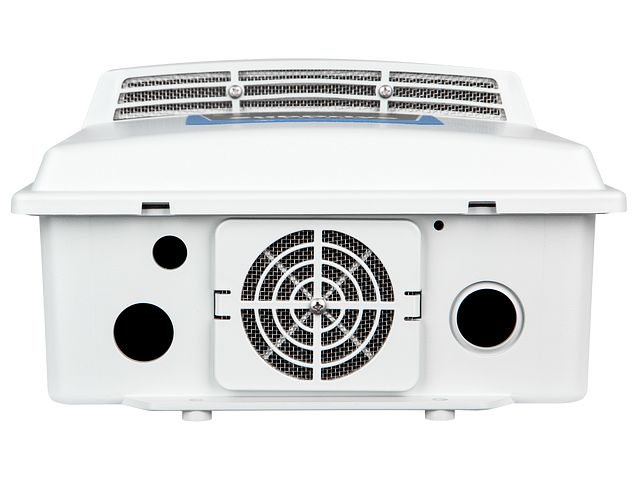

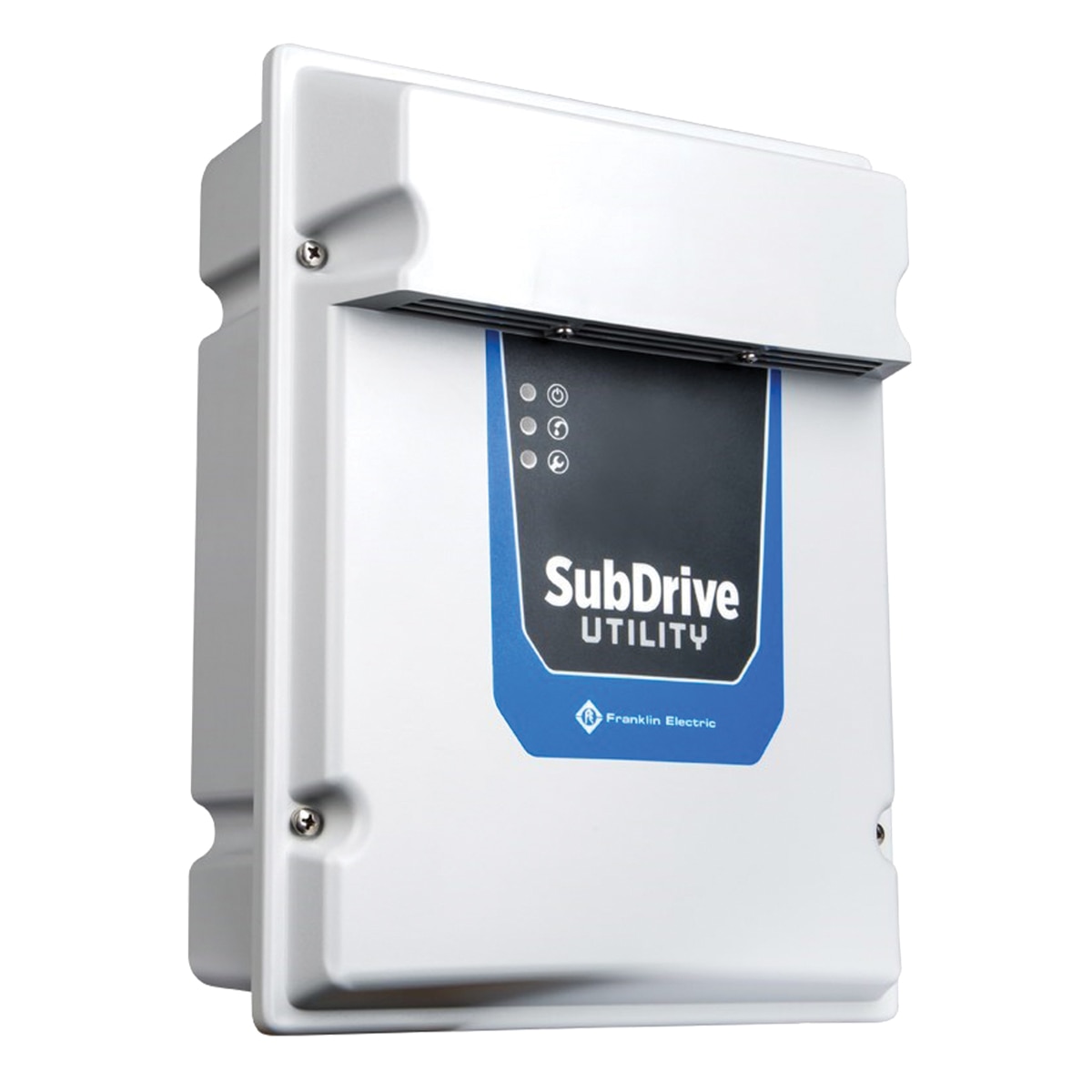

Franklin Electric's SubDrive Utility™ Variable Frequency Drives provide an easy-to-install constant pressure solution for 115 V and 230 V single-phase, two-wire systems and 230 V three-wire and three-phase systems up to 2 hp. Requiring only a small pressure tank in most applications, they offer a more compact overall footprint compared to traditional water systems while providing the added value of constant water pressure and built-in motor protection. Designed with a sleek NEMA 3R (Type 3R) enclosure, they are rated for both indoor and outdoor use that provides a degree of protection against falling rain or sleet.

Features & Benefits

• Designed for Water Systems, Optimized for Constant Pressure: Designed specifically for water pumping applications, SubDrive Utility delivers unique features:
  • Provides consistent water pressure across a system, eliminating fluctuations
  • Additional built-in protections include:
    • Underload (Dry-run) with customizable sensitivity
    • Overload / Locked pump
    • Output short circuit and open circuit
    • Undervoltage
• Simple Installation, Easy-to-install drive: most applications require the simple flip of one switch, saving significant time during installation
• Versatility for Multiple Applications:
  • Ideal for retrofitting or optimizing existing single-phase, two-wire or three-wire, and three-phase submersible or above ground pumping systems up to 2 horsepower
• Smaller Footprint, Smarter Use of Space:
  • Compact design, that is ideal for wall-mounting, works with small pressure tanks or existing units
  • Cost-effective solution that replaces the need for multiple control boxes, a pressure switch, and larger tanks; delivers a total system cost at or below standard installations with pump flows of 10 gpm and greater
  • Can be used indoors or outside since the self-contained NEMA 3R-rated drive provides a degree of protection against falling rain or sleet
• Fully Supported: Comes fully supported by the industry-leading technical support professionals and field service engineers
