Hudson 1" Fill Valve
SKU: HUD-VRP10

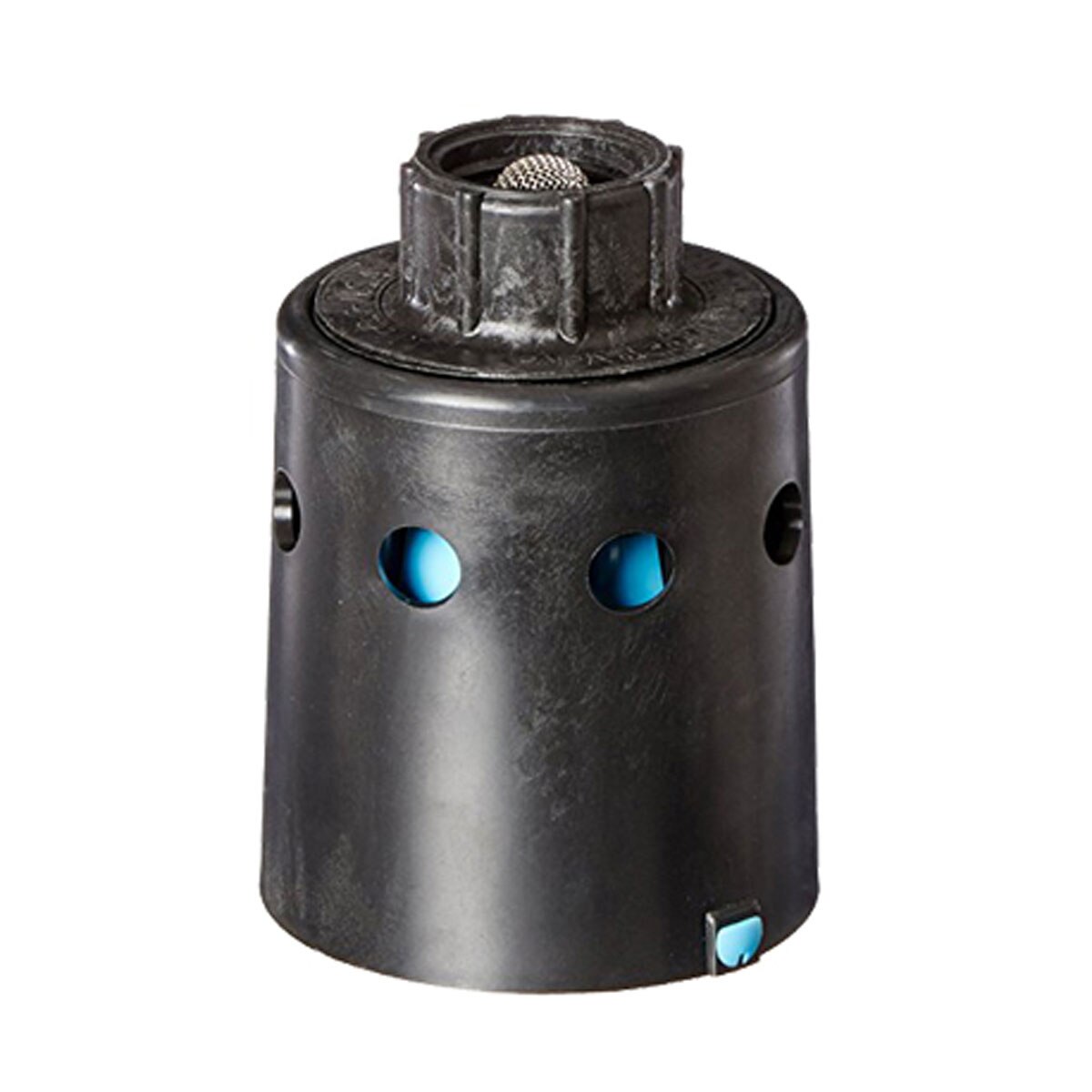

Hudson 1" Fill Valve
The 1" Hudson Valve, with its new and innovative design, will solve your fluid control problems once and for all. This compact, virtually indestructible valve is well adapted to a wide variety of applications, from personal home use to large-scale industrial use. This valve is ideal for any application where it is necessary to control the level of fluid. The Hudson Valve's unique design has caught the attention of people in every type of industry where fluid control is necessary.
The unique patented design of the Hudson Valve uses fluid pressure, as opposed to a lever arm and ball, as the force to close the valve. This compact, self-contained design greatly enhances the valve's reliability. HUD/K405The valve body is made of durable glass-filled nylon. Internal parts are of ABS plastic, silicone, and stainless steel. When properly installed, the valve will meet anti-siphon requirements.
1" VALVE | 1/2" VALVE | 1/4" VALVE | |
Thread Female | 1.0" | 1/2" | 1/4" |
Height | 5.0" | 5.0" | 2.75" |
Diameter | 3.75" | 3.0" | 2.0" |
Operating Pressure | 4 lbs. - 100 lbs. | 4 - 100 psi | 4 - 80 psi |
Flow Rate | approx. 80% of flow | approx. 80% of flow | approx. 80% of flow |
Max Fluid Temp. | 175ø F | 175ø F | 175ø F |
Hudson 1" Fill Valve Parts
| Diag. No. | Item No. | Description |
|---|---|---|
| HUD-K410 | Hudson 1" Fill Valve Repair Kit (VRP10) | |
| Not all products are currently in stock. Non-stocking items can be ordered, which may increase delivery times. | ||
