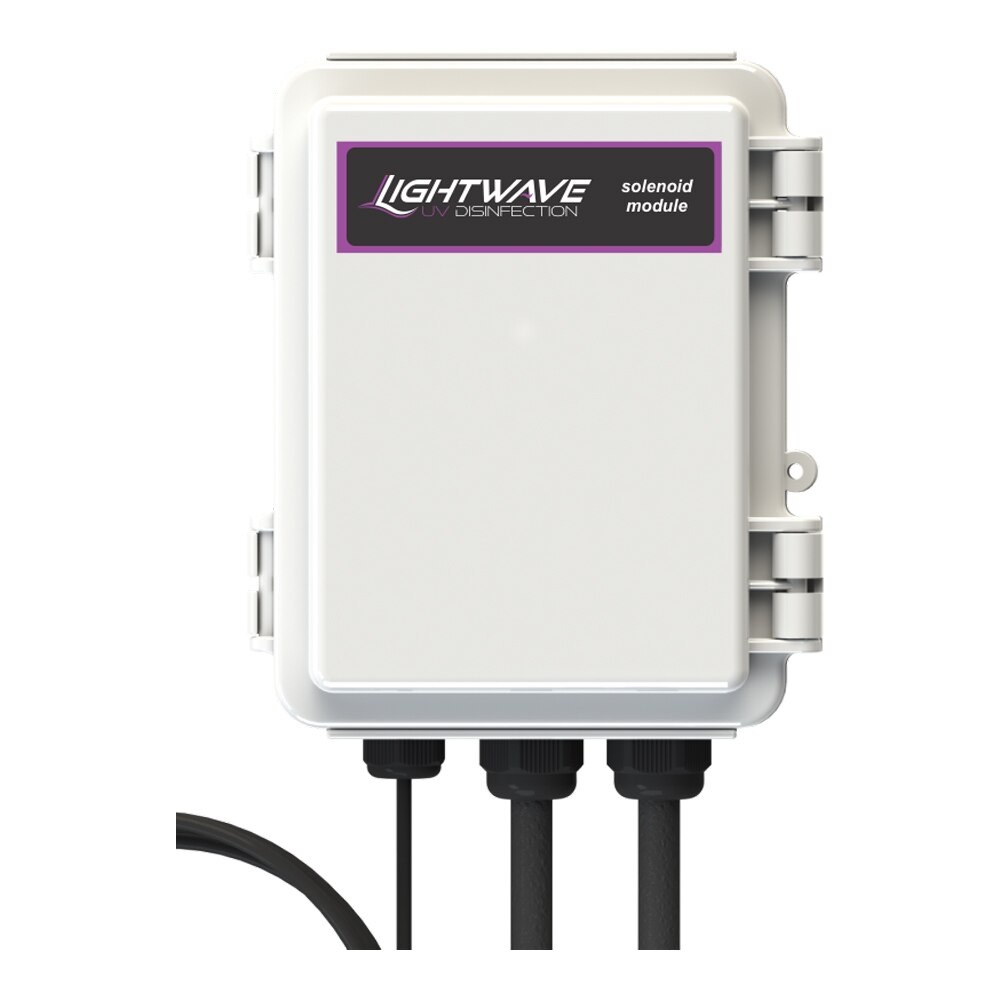

Lightwave 110V Solenoid Connection Module for 5.1 Systems

Lightwave 110V Solenoid Connection Module for 5.1 Systems

Used to power a remote normally closed solenoid valve (not included). Solenoid will close on lamp failure or when low UV conditions are detected by the sensor.

Install a normally closed line voltage solenoid valve into this junction box. Connect the power and the supplied lead to the controller. Please note that when this device is connected to a “5.1” system (without the UV sensor module), then the solenoid will close on a lamp failure mode only. When used on a “6.1” system, the solenoid will close when the UV level drops below 50%. Also note that in cases where emergency use of untreated water is required, the module can be placed into a manual override mode allowing for the flow of water in an alarm condition. North American NEMA 5/15 plug.

• Allows for a solenoid connection on Lightwave (5.1 and 6.1 only) products (will work on lamp failure only on 5.1 systems).
• Customer simply needs to purchase a normally closed line voltage solenoid valve and affix the module’s supplied bare lead cord to the solenoid valve.
• Connect power cable to electrical outlet and the other lead to the “future-proof” expandability port on the controller.
