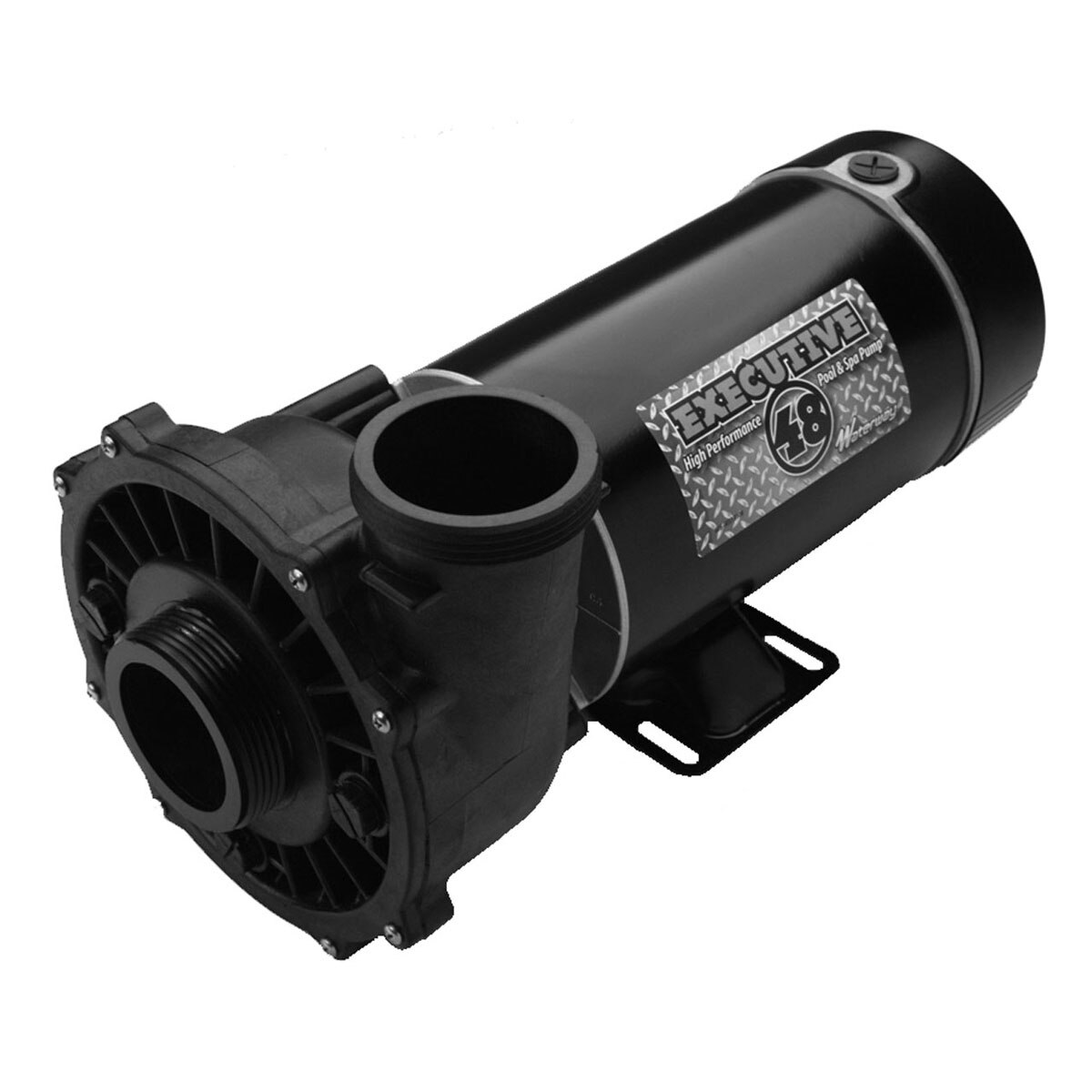

Waterway Executive 1 1/2 HP, 115v 2 Speed (2" Side Discharge) Spa Pump
SKU: WW-34206101A
Waterway 1 1/2 HP, 115v 2 Speed (2" Side Discharge) Spa Pump
Features:
- Executive wet end designed specifically for 48-frame motors.
- Large 2 1/2" intake for improved flow performance and reduced noise.
- Large 6 1/2" diameter wet end for higher head pressure.
- Thermally protected to extend the life expectancy of your motor.
- Highly versatile wet end can be rotated every 90 degrees.
- Viton Seals.
- 115V Executive, 48fr, 2Sp (16.4/4.4 Amps).
- Use 2" unions - WW-4005570 (not included).
| TWO SPEED FULL RATED | ||||||
|---|---|---|---|---|---|---|
| Model | Voltage | Full Load Amps | HP | Union Connection | ||
| WW-34204101A | 115 | 11.0 / 2.9 | 1 | 2" x 2" | ||
| WW-34206101A | 115 | 16.4 / 4.4 | 1 1/2 | 2" x 2" | ||
| WW-34206201A | 230 | 8.0 / 2.6 | 1 1/2 | 2" x 2" | ||
| WW-34208201A | 230 | 10.5 / 2.6 | 2 | 2" x 2" | ||
| GPM Flow @ Feet of Head | |||||
|---|---|---|---|---|---|
| 30' | 40' | 50' | 60' | 70' | |
| WW-34204101A | 65 | 50 | 32 | 10 | |
| WW-34206101A | 100 | 85 | 60 | 20 | |
| WW-34206201A | 100 | 85 | 60 | 20 | |
| WW-34208201A | 130 | 115 | 85 | 40 | 10 |
