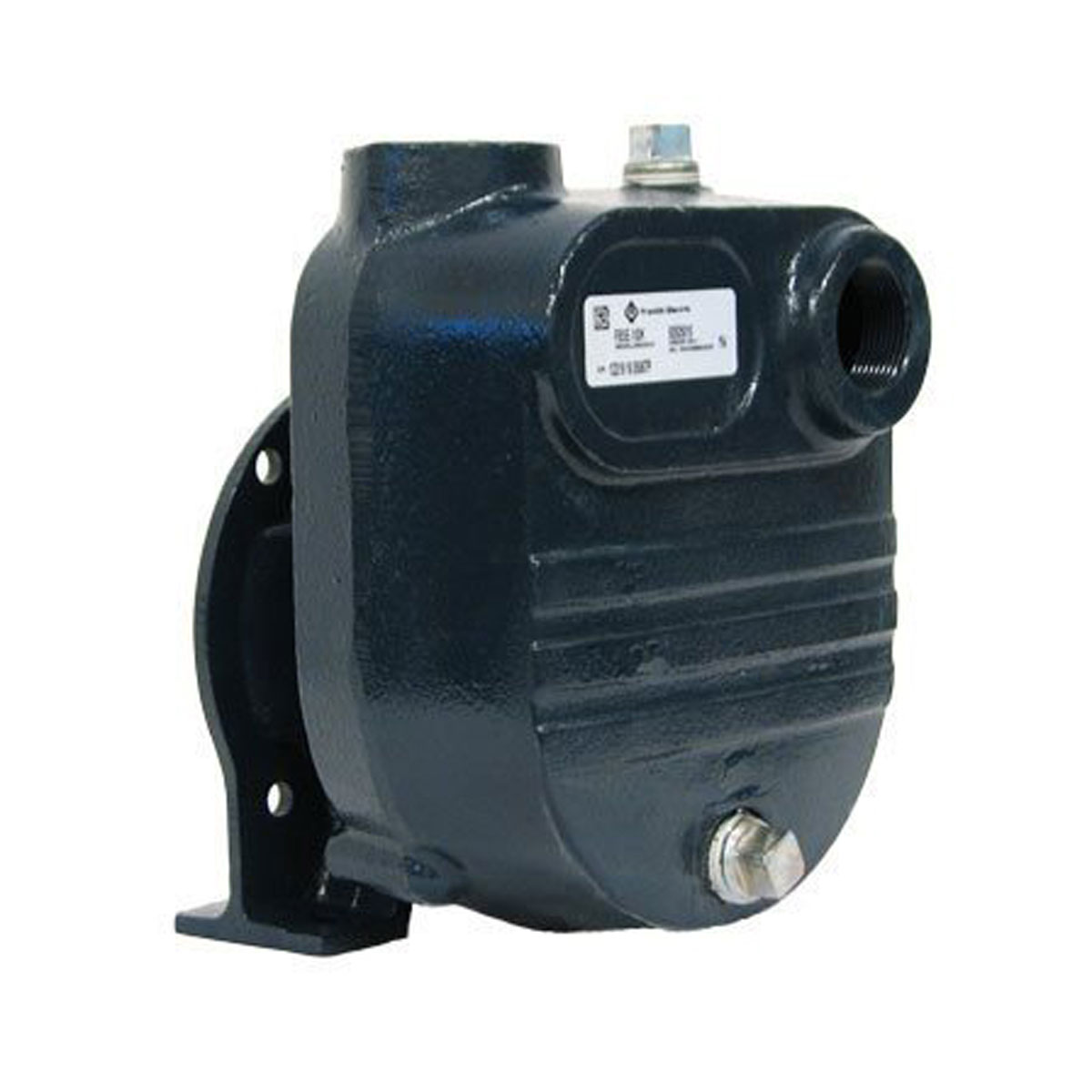

FPS 2 HP Self Priming Pump End Only (FBSE200K)
SKU: FRA-92925020
FPS 2 HP Self Priming Pump End Only (FBSE200K)
The BSE-S Series pumps are self priming utility/effluent pumps. They are constructed of durable cast iron which makes them long lasting in a variety of applications.
The BSE-S pumps are designed to be very simple to operate. This is made possible by the self priming casing which is engineered to prime itself quickly once it has been filled with water. Ideal for pumping out flooded basements, livestock watering, flood irrigation and general dewatering.
This 2 horsepower pump has a maximum flow of 126 GPM and a maximum head of 75' (32 PSI). 3450RPM 56J Motor not included. 2" FIPT suction and discharge.
- Cast iron pump casing
- Built in check valve
- 4 vane, semi-open gray cast iron impeller with ”blind hole” for motor shaft protection
- Horsepower: 2
- Flow: 126 GPM @ 20’ Head
- Shut Off: 75’
- Suction: 2”
- Discharge: 2”
- Weight: 22 lbs
Flow in US GPM | ||||||||
---|---|---|---|---|---|---|---|---|
20' | 30' | 40' | 50' | 60' | 70' | 80' | 90' | |
LG/621815 | 45 | 31 | 16 | |||||
LG/621825 | 58 | 44 | 29 | 10 | ||||
FPS/92925005 | 55 | 46 | 32 | 10 | ||||
FPS/92925010 | 80 | 70 | 60 | 42 | 20 | |||
FPS/92925015 | 102 | 78 | 55 | 35 | 8 | |||
FPS/92925020 | 126 | 103 | 80 | 58 | 32 | 10 | ||
FPS/92925030 | 148 | 142 | 130 | 120 | 99 | 70 | 35 | 5 |
