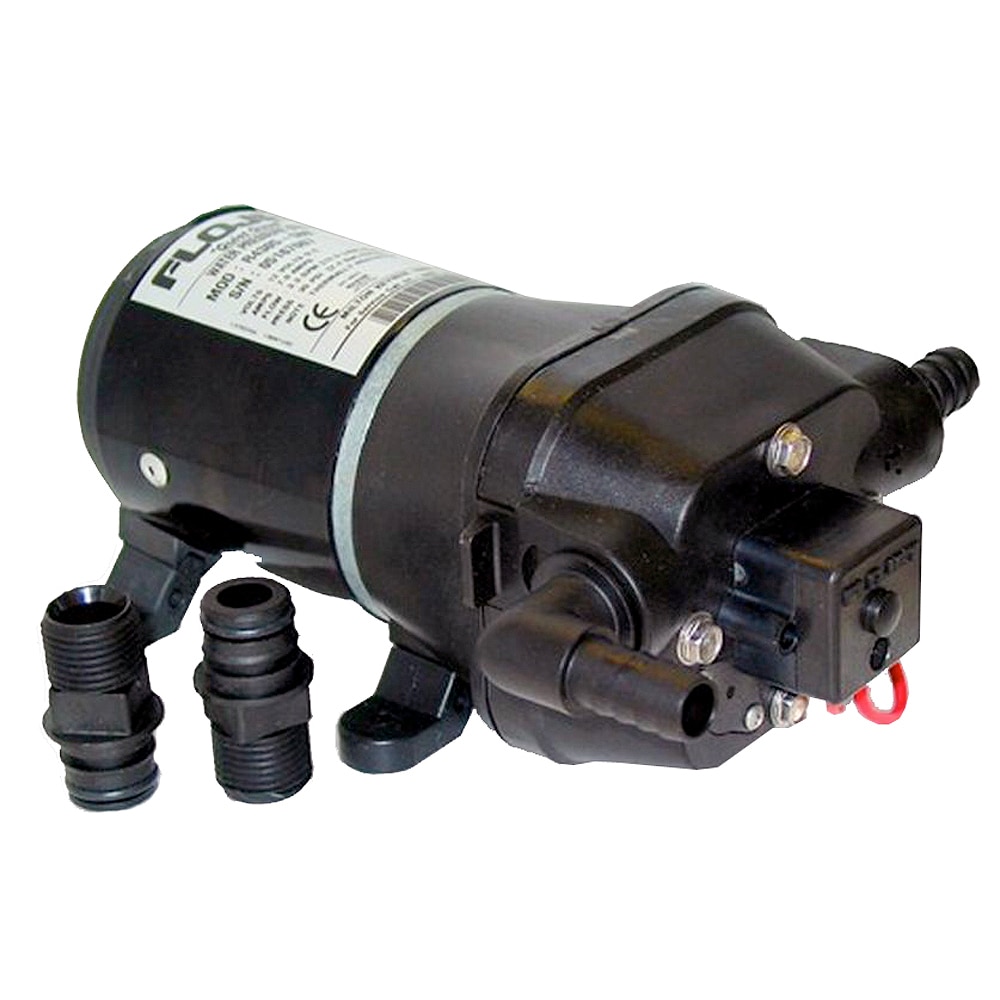

Flojet 115v, 3.3 GPM Demand Pump
SKU: FLO-04406043A
Flojet 115v, 3.3 GPM Demand Pump
The FloJet ’Quiet Quad’ Water System Pumps is a 115 volt, intermittent duty automatic water system pump. This pump is well suited for use with a holding tank water system, as may be found in a boat, RV or remote cabin. Flojet’s Quad Pump series provides high volume water flow with reduced pump cycling, thanks to the four chamber diaphragm and internal bypass. The 4406 models are designed to run on water systems with no accumulator tank.
Quad Pumps are self-priming, and can run dry without damage. The internal bypass feature allows excess water to recirculate inside the pump, eliminating the need for an accumulator tank. They're easy to install, service and winterize with Quad snap-in port fittings.
This 115 volt pump has a maximum flow of 3.3 GPM, a maximum PSI of 35 pounds and will start and stop on demand. Includes inlet and outlet adapters for 1/2” barbed and 1/2” Male NPT.
- Intermittent duty
- Self-Priming up to 6’
- Dry Running
- Soft, noise absorbing mounts
- Permanent Magnet, Ball Bearing Motor
- Four chamber diaphragm design
- Voltage: 115v
- GPM Max: 3.3 GPM
- Max PSI: 35
- Amp Draw: 0.4 @ 10 PSI
- Weight: 3.9 lbs
- Height: 3.75”
- Width: 6.3”
- Length: 8.2”
Flojet 115v 04406043A Demand Pump Parts
| Diag. No. | Item No. | Description |
|---|---|---|
| FLO-02090103 | Flojet Pressure Switch | |
| FLO-20403040 | Flojet Diaphagm (04300143A / 04406043) | |
| FLO-20407030 | Flojet Check Valve (04300143A / 04406043 | |
| FLO-20408000 | Flojet Quad Port Clips (Pkg 2) | |
| Not all products are currently in stock. Non-stocking items can be ordered, which may increase delivery times. | ||
