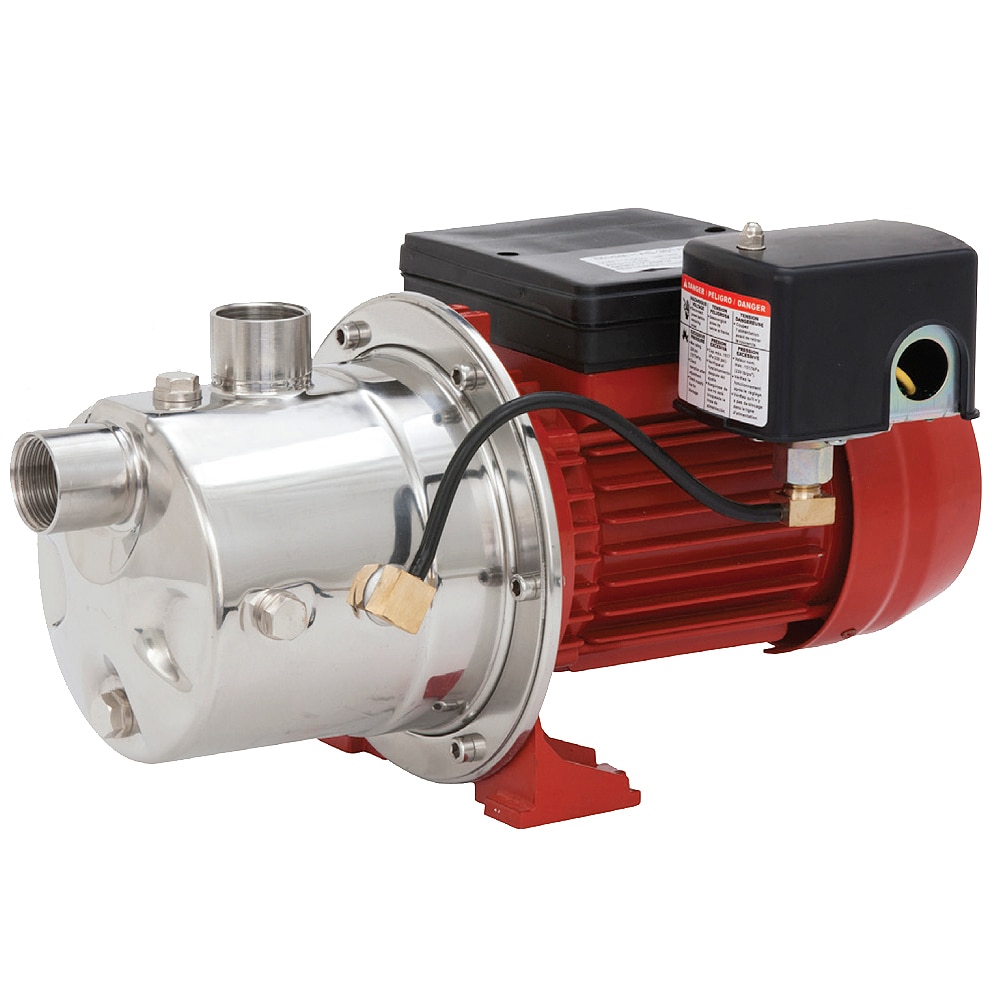

Red Lion 3/4 HP Stainless Steel Shallow Well Jet Pump
SKU: RL-97080702
Red Lion 3/4 HP Stainless Steel Shallow Well Jet Pump
Ideal for the supply of fresh water to rural homes, farms, and cabins that have suction lifts down to 25'.
Features & Benefits
- Shallow well jet pump - ideal for use in pumping at depths of 25' or less.
- Corrosion-resistant stainless steel pump housing - for years of service and reliability.
- Includes factory pre-set 30/50 pressure switch - produces up to 50 psi with automatic shut-off.
- 115/230 Volt heavy-duty motor - TEFC design with simple connection to existing power source.
| HP | AMPS/VOLTS | INTAKE | DISCHARGE | PRESSURE GAUGE PORT | SUCTION LIFT | DISCHARGE PRESSURE (PSI) | MAX PRESSURE PSI | MAX HEAD | MAX FLOW GPM | |||
| 30 | 40 | 50 | 60 | |||||||||
| GALLONS PER MINUTE | ||||||||||||
| 3/4 | 9.0A @ 115V 4.5A @ 230V | 1" FNPT | 1" FNPT | 1/8" NPT | 5' | 12.8 | 9.1 | 5.3 | 2.1 | 73 | 169' | 12.8 |
| 15' | 9.4 | 7.4 | 3.9 | 1.7 | 68 | 158' | ||||||
| 25' | 4.9 | 4.9 | 2.7 | 0.2 | 65 | 150' | ||||||
