1 1/2" Vulcan 3-Tier Adjustable Brass Fountain Head
SKU: HG-R15
1 1/2" Vulcan 3-Tier Adjustable Brass Fountain Head

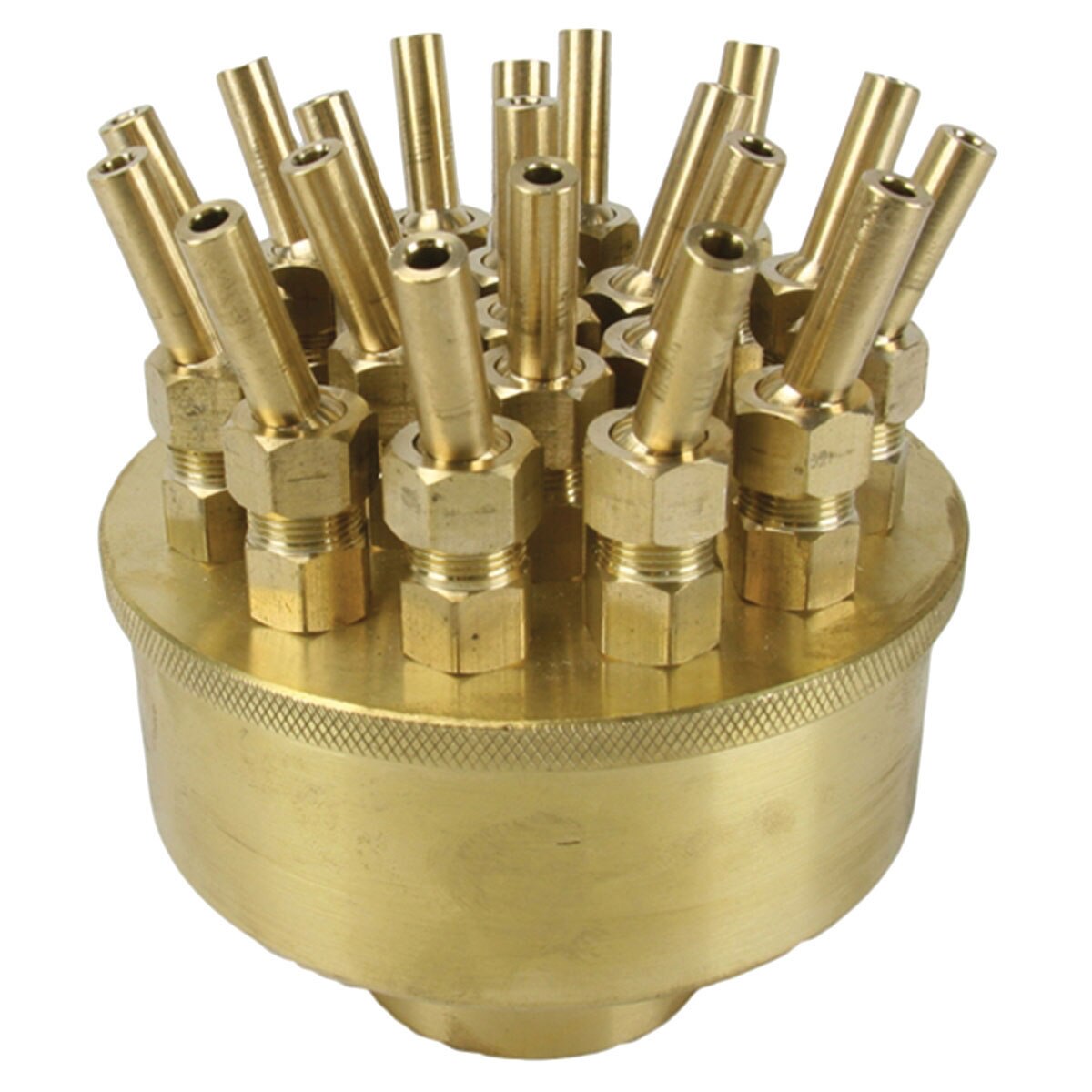

The Vulcan 3-Tier brass spray nozzle has 19 adjustable narrow jets. The angle of all nineteen jets can be adjusted by simply loosening the brass nut and adjusting the base of each jet then re-tightening to lock the nozzle. The jets can be aimed vertically to create a narrower display or the 12 outside and 6 middle jets can be angled out to increase diameter and create a more decorative pattern.
All nozzles have FNPT threaded ends to connection to plumbing/piping.
The final height of your Vulcan 3-Tier spray nozzle pattern will depend on the pump flow and the size of the nozzle chosen. Ensure that the hose or PVC tubing that connects your pump to the nozzle is a sufficient diameter. Always try to use a pipe with the same diameter as the nozzle to minimize loss of flow from pipe friction.
- Brass construction
- 1 1/2" FIPT
| VULCAN 3-TIER ADJUSTABLE FOUNTAIN NOZZLE | |||
|---|---|---|---|
 | HG/R15 | ||
| GPM | Head | ||
| 1' | 9 | 1.2' | |
| 2' | 12 | 2.3' | |
| 3' | 15 | 3.2' | |
| 4' | 19 | 4.6' | |
| 5' | 21 | 5.5' | |
 | 6' | 23 | 6.4' |
| 7' | 25 | 7.8' | |
| 8' | 26.5 | 8.7' | |
| 9' | 28 | 9.7' | |
| 10' | 30 | 10.8' | |
| Inlet | 1 1/2" | ||
| Thread | FIPT | ||
| Material | Brass | ||
