1" Cluster Brass Fountain Head
SKU: HG-FA1

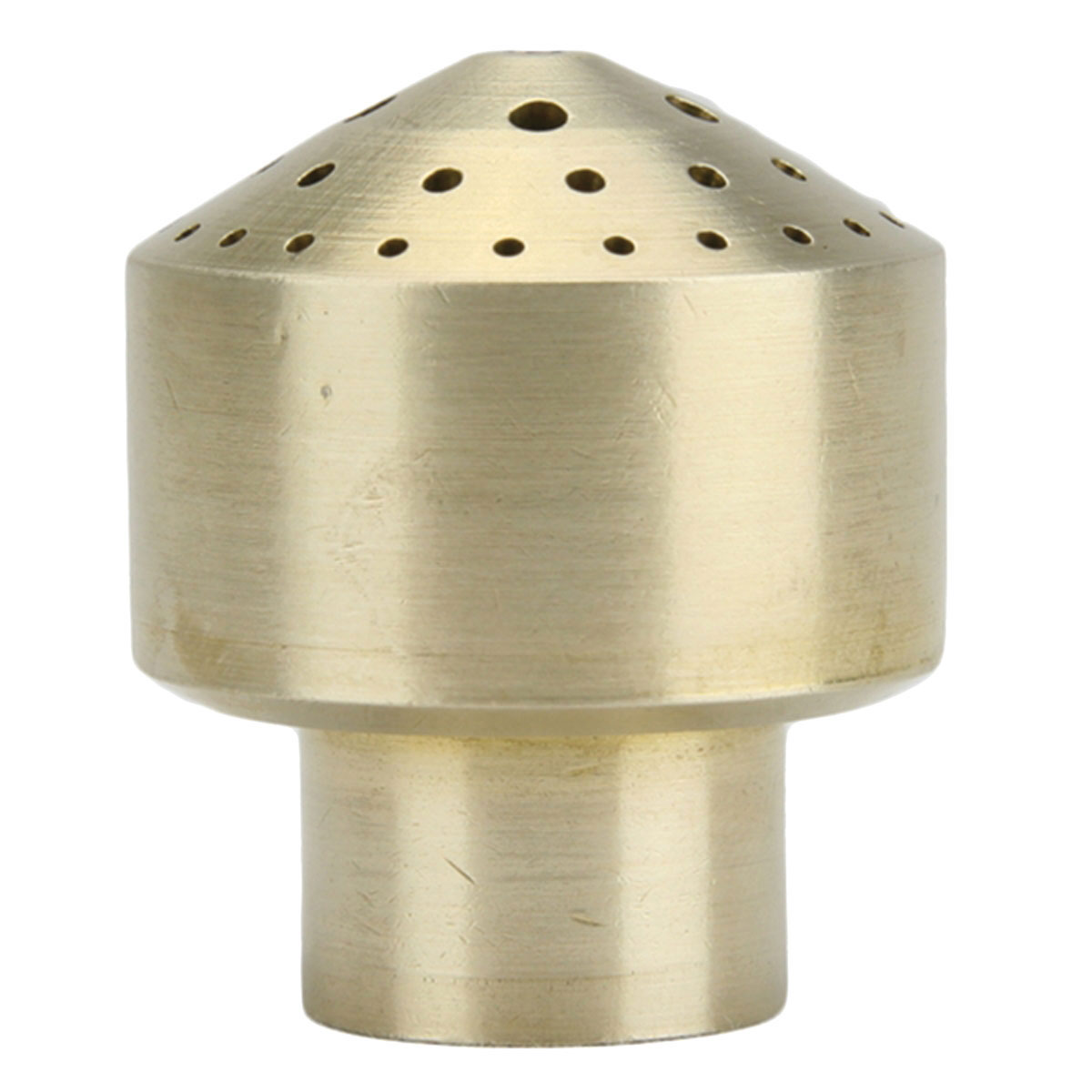

1" Cluster Brass Fountain Head
The Cluster 5-Tier brass spray nozzle has equally spaced holes that provide five different heights in a pattern that resembles a wide shower head that rises and splashes like rain drops on the water. The five levels are not clearly defined and the spray pattern is an abstract, yet structured pattern that looks dramatic with lights. The effect is a vague five-tiered display, floral-like and sprinkling.
The final height of your Cluster spray nozzle pattern and the diameter of the outer tiers will depend on the pump flow and the size of the nozzle chosen. Ensure that the hose or PVC tubing that connects your pump to the nozzle is a sufficient diameter. Always try to use a pipe with the same diameter as the nozzle to minimize loss of flow from pipe friction.
- Brass construction
- 1" FIPT
The following chart is an approximate detailing of various spray heights with various pump flows at required head rating. Ensure your pump gives the recommended flow at the specified head (height).
| CLUSTER FOUNTAIN NOZZLES | |||||
|---|---|---|---|---|---|
 | Display Height | HG/FA1 | |||
| GPM | Head | ||||
| 2' | 9 | 1.4' | |||
| 3' | 11 | 2.3' | |||
| 4' | 13 | 4.4' | |||
| 5' | 15 | 5.5' | |||
| 6' | 17 | 6.7' | |||
 | 7' | 18 | 7.8' | ||
| 8' | 20 | 9' | |||
| 9' | 22 | 11' | |||
| Inlet | 1" | ||||
| Thread | FIPT | ||||
| Material | Brass | ||||
