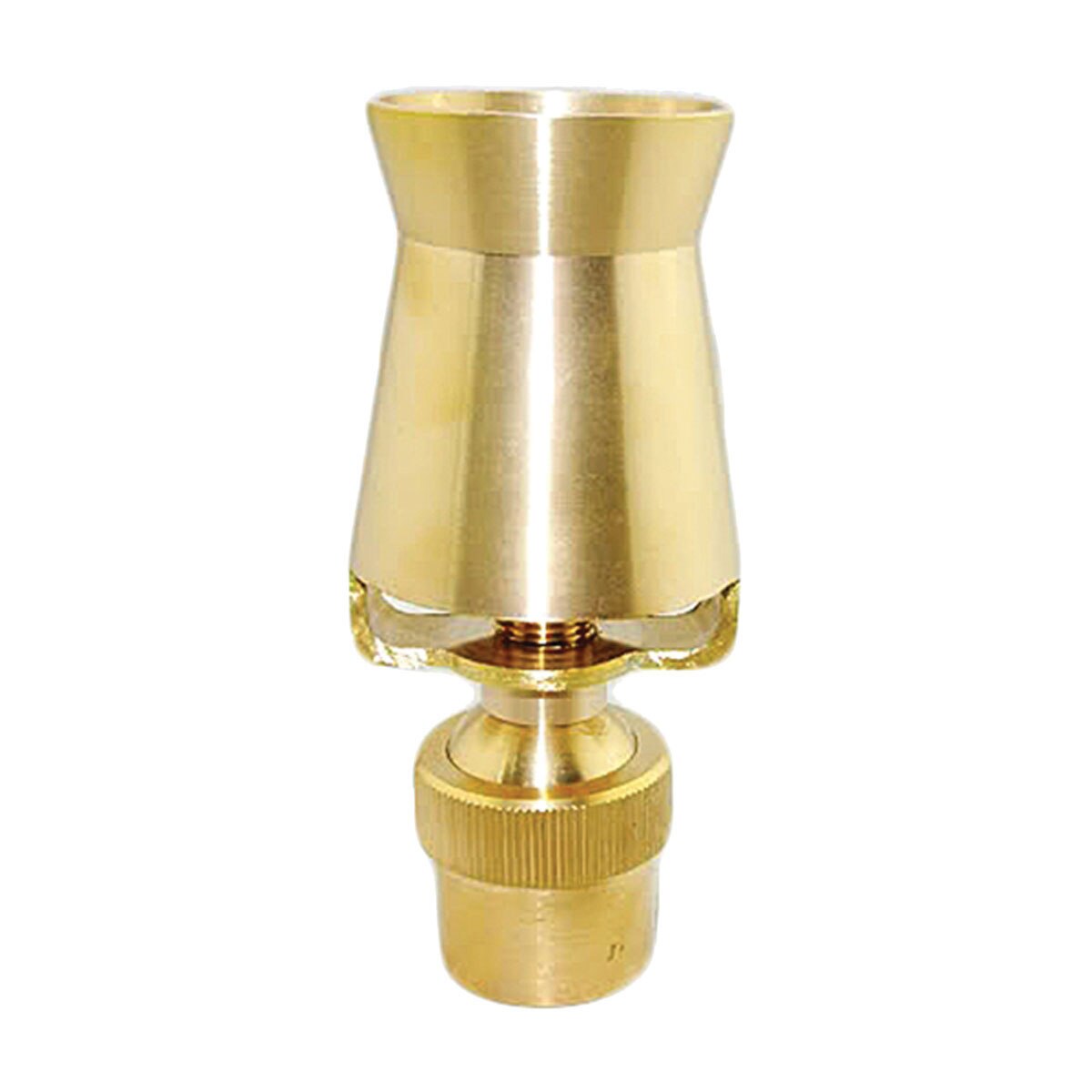

2" Cascade Brass Fountain Head
SKU: HG-TG2
2" Cascade Brass Fountain Head

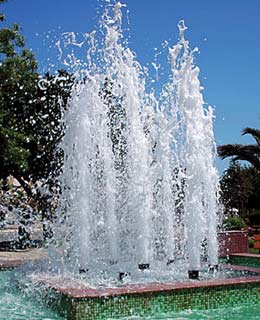

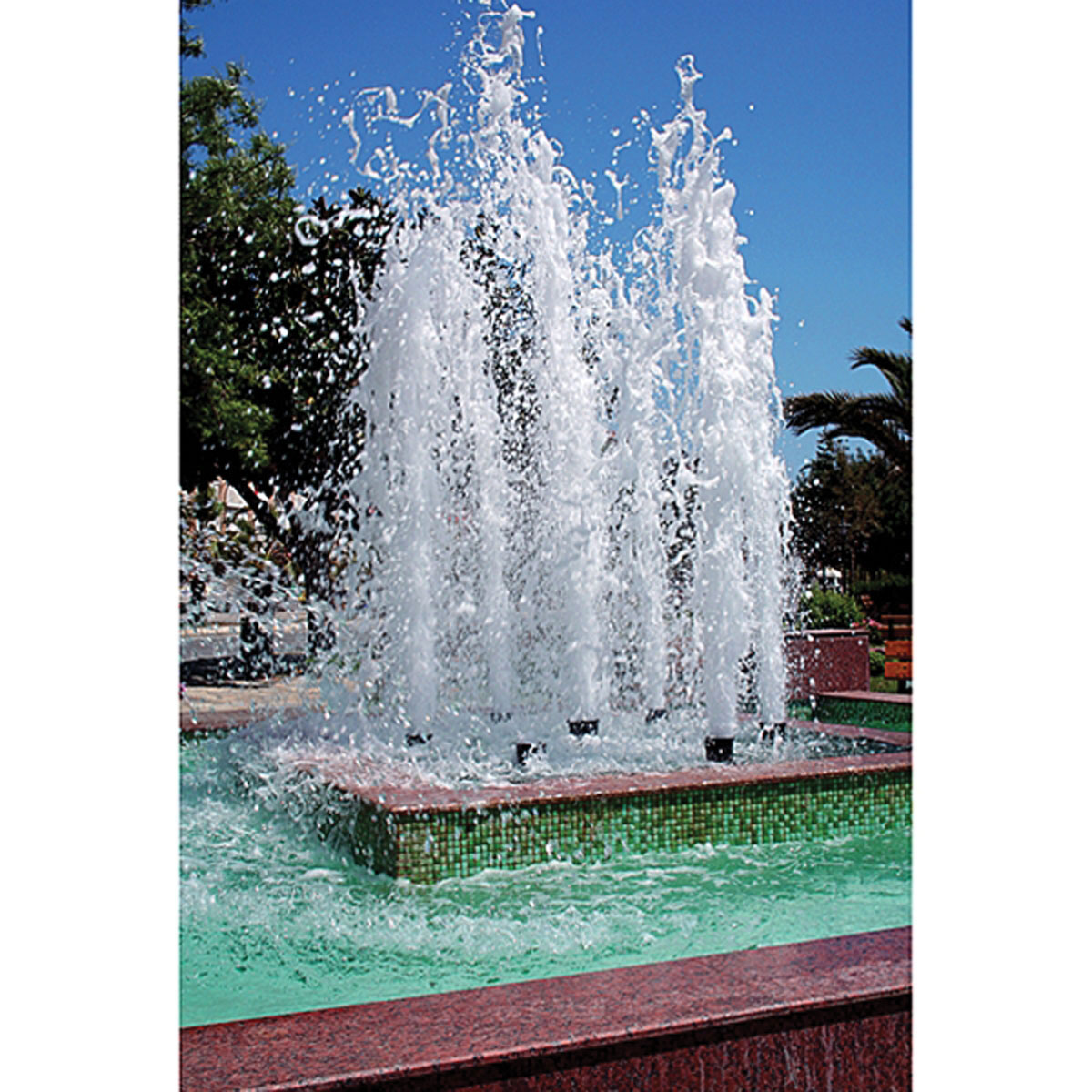

The Cascade brass fountain head has the most popular effect for large fountain water features. The nozzle mixes air into the water stream producing a highly visible and wind resistant spray.
The final height of your Cascade spray nozzle pattern and the diameter will depend on the pump flow and the size of the nozzle chosen. Ensure that the hose or PVC tubing that connects your pump to the nozzle is a sufficient diameter. Always try to use a pipe with the same diameter as the nozzle to minimize loss of flow from pipe friction.
- Brass construction
- 2" FIPT
The following chart is an approximate detailing of various spray heights with various pump flows at required head rating. Ensure your pump gives the recommended flow at the specified head (height).
| CASCADE FOUNTAIN NOZZLES | |||||
|---|---|---|---|---|---|
 | Display Height | HG/TG2 | |||
| GPM | Head | ||||
| 2' | 31.6 | 8' | |||
| 3' | 36.8 | 12' | |||
| 4' | 42.4 | 15' | |||
| 5' | 47.4 | 19' | |||
| 6' | 52.6 | 22' | |||
 | |||||
| 8' | 57.4 | 26' | |||
| 10' | 62.3 | 31' | |||
| 12' | 70.1 | 36' | |||
| Inlet | 2" | ||||
| Thread | FIPT | ||||
| Material | Brass | ||||
