3/4" (2' Bury) Yard Hydrant

(0) No Reviews yet

In Stock

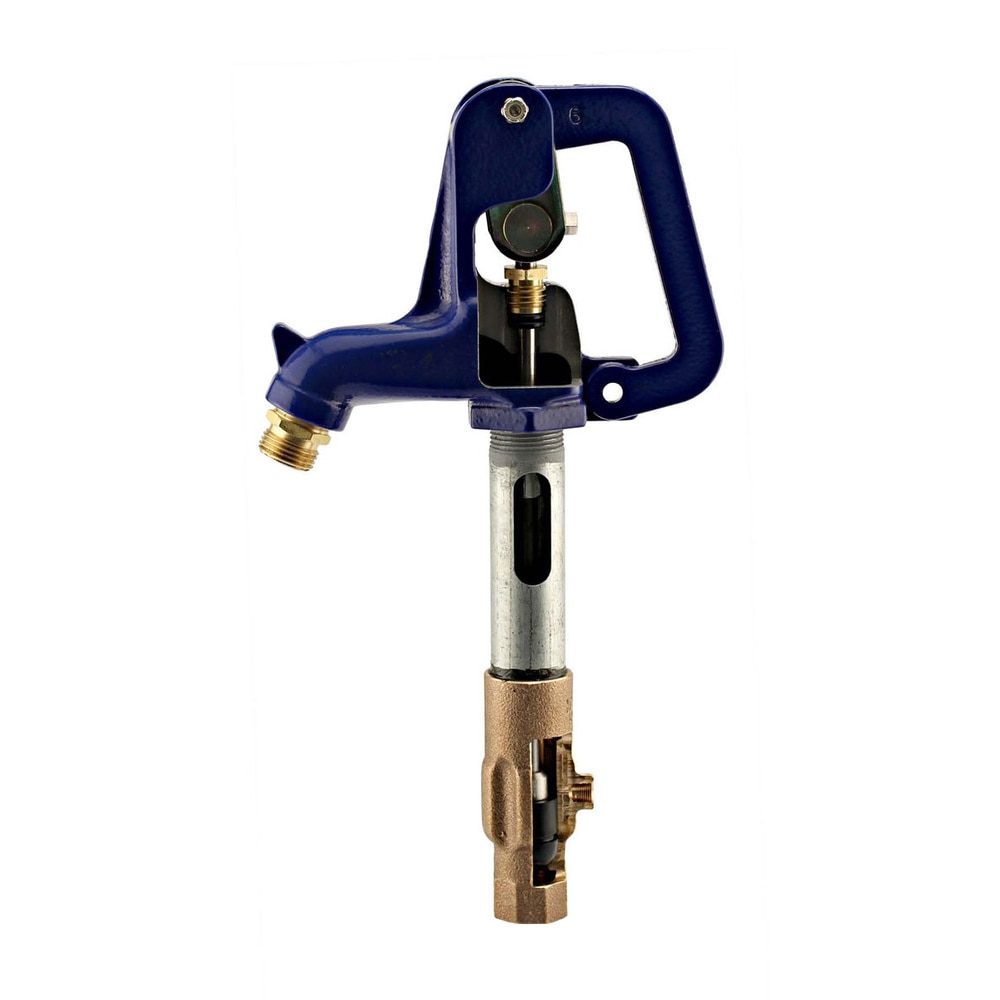

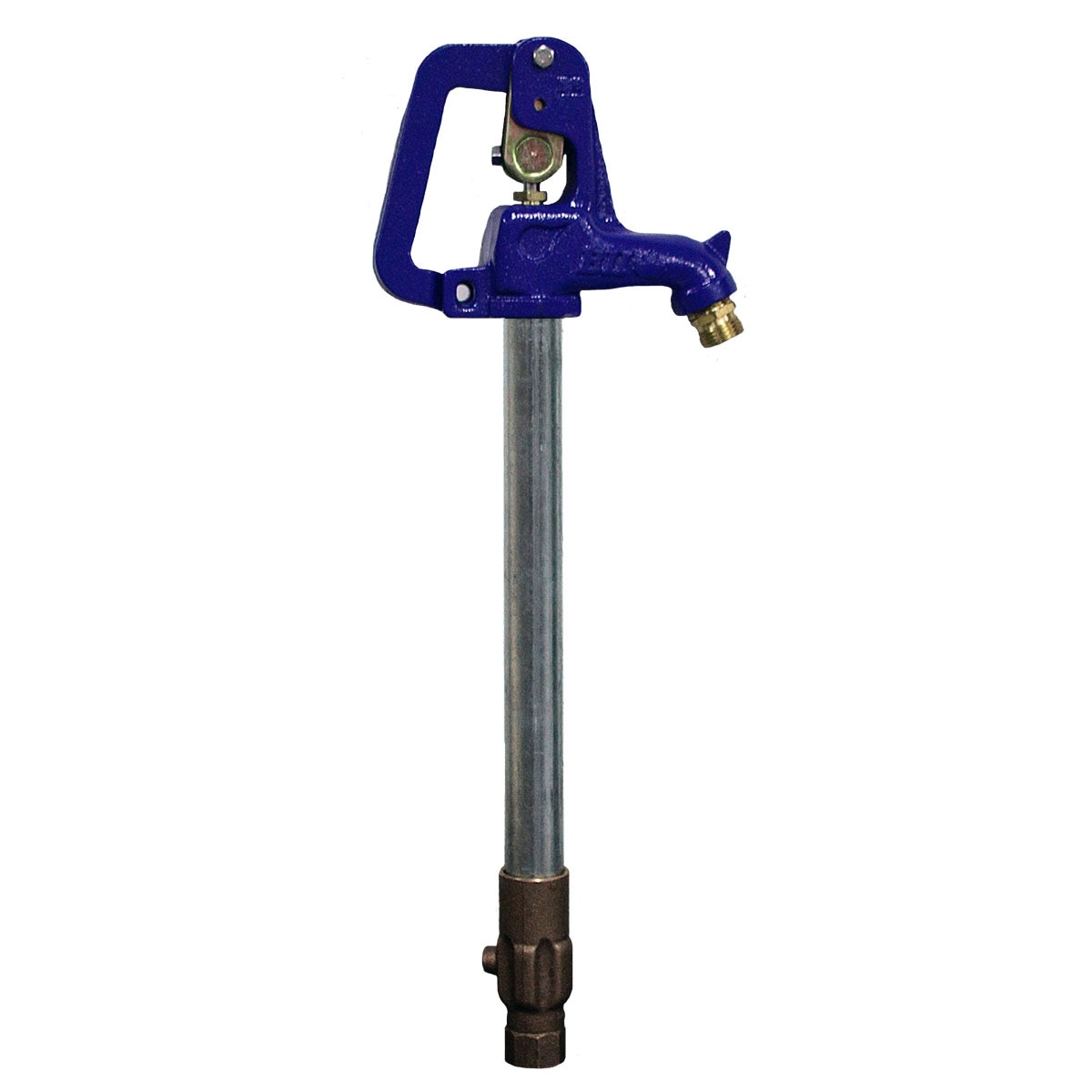

3/4" (2' Bury) Yard Hydrant

Yard hydrants provide running water for livestock, lawn and garden. Installed anywhere with pressurized water supply, a frost free valve operates below the frost line and all water drains from the pipe after closing, making them ideal for supplying water to unheated shops/sheds and barns. All yard hydrants can be easily maintained and repaired completely above ground, no digging required. Their design enables the entire inner parts assembly to be removed to replace worn parts after years of service. This is done simply by loosening the hydrant head - the inner parts swivel freely, so that the head connecting rod and plunger can be pulled out as a single unit.
  • Tough Heavy Duty Cast Iron Head with bucket hook has excellent flow characteristics, is tapped with a 3/4" FIPT outlet and comes complete with a removable 3/4" garden hose thread brass garden connector
  • Large Heavy Duty Handle has longer hand grip for comfortable operation. It can be held firmly in any position to regulate flow by means of a S.S. thumb bolt and has a locking eye allowing the hydrant to be pad-locked in the closed position.
  • Polished Stainless Steel operating rod reduces wear on the stem packing and provided maximum corrosion resistance.
  • Double O-ring Sealing System provides a positive seal between the hydrant head and operating rod. The O-Rings are easily replaced, a great advantage over yard hydrants that use stem packing which is very difficult to remove and clean out of the head casting.
  • One piece zinc plated pivot connector complete with a square head S.S. set screw allows for easy adjustment of the linkage
  • Double zinc plated draw straps provide excellent corrosion resistance; have smooth operation with very limited play in the linkage.
  • 1" Galvanized ASTM A53 Sch. 40 Stand Pipe (304 S.S. Sch. 40 pipe is available)
  • 3/8" Steel Connecting Rod & Coupling.
  • No Lead Bronze Valve Body offers superior flow rates, a self draining bleeder port (tapped 1/8 FIPT) prevents riser pipe and valve head from freezing, 3/4" FIPT.
  • One Piece Plunger Buna-N-Rubber Molded over Stainless Steel Insert with triple groove design ensures that there is no chance of the rubber detaching from the Stainless core. The self-lubricating rubber prolongs the life of the plunger.
  • Max Pressure 125 PSI
  • Max Temperature 120°F (48°C)
