Carvin 3/4 HP Magnum Pool Pump (115/230V)

SKU: JP-94030020
(0) No Reviews yet

On Back Order

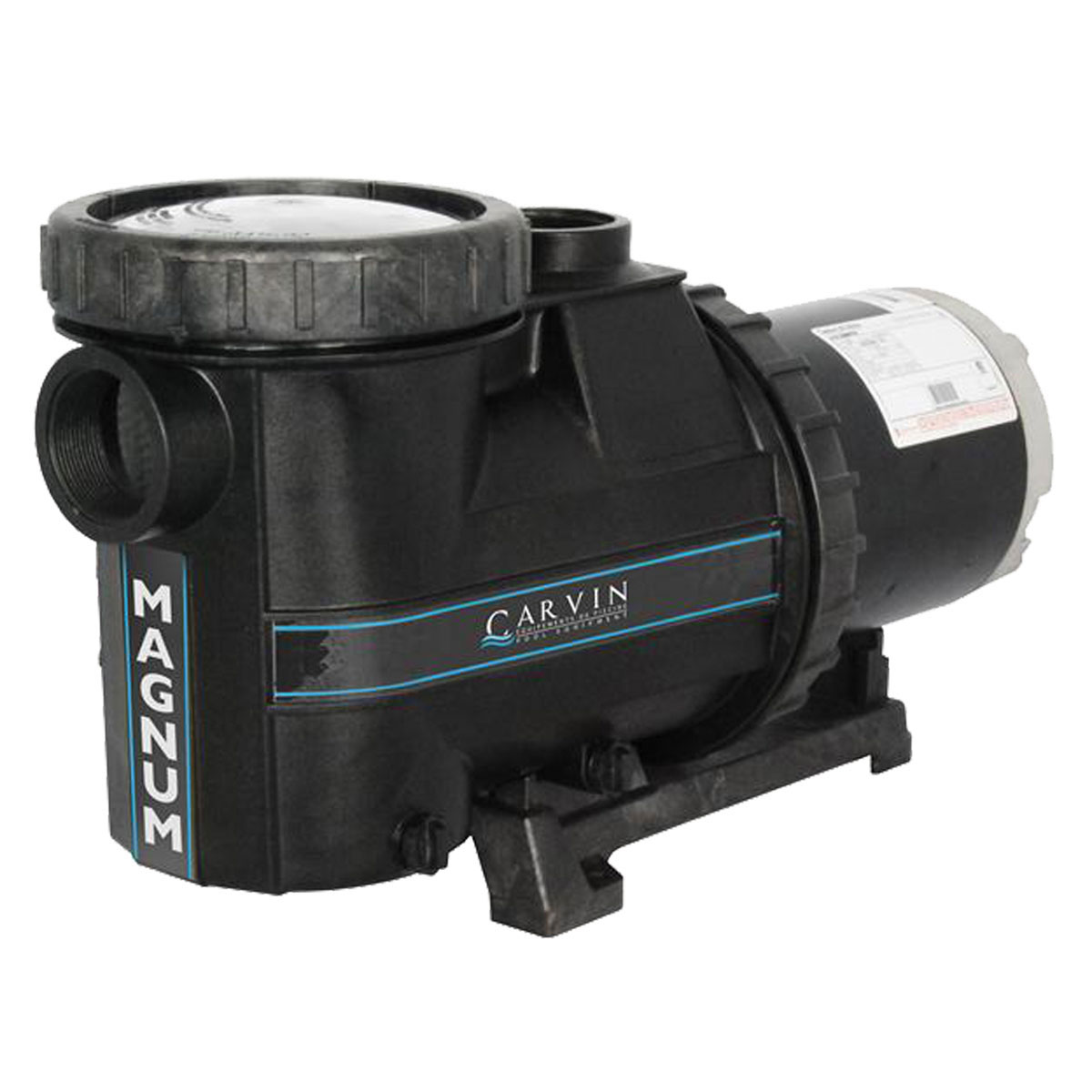

Carvin 3/4 HP Magnum Pool Pump (115/230V)

The Carvin Magnum 3/4 HP Inground Pump with Ring-Lok™ is an exclusive, efficient locking system that allows quick and easy access to all elements requiring maintenance without disturbing the plumbing fittings.

It features a floating washer between the closed impeller and the multi-valve diffuser that ensures improved efficiency and performance for maximum pressure and flow.

The Magnum's housing is molded from a single reinforced, corrosion-resistant thermoplastic piece with two drain plugs for easy winterization, and features a 183 cubic inch (3000 cm3) pre-filter. The Magnum's mechanical seal features identical ceramic and carbon surfaces, and all other components are made of BUNA-N rubber and stainless steel. The Magnum's seal is heat and leak resistant.

  • 3/4 HP Inground Pump
  • Quieter operation, Energy Efficient Motor
  • Built in base, Built in Influent Check Valve
  • One-piece case with two convenient drain plugs for winterizing. Built in unions for easy installation.
  • Carvin Pumps Higher suction port for faster self-priming.
  • 180 cu/in. strainer basket allows longer intervals between cleaning. Clear lid allows view.
  • Patented air-cooled heat sink allows pump to run dry without damage to shaft seal
  • Exclusive dual Ring-Lok™ design gives "tool free" access to strainer basket and pump internals
  • 208 cu. in. (3411 cm3) heavy-duty strainer basket with exclusive priming tube for superior priming capabilities
  • Exclusive flap prevents debris in the pump strainer, skimmer basket and filter from flowing back into the pool. The flap also prevents residual hot water in the heater from flowing into filter and causing damage to grids, valves, gaskets etc
  • Internal ribs in large strainer basket assure flow, even when filled with leaves and debris
  • One-piece case eliminates bolts and gaskets and provides for quiet operation, yet no tools are required for disassembly
  • Floating eye seal between closed impeller and diffuser maximizes efficiency
  • Maximum water temperature 104 °F (40 °C)
  • Energy saver motor standard on all single speed pump units
  • 5" basket
  • 115/230V
  • 2" Unions
  • Unconditional 1 Year Warranty Against Seal Failure
  • 1 Year Manufactures Warranty
  • Jacuzzi Item Number: 94030020
  • Voltage (V): 115/230
  • Power (HP): 3/4hp
  • Weight (LBS/kg): 33 (15)
