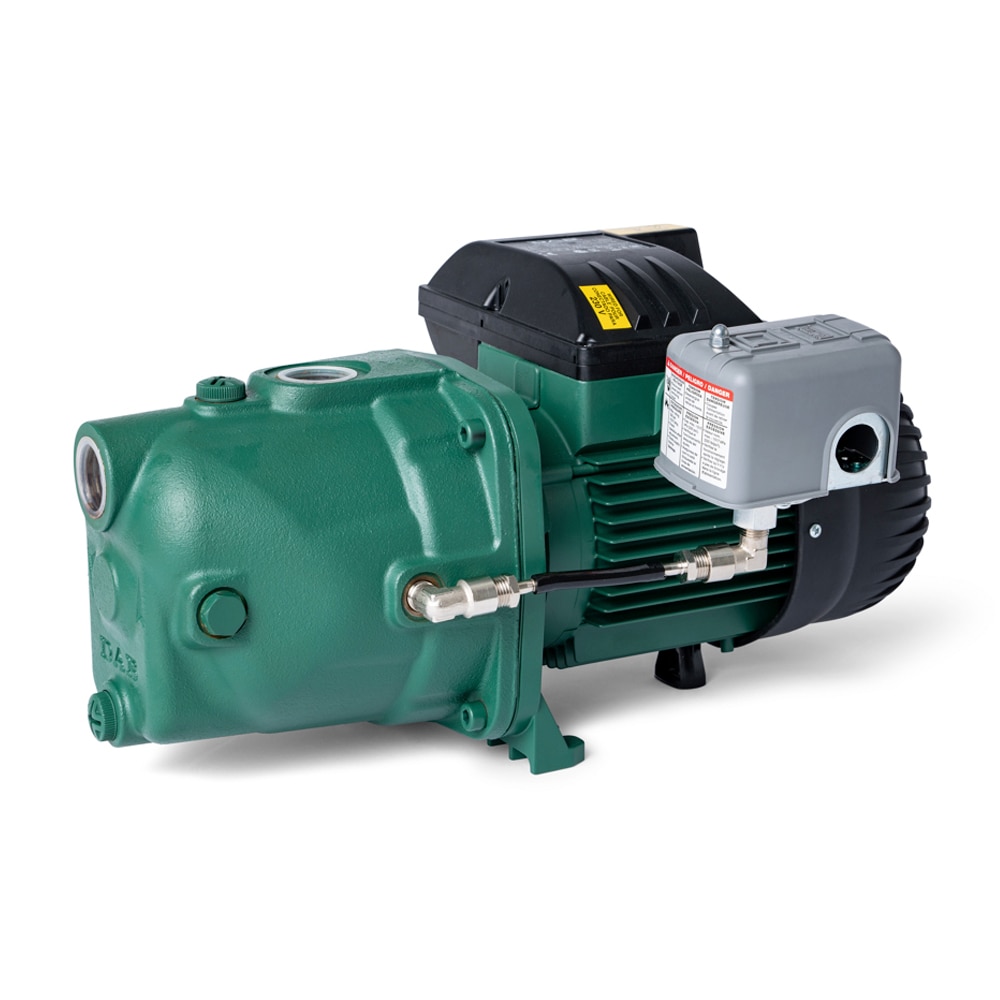

DAB 1/2 HP Jet 50 PS - Self Priming Jet Pump


DAB JET Self-priming centrifugal pumps for domestic use, also able to run in the presence of air bubbles, with cast-iron body. Optimal for residential pressure boosting, small-medium irrigation systems and gardening applications.


Applications:
  • Self priming centrifugal pump with optimal liquid aspiration even in the presence of air bubbles.
  • Suitable for pumping water with low levels of sandy impurities.
  • Especially used in domestic water supply installations. Suitable for small farms and gardening, small scale industrial services and where self priming is necessary.


Technical Data:

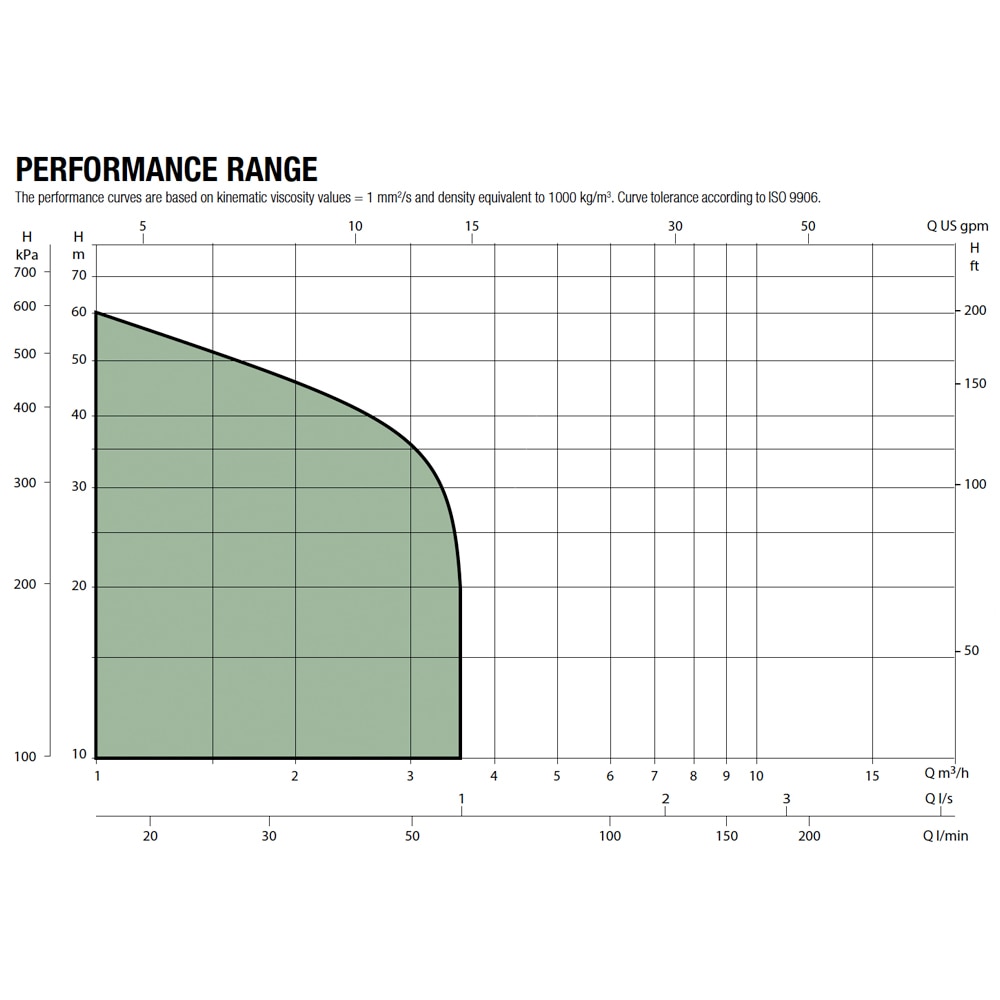

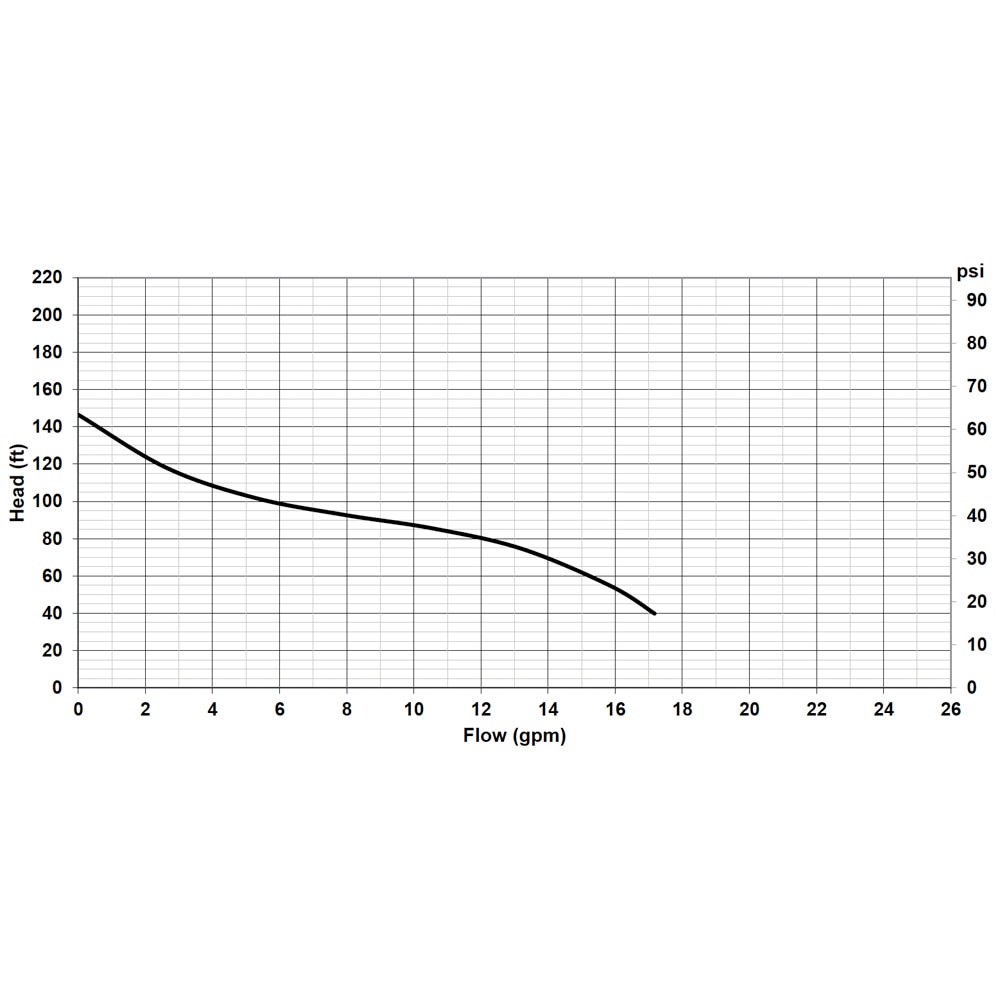

  • Operating Range: Capacity up to 23 gpm; head up to 213 ft (92 psi)
  • Liquid Quality Requirements: Clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral.
  • Liquid Temperature Range: From 32°F to +95°F for domestic use. For other use: from 32°F to +104°F

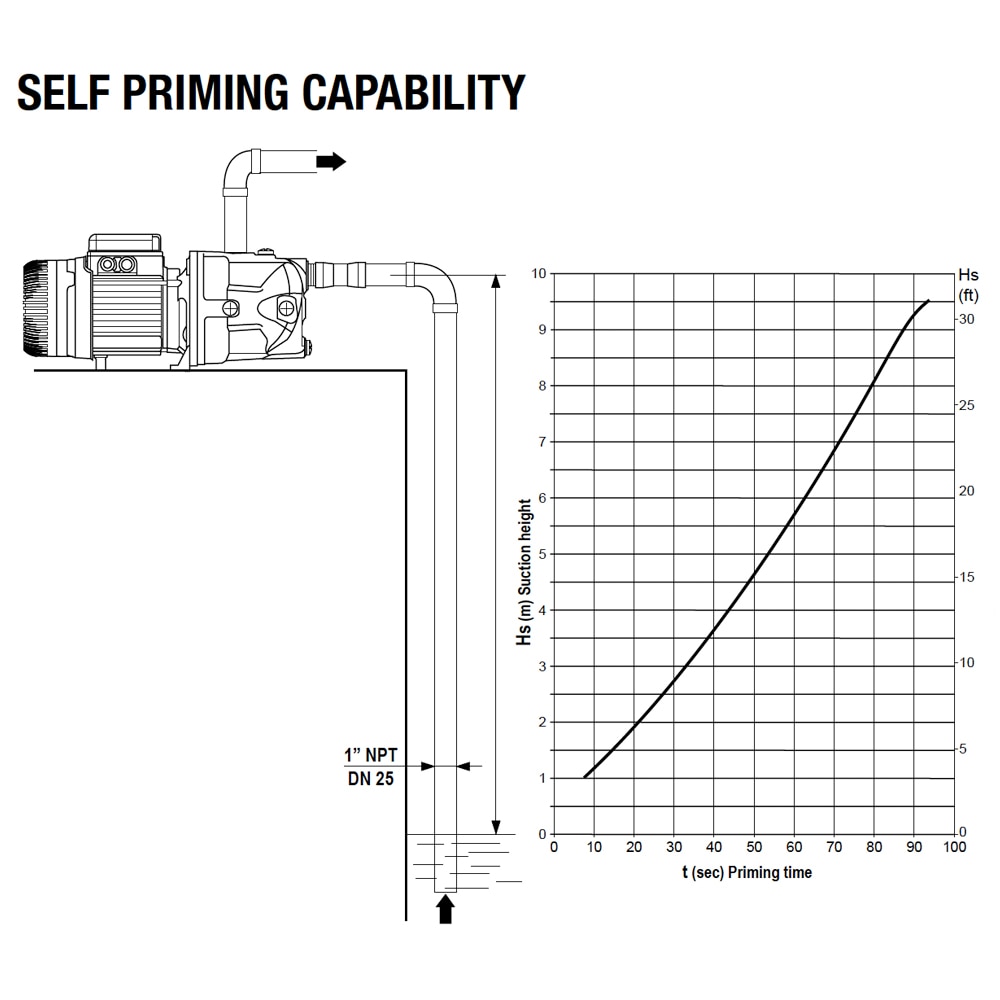

  • Maximum Suction Depth: 29 ft
  • Maximum Ambient Temperature: +122°F
  • Maximum Pressure: 115 PSI
  • Motor: 1/2HP
  • Standard Input Voltage: Single phase 115/230 V - 60 Hz Dual Voltage
  • Insulation class: F
  • Installation: Horizontal fixed position
POWER SUPPLY 60 HzkWHPSERVICE FACTOR

RPMIN AMPS
110V230V
1x110-230 V ~0.61/21.634008.214.22
