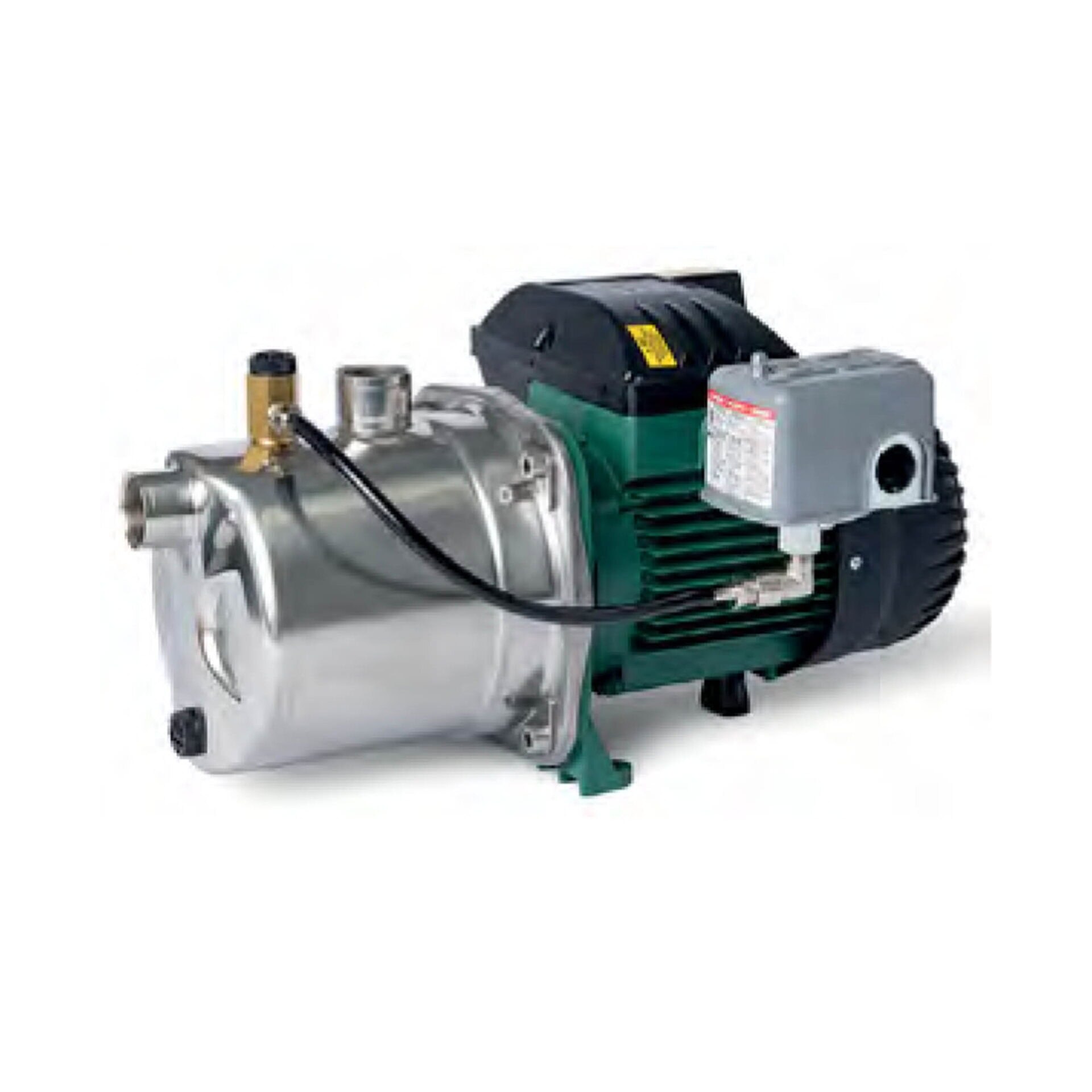

DAB 1 HP Jet 100 PS – Self-Priming Jet Pump (Stainless Steel)
SKU: DAB-102648150
DAB 1 HP Jet 100 PS – Self Priming Jet Pump (Stainless Steel)
DAB JET 100 self-priming centrifugal pumps for domestic use, also able to run in the presence of air bubbles, with stainless steel pump body. Ideal for residential pressure boosting, small-scale irrigation systems, and garden water supply.
Applications
- Self-priming centrifugal pump with excellent suction capabilities, even when air is present in the fluid.
- Suitable for pumping clean water with low levels of sandy impurities.
- Commonly used in domestic water supply systems, including shallow wells and pressure boosting setups.
- Ideal for small-scale irrigation, gardening, and light industrial services where consistent self-priming is required.
Technical Data:

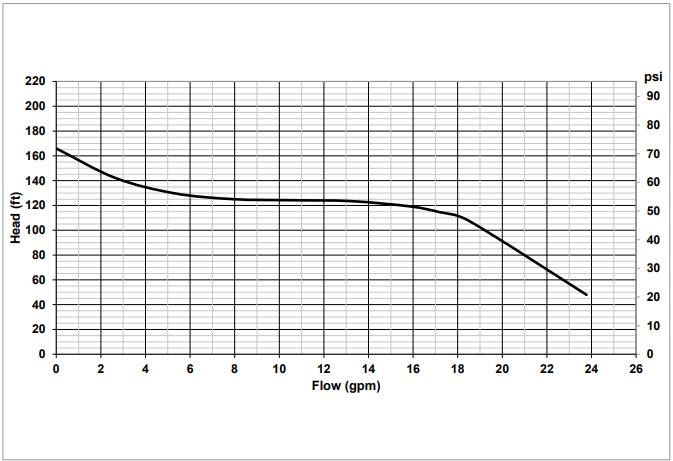

- Operating Range: Capacity up to 23 gpm; head up to 213 ft (92 psi)
- Liquid Quality Requirements: Clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, non-crystallized and chemically neutral
- Liquid Temperature Range: From 0°C to +35°C for domestic use. For other use: from 0°C to +40°C
- Maximum Suction Depth: 29 ft
- Maximum Ambient Temperature: 50°C
- Maximum Pressure: 115 PSI
- Motor: 1.0 HP (0.75 kW)
- Standard Input Voltage: Single phase 230 V - 60 Hz
- Amp Draw: Approximately 4.5 A
- Insulation Class: F
- Installation: Horizontal fixed position
