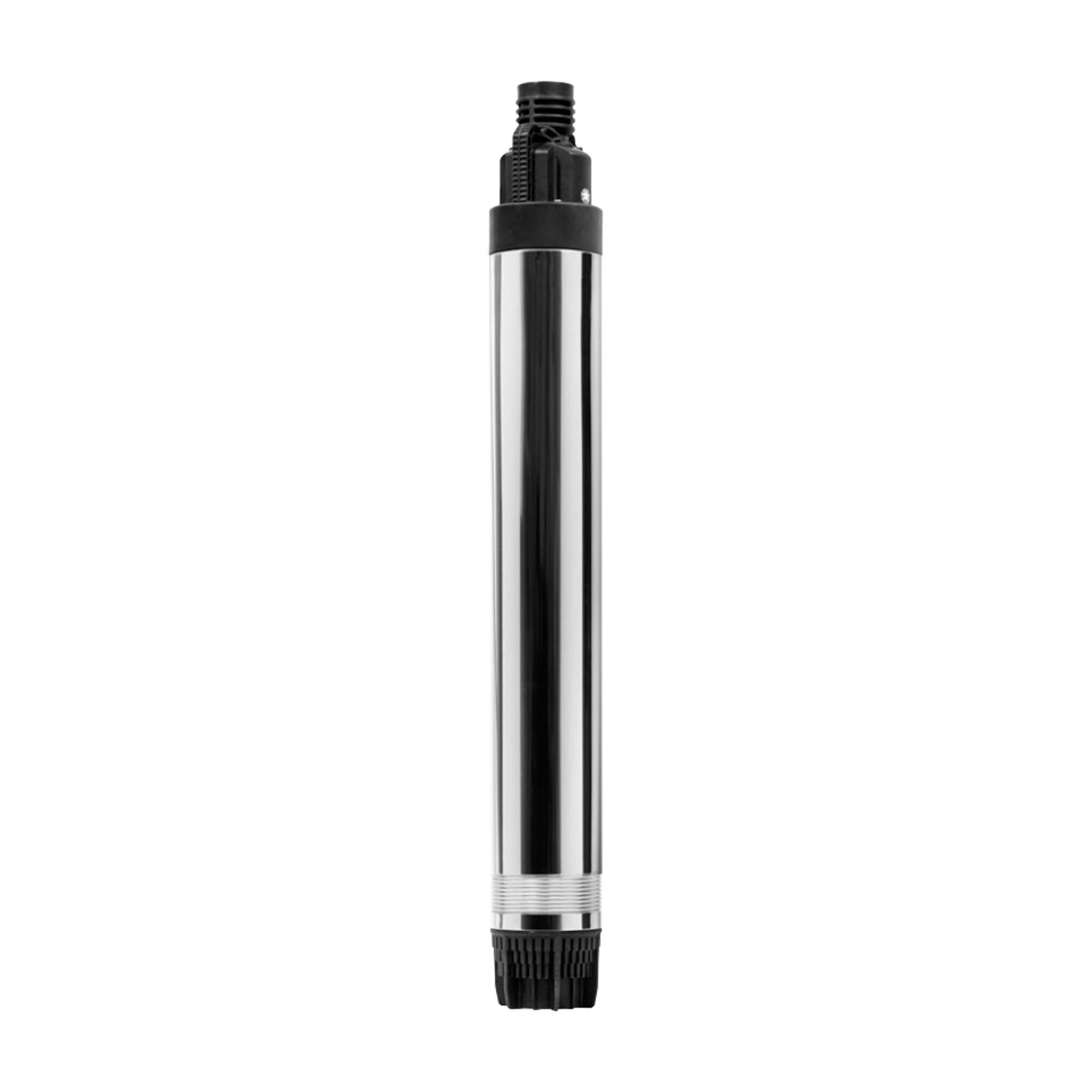

DAB BHP 750 – 4" Submersible Pump, 0.75 HP, 115V
SKU: DAB-60201432
DAB BHP 750 – 4" Submersible Pump, 0.75 HP, 115V
Engineered for high-performance water delivery in cisterns, tanks, and wells, the DAB BHP 750 offers reliable pressure boosting and long-lasting durability. With a multi-impeller design and corrosion-resistant construction, this pump is ideal for residential, agricultural, and commercial applications where consistent water flow is essential.
APPLICATIONS
- Domestic water supply from cisterns or tanks
- Rainwater harvesting systems
- Agricultural irrigation and pressure boosting
- Commercial water transfer and pressurization
FEATURES
- Multi-impeller design for high pressure output and efficient water delivery
- 0.75 HP motor, 115V or 230V configurations
- 1" discharge outlet for standard plumbing compatibility
- Corrosion-resistant materials for long-term submersible use
- Compact 4" diameter fits most cisterns, tanks, and wells
- No flow sleeve required for installation
Technical Data
- Flow Rate: up to 27 GPM
- Maximum Head: 180 feet
- Maximum immersion depth: 49 feet
- Maximum Pressure: Approx. 78 PSI at max head
- Liquid Quality Requirements: Clean water only; not suitable for solids or effluent
- Liquid Temperature Range: 0°C to 35°C
- Maximum Ambient Temperature: 40°C
- Standard Input Voltage: 115V, Single-phase (60Hz)
- Amp Draw: 6.2 A (115V)
- Power cable: 10 Feet
- Installation: Vertical submersion in cisterns, tanks, or wells; no flow sleeve required
- Certification: CAN/CSA C22.2 No. 108-14 - Liquid Pumps
UL 778- 6th Ed. - Motor Operated Water Pumps
