DAB DIVERTRON 900
SKU: DAB-60217127H
DAB DIVERTRON 900

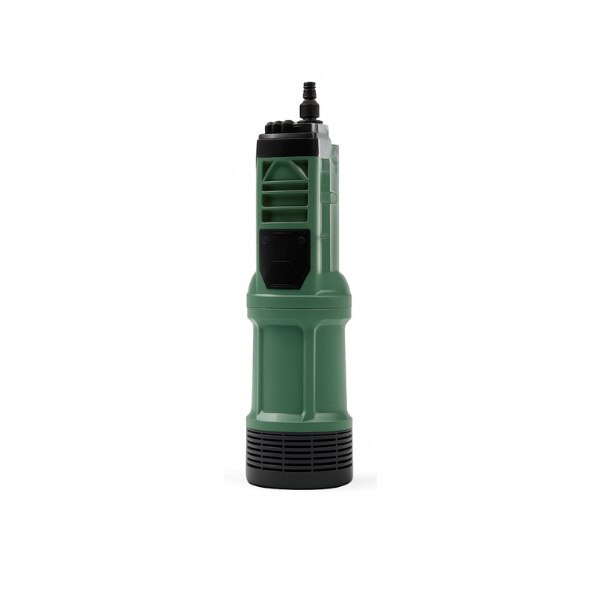

The DAB Divertron 900 is a fully submersible, multistage pump designed for clean water applications such as rainwater harvesting, garden irrigation, and pressure boosting. It features integrated electronics for automatic start/stop operation, a built-in pressure switch and flow sensor, and delivers up to 147.6 feet of head for dependable pressure performance. With a 230V single-phase motor and standard NPT connections, this compact unit offers quiet operation and straightforward installation in residential systems. Ideal for setups where consistent flow and ease of use are key, the Divertron 900 provides reliable, low-maintenance performance.
Applications
- Rainwater harvesting systems
- Garden and landscape irrigation
- Domestic water supply from tanks, cisterns, or shallow wells
- Pressure boosting for residential fixtures
- Pump integration in compact or enclosed water storage setups
Features & Technical Data
- Submersible multistage pump: Designed for clean water applications such as rainwater harvesting, garden irrigation, and pressure boosting.
- Integrated electronic controller: Automatically starts and stops the pump based on system pressure demand.
- Built-in pressure switch and flow sensor: Enables autonomous operation without external control panels.

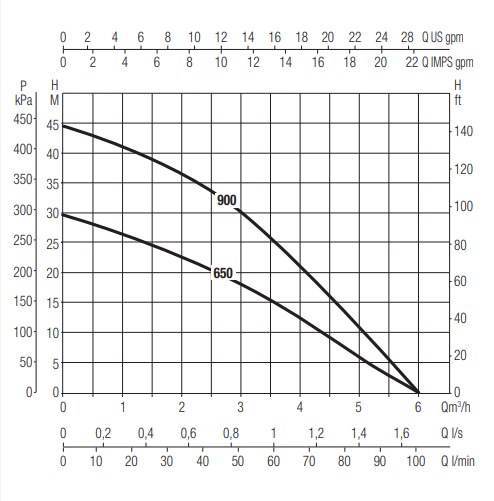

- Maximum flow rate: Up to 23.8 GPM (90 L/min)
- Maximum head: 147.6 feet (45 meters)
- Impellers: Technopolymer, corrosion-resistant and suitable for potable water.
- Pump body: Durable technopolymer construction for long-term submersion.
- Maximum immersion depth: 39.4 feet (12 meters)
- Liquid temperature range: 0°C to 35°C
- Liquid quality requirements: Clean, non-abrasive, non-viscous, chemically neutral
- Connections: 1" threaded outlet with four-section reducer fitting
- Pump diameter: 6.3 inches - fits inside most cisterns and tanks
- Power supply: Single-phase, 230V, 60Hz motor
- Power cable: 49.2 feet (15 metres) H07RNF cable with standard plug
- Protection class: IP68 - fully waterproof for submersion
- Motor insulation: Class F - suitable for continuous operation
- Maximum starts per hour: 20 - protects motor from rapid cycling
- Installation type: Fixed or movable, vertical position only
- Noise level: Very quiet operation, ideal for residential use
- Float switch: Not included — must be added externally if needed
- Dry-run protection: Not built-in — requires external safeguard or careful system design
