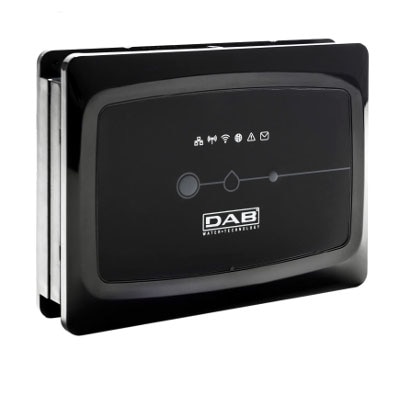

DAB DCONNECT Box - For ESYBOX

D.Connect is the new DAB cloud service that allows you to remotely control your installations, in real time and wherever you are. It is possible to control pressurization and water management pumps, and heating or air conditioning circulators.

The D.Connect Box is required for connecting the pumps to the Internet. Thanks to this service, the pumps can access the I.o.T., or better, the I.o.P. (Internet of Pumps!).

D.Connect Box must be connected to the pumps to be controlled (via wireless or cable) and to a modem/router to have access to the Internet.

DConnect Box power supply: 12V DC, Current: 1.5A
Power supply unit supplied: input 100-240VAC, with interchangeable plugs for the European, UK Australian and USA markets.
DConnect Box protection class: IP20
Connection to the Internet:
- Wi-Fi: Supports 802.11 b/g/n, WPA-PSK/WPA2-PSK encryption. Frequency 2.4 GHz
- Ethernet: Compliant with IEEE802.3 10Base-T and 100Base-TX standards
Assembly: DIN rail using the accessory supplied, or wall-mounted installation using the wall plugs supplied.
Maximum number of devices: The maximum number of pumps that can be controlled with DConnect Box is 8.
I/O external connections:
- 4 non opto-coupled inputs with voltage control
- 2 relay outputs
REQUIREMENTS:
DAB DConnect APP requirements:
Smartphone or Tablet:
• Android 7 or higher.
• IOs 11 or higher.
• Access to the Internet.
Network requirements:
• Permanent direct Internet connection (no login portals).
• 2.4Ghz Wi-Fi and/or LAN modem/router with active DHCP service.
• In case of Wi-Fi connection, good quality Wi-Fi signal at the DConnect Box installation area. In case of weak signal, we recommended the use of a Wi-Fi signal repeater.
PC requirements:
• Web Browser supporting Java script (e.g. Microsoft Edge or Firefox version 7.0 or higher, or Google Chrome).
• Access to the Internet.
