DAB Divertek 650
SKU: DAB-60217159H
DAB Divertek 650

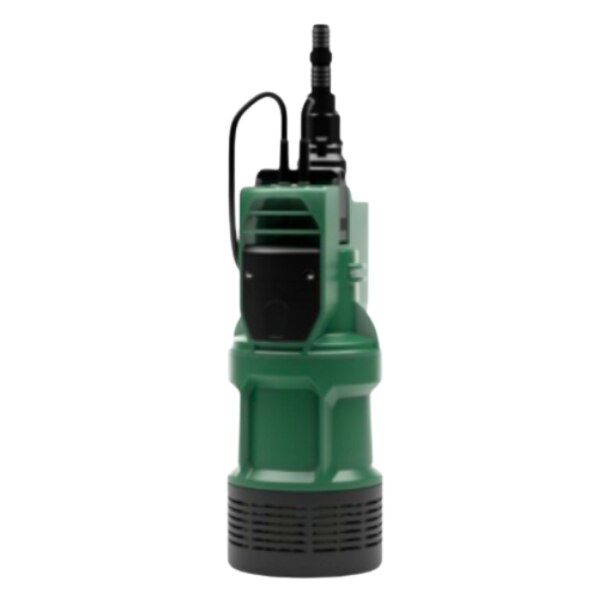

The Divertek 650 is a compact, multi-impeller submersible pump designed for clean water applications such as rainwater harvesting, garden irrigation, and residential pressure boosting. Powered by a 0.42 kW motor and equipped with a 49-foot power cable, it delivers reliable performance with a maximum head of approximately 98 feet. The automatic model includes a float switch for dry-run protection, making it ideal for use in cisterns and water storage tanks. No control panel is required, and its slim profile allows for easy installation in confined spaces.
Features & Technical Data
- Submersible multistage pump: Designed for clean water applications such as rainwater harvesting, garden irrigation, and pressure boosting.
- Dry-run protection: Automatic shutoff via float switch prevents damage when water is unavailable.

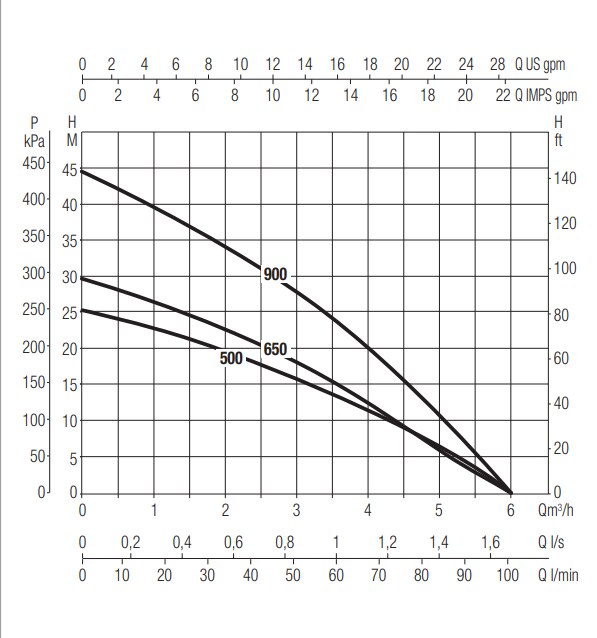

- Maximum flow rate: Up to 26.4 GPM (100 L/min)
- Maximum head: 98 feet (30 meters)
- Impellers: Technopolymer, multi-stage
- Pump body: Technopolymer with stainless steel intake screen
- Maximum immersion depth: 39 feet (12 meters)
- Liquid temperature range: 0°C to 35°C
- Liquid quality requirements: Clean water, free of solids or abrasive particles
- Connections: 1" NPT discharge
- Pump diameter: 5.7 inches (145 mm)
- Power supply: Single-phase, 115V, 60Hz motor
- Power cable: 50 feet (15 meters), H07RN-F
- Protection class: IP68 - fully waterproof for submersion
- Motor insulation: Class F - suitable for continuous operation
- Installation type: Vertical, fully submerged
- Float switch: Included on automatic version
- Maintenance access: Not serviceable; sealed motor unit
