DAB Divertron 650
SKU: DAB-60217130H
DAB Divertron 650

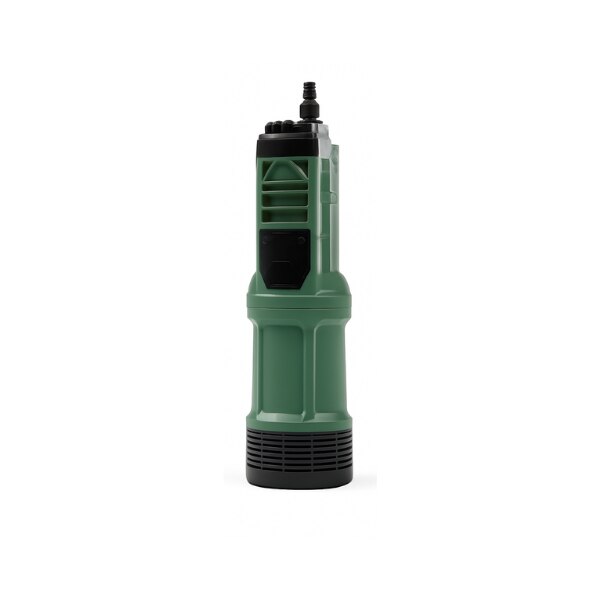

The DAB Divertron 650 is a fully submersible, multistage pump with integrated electronics for automatic operation. Designed for clean water use, it features a built-in controller with pressure switch and flow sensor, and delivers a maximum head of approximately 131 feet for reliable pressure performance. With a 115V motor and NPT connections, this compact, plug-and-play unit is ideal for residential installations where consistent flow and quiet operation are essential. The NEMA 5 plug and 49-foot power cable ensure easy setup in North American systems.
Applications
- Rainwater harvesting systems
- Garden and landscape irrigation
- Domestic water supply from tanks, cisterns, or shallow wells
- Pressure boosting for residential fixtures
- Pump integration in compact or enclosed water storage setups
Features & Technical Data
- Submersible multistage pump: Designed for clean water applications such as rainwater harvesting, garden irrigation, and pressure boosting.
- Enhanced integrated electronic controller: Automatically starts and stops the pump based on pressure demand, with improved responsiveness and protection.
- Built-in pressure switch and flow sensor: Enables autonomous operation without external control panels.
- Dry-run protection: Not included — external safeguard recommended if dry-run risk is present.

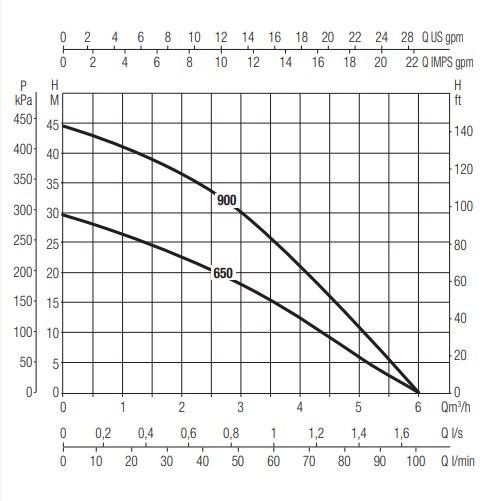

- Maximum flow rate: Up to 18.5 GPM (70 L/min)
- Maximum head: 131 feet (40 meters)
- Impellers: Technopolymer, corrosion-resistant and suitable for potable water.
- Pump body: Durable technopolymer construction for long-term submersion.
- Maximum immersion depth: 39.4 feet (12 meters)
- Liquid temperature range: 0°C to 35°C
- Liquid quality requirements: Clean, non-abrasive, non-viscous, chemically neutral
- Connections: 1" threaded outlet with four-section reducer fitting
- Pump diameter: 6.3 inches - fits inside most cisterns and tanks
- Power supply: Single-phase, 115V, 60Hz motor
- Power cable: 49.2 feet (15 metres) H07RNF cable with standard plug
- Protection class: IP68 - fully waterproof for submersion
- Motor insulation: Class F - suitable for continuous operation
- Maximum starts per hour: 20 - protects motor from rapid cycling
- Installation type: Fixed or movable, vertical position only
- Noise level: Very quiet operation, ideal for residential use
- Float switch: Not included — must be added externally if needed
- Maintenance access: Standard access; no enhanced capacitor compartment like the X 900
