DAB Jetcom 62 Self-Priming Centrifugal Pump

SKU: DAB-60119498
(0) No Reviews yet
$456.00

In Stock

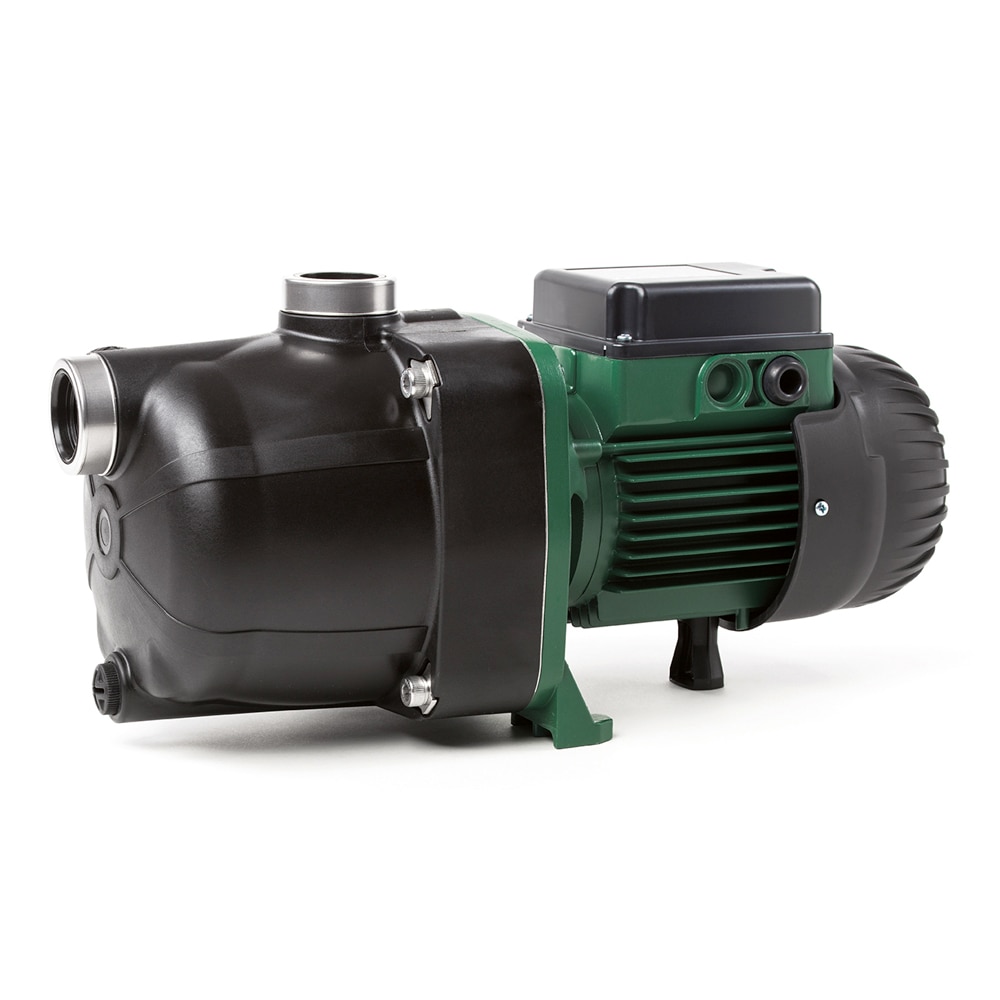

DAB Jetcom 62 Self-Priming Centrifugal Pump



DAB JETCOM self-priming centrifugal pump for domestic use, also able to run in the presence of air bubbles, with technopolymer body. Optimal for residential pressure boosting, small to medium irrigation systems and gardening applications.

Applications:
  • Self priming centrifugal pump with excellent suction capacity even in the presence of air bubbles.
  • Suitable for pumping water with low levels of sandy impurities.
  • Especially used in domestic water supply installations. Suitable for small farms and gardening, small scale industrial services and where self priming is necessary.


Technical Data:
  • Operating Range: From 0.6 to 5.4 m3/h with head up to 54 metres.
  • Liquid Quality Requirements: Clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral.
  • Liquid Temperature Range: From 0°C to +35°C for domestic use.
  • Maximum Ambient Temperature: +40°C
  • Maximum Operating Pressure: 6 bar (600 kPa)
  • Maximum Suction Depth: 8 metres.
  • Installation: Fixed in a horizontal position.
  • Special Executions on Request: Alternative voltages and/or frequencies.
  • Motor Protection Rating: IP 44
  • Terminal Block Protection Rating: IP 55
  • Insulation Class: F
  • Standard Input Voltage: Single phase 220/240V / 50 Hz
POWER SUPPLY 50 HzP1 MAX kWP2 NOMINAL
In A
CAPACITOR
kWHPμFVC
1x220-240 V ~0.720.440.63.1212.5450
