DAB Nova 200 MNA Submersible Pump

SKU: DAB-60200869H
(0) No Reviews yet
$282.96

In Stock

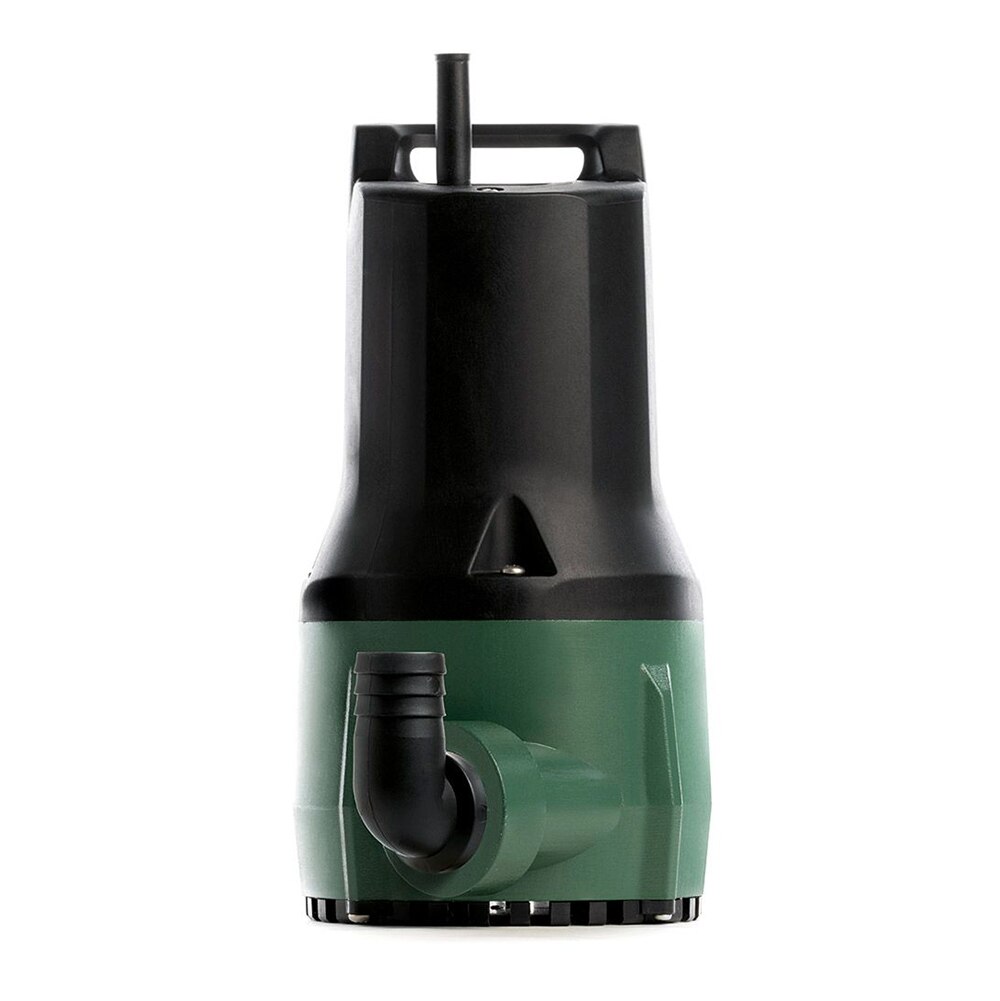

DAB Nova 200 MNA Submersible Pump (Non Automatic)


DAB Nova is a submersible pump for draining clear water in domestic and residential environments. Completely redesigned in 2019 for the forty years of sales, it is now even more durable, reliable, and ergonomic in use. Nova can also be used for emptying tanks or cisterns.



CONSTRUCTION FEATURES OF THE PUMP
The pump body, the impeller and the suction grille are in technopolymer. Robust and reliable with triple sealing in oil bath. The pump allows the suction of the liquid up to the minimum level of 10 mm and the possibility of dry operation up to 1 minute.

CONSTRUCTION FEATURES OF THE MOTOR
Continuous duty asynchronous submersible motor. Stator inserted in a hermetic stainless steel casing and rotor mounted on oversized ball bearings. Thermal protection incorporated in all single-phase versions. The motor is in AISI 304 stainless steel and the shaft is in AISI 431 steel for greater resistance to corrosive attacks.
  • Flow rate minimum and maximum: from 4.40 gal/min to 70.45 gal/min (1 m3/h to 16 m3/h)
  • Head up to: 33.5 ft (10.2 m)
  • Maximum immersion depth: 23.0 ft (7 m)
  • P1 Max: 0.4 kW
  • P2 Nominal: 0.2 kW (0.3 HP)
  • Type of pumped liquid: clear water or rainwater
  • Free passage: 5 mm or 10 mm (depending on the model)
  • Minimum intake level: 8mm
  • Supported liquid temperature min. and max.:
    from +0 C a +35 C for domestic use
    from +0 C a +50 C for other use
  • Class of protection: IP 68
  • Motor insulation class: F
  • Impeller construction material(s): technopolimer
  • Single phase power input: 115V 60 Hz
  • Possible type of installation: fixed or portable in a vertical position
ModelPOWER INPUT
60 Hz
P1 MAX kW
P2 NOMINAL
In A
CAPACITOR
kW
HP
μFVc
180M1X120 V~0.30.10.22.912.5250
200M1X120 V~0.40.20.33.8
20
250
600M1X120 V~0.70.50.66.4
20250

Modelm³/h
0
3691215
l/min
0
13.2
26.4
39.6
52.8
66.0
l/min
0
50
100
150
200
250
180MH (m)53.2----
200MH (m)7.15.64.22.81.5-
600MH (m)10.497.86.75.33.5
