DAB Nova Up 300 MNA
SKU: DAB-60164181

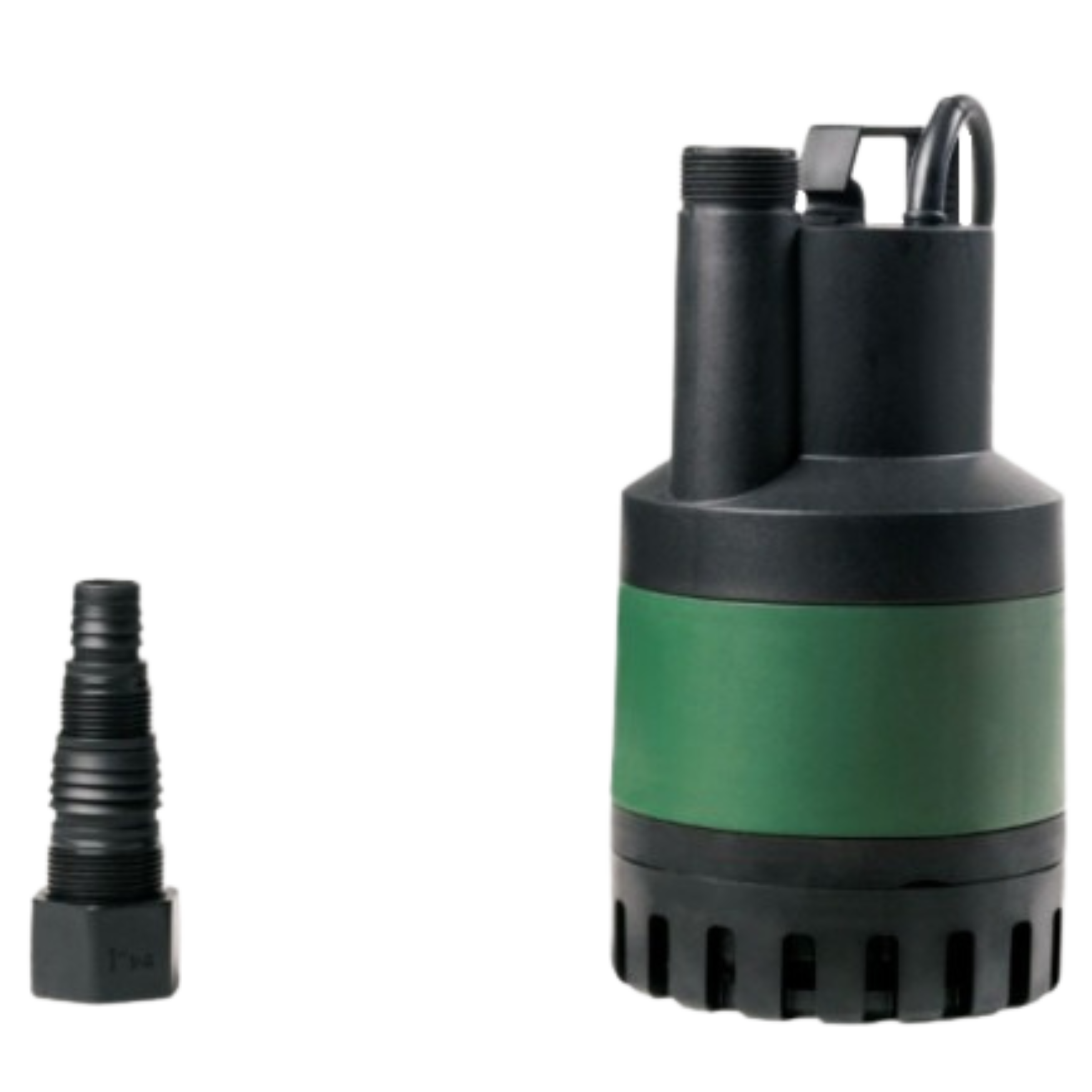

DAB NOVA UP 300 MNA (Non Automatic)
The DAB NOVA-UP submersible pump has a vertical manual outlet with removable filter for suction up to 2-3 mm. Features that make NOVA UP a powerful pump with versatile installation options. The pumps can deliver liquids with solids up to a maximum size of 10 mm. Pump housing, impeller, cap and inlet grill made of technopolymer. The motor, rotor shaft and screws made of stainless steel. Triple O-ring seal with intermediate oil chamber. Asynchronous submersible motor designed for continuous operation. Stator in a sealed stainless steel housing. Rotor mounted on ball bearings, lubricated and oversized designed for continuous operation. Integrated thermal circuit breaker and capacitor.
The DAB NOVA-UP submersible pump has a vertical manual outlet with removable filter for suction up to 2-3 mm. Features that make NOVA UP a powerful pump with versatile installation options. The pumps can deliver liquids with solids up to a maximum size of 10 mm. Pump housing, impeller, cap and inlet grill made of technopolymer. The motor, rotor shaft and screws made of stainless steel. Triple O-ring seal with intermediate oil chamber. Asynchronous submersible motor designed for continuous operation. Stator in a sealed stainless steel housing. Rotor mounted on ball bearings, lubricated and oversized designed for continuous operation. Integrated thermal circuit breaker and capacitor.
Outlet: vertical 1” ¼ F.
Operating range: from 1 to 15 m3 /h with head up to 10 metres.
Liquid temperature range: from 0 °C to +35 °C for domestic use. Pumped liquid: dirty water without fibres.
Minimum draught depth: 60 mm
Max. immersion depth: 7 metres.
Installation: vertical, fixed or portable.
Protection class: IP 68.
Insulation class: F.
