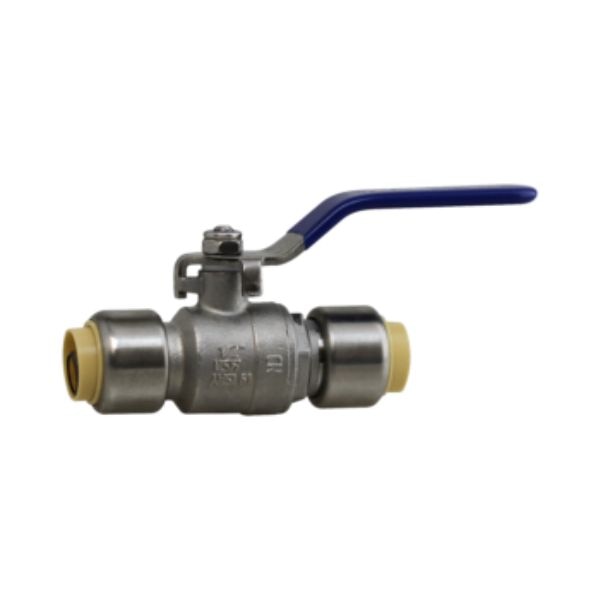

Ball Valve 1/2" Stainless Steel Push-Fit
SKU: SS-PFBV05
Ball Valve 1/2" Stainless Steel Push-Fit
Stainless Steel Push Fit Ball Valves are designed for use on copper, CPVC, PEX PE-RT & HDPE piping in plumbing and hydronic heating systems. Approved for use in both underground and behind- the-wall applications (with proper wrapping to prevent corrosion). Eliminates need for soldering, crimping, or solvent welding, making them perfect for repairs in wet, hazardous or hard-to-reach locations. Valves come complete with stiffeners for PEX, PE-RT & HDPE piping, which can be removed for copper installations. Additionally, these valves are reusable and easily disassembled using the plastic disconnect tool.
Features -
- Ball Material - Stainless Steel
- Size - 1/2"
- Handle Type - Locking
- Design - Full Port
- Seat Material - PTFE
- Connection Type - Push Fit
- Handle Material - 304 SS / PVC Sleeve
- Primary Material - 304 Stainless Steel
- Temperature Range - 33.8°F (1°C) to 200°F (93°C)
- Maximum Pressure Rating - 300 PSI CWP at 100°F (37.8°C); 200 PSI at 200°F (93°C)
- Stem Packing Material - Nitrile Rubber
- Port Size - 0.56 INCH
Certifications -
- IAPMO/ANSI Z1157
- No Lead
- NSF / ANSI 61 & 372
Dimensions -
- Width - 1.11 in
- Height - 1.65 in
- Length - 3.31 in
- Weight - 0.43 lb.
