FPS 1 HP Self Priming Pump End Only (FBSE100K)
SKU: FRA-92925010
FPS 1 HP Self Priming Pump End Only (FBSE100K) (9292 5010)

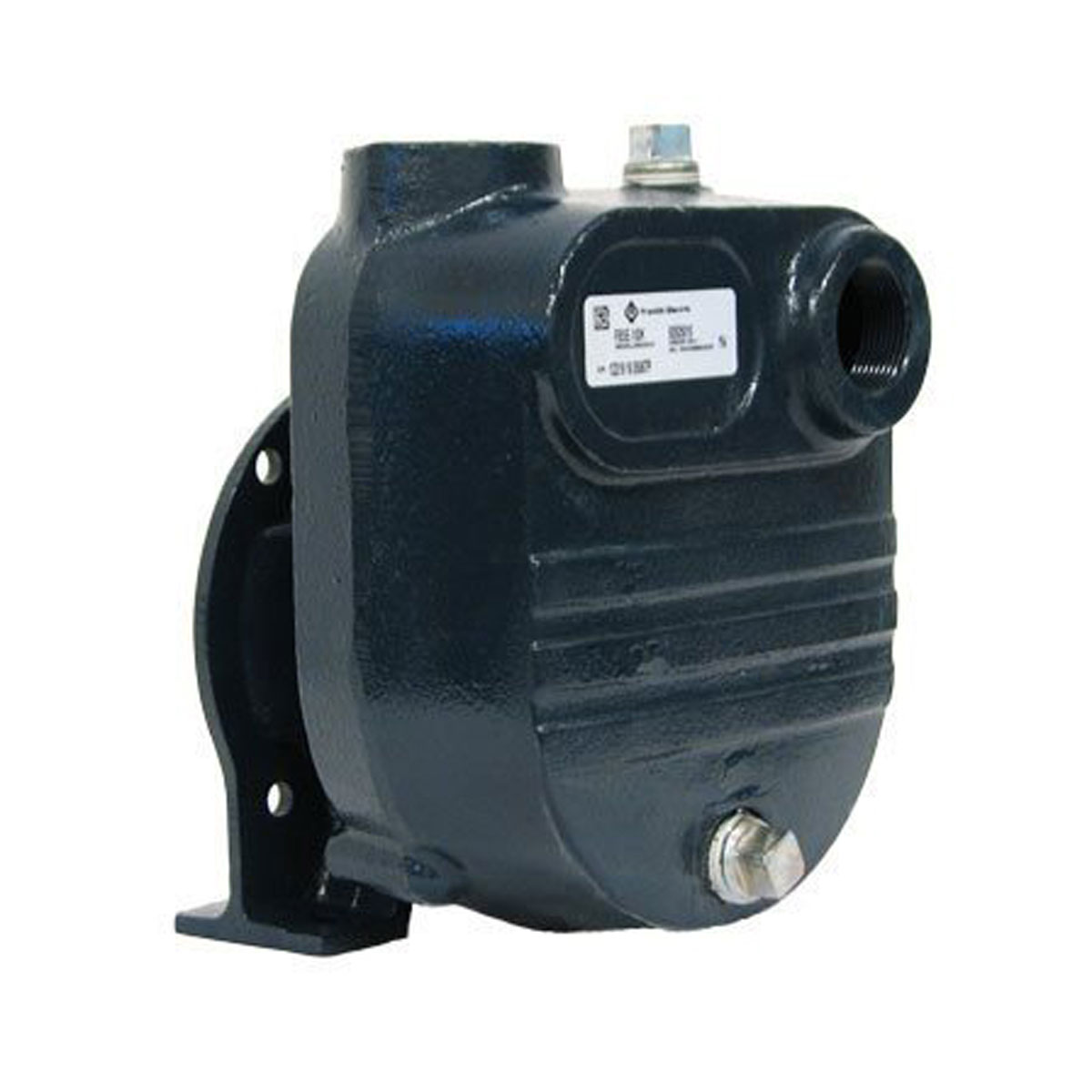

The BSE-S Series pumps are self priming utility/effluent pumps. They are constructed of durable cast iron which makes them long lasting in a variety of applications.
The BSE-S pumps are designed to be very simple to operate. This is made possible by the self priming casing which is engineered to prime itself quickly once it has been filled with water. Ideal for pumping out flooded basements, livestock watering, flood irrigation and general dewatering.
This 1 horsepower pump has a maximum flow of 80 GPM and a maximum head of 6? (29 PSI). 3450RPM 56J Motor not included. 1 1/4? FIPT suction and discharge.
- Cast iron pump casing
- Built in check valve
- 4 vane, semi-open gray cast iron impeller with ?blind hole? for motor shaft protection
- Horsepower: 1
- Flow: 80 GPM @ 20’ Head
- Shut Off: 68’
- Suction: 1 ¼”
- Discharge: 1 ¼”
- Weight: 18 lbs
| Flow in US GPM | ||||||||
|---|---|---|---|---|---|---|---|---|
| 20' | 30' | 40' | 50' | 60' | 70' | 80' | 90' | |
| LG/621815 | 45 | 31 | 16 | |||||
| LG/621825 | 58 | 44 | 29 | 10 | ||||
| FPS/92925005 | 55 | 46 | 32 | 10 | ||||
| FPS/92925010 | 80 | 70 | 60 | 42 | 20 | |||
| FPS/92925015 | 102 | 78 | 55 | 35 | 8 | |||
| FPS/92925020 | 126 | 103 | 80 | 58 | 32 | 10 | ||
| FPS/92925030 | 148 | 142 | 130 | 120 | 99 | 70 | 35 | 5 |

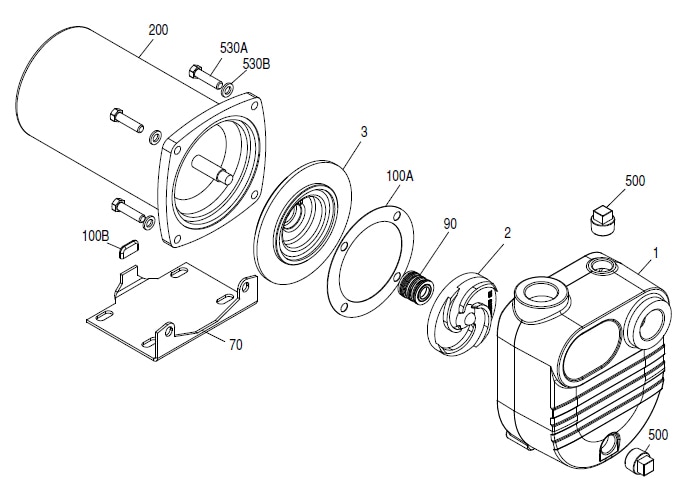

Franklin Electric BSE SERIES FBSE-100-K Replacement Parts
| Diag. No. | Item No. | Description |
|---|---|---|
| 3 | FPS-305461008 | FPS Seal Plate (FBSE-50, FBSE-100) |
| 90 | CRA-T66BC | 5/8" Type 6 Buna/Carbon Seal |
| Not all products are currently in stock. Non-stocking items can be ordered, which may increase delivery times. | ||
