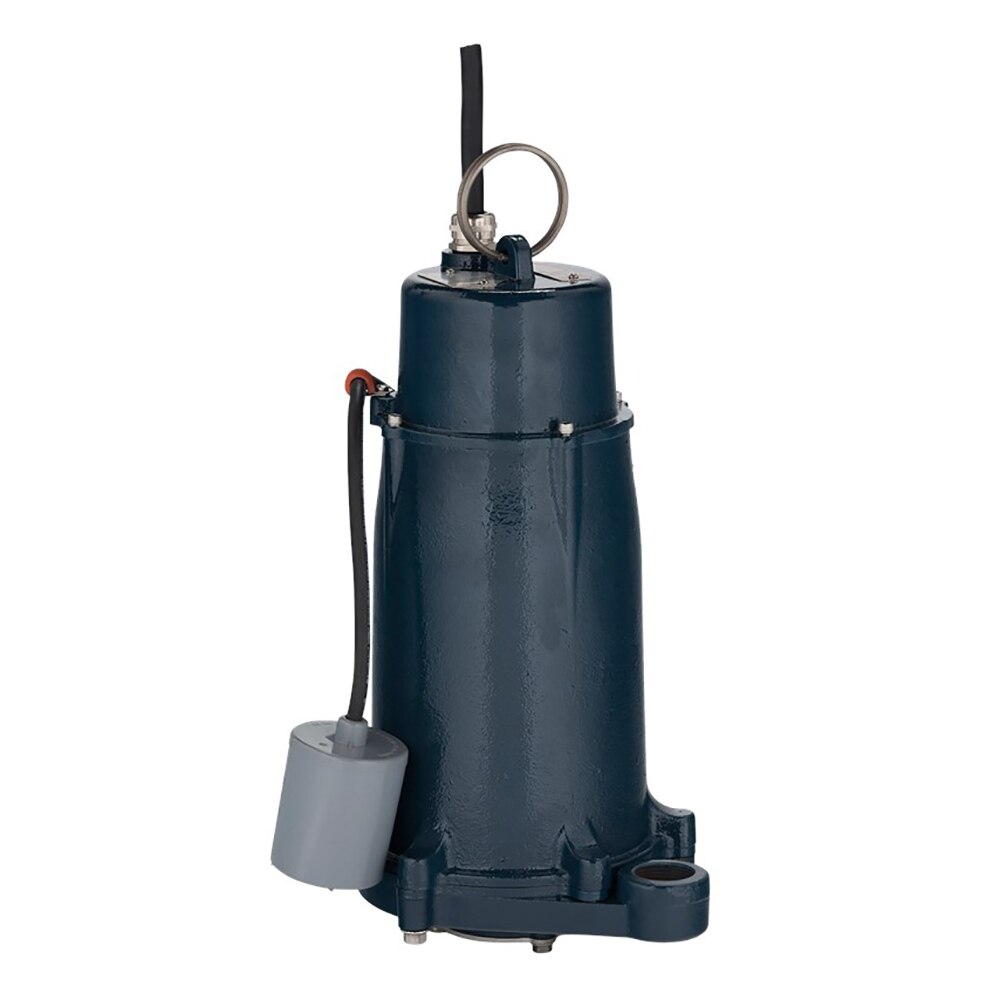

FPS 2 HP IGP Series Grinder Pump w/ Float Switch (20' Cord)
SKU: FRA-515861
FPS 2 HP IGP Series Grinder Pump w/ Float Switch (20' Cord)
FPS IGP Series grinder pumps are ideal for residential and light commercial sewage waste transfer where high head conditions exist
- Vertical 1-1/4" FNPT discharge
- Powerful 2 hp, 3450 rpm motor to handle the demands of grinding domestic sewage
- Mechanical float switch for automatic operation on 515861 and 515873
- Start/Run components encased in oil-free chamber requiring no control panel
- Carbon/Ceramic mechanical seals
- Deflection-resistant, short motor shaft
- Corrosion-resistant brass impeller minimizes downtime and maintenance
- Seven-vane, angled face, non-clogging, balanced impeller
- Tight cutting clearances for superior grinding at 414,000 cuts per minute
- Epoxy-coated finish for corrosion resistance and durability
- Built-in overload protection prevents over-current/temperature damage
- GLK-SST Grinder Leg Kit included with all IGP-A pumps

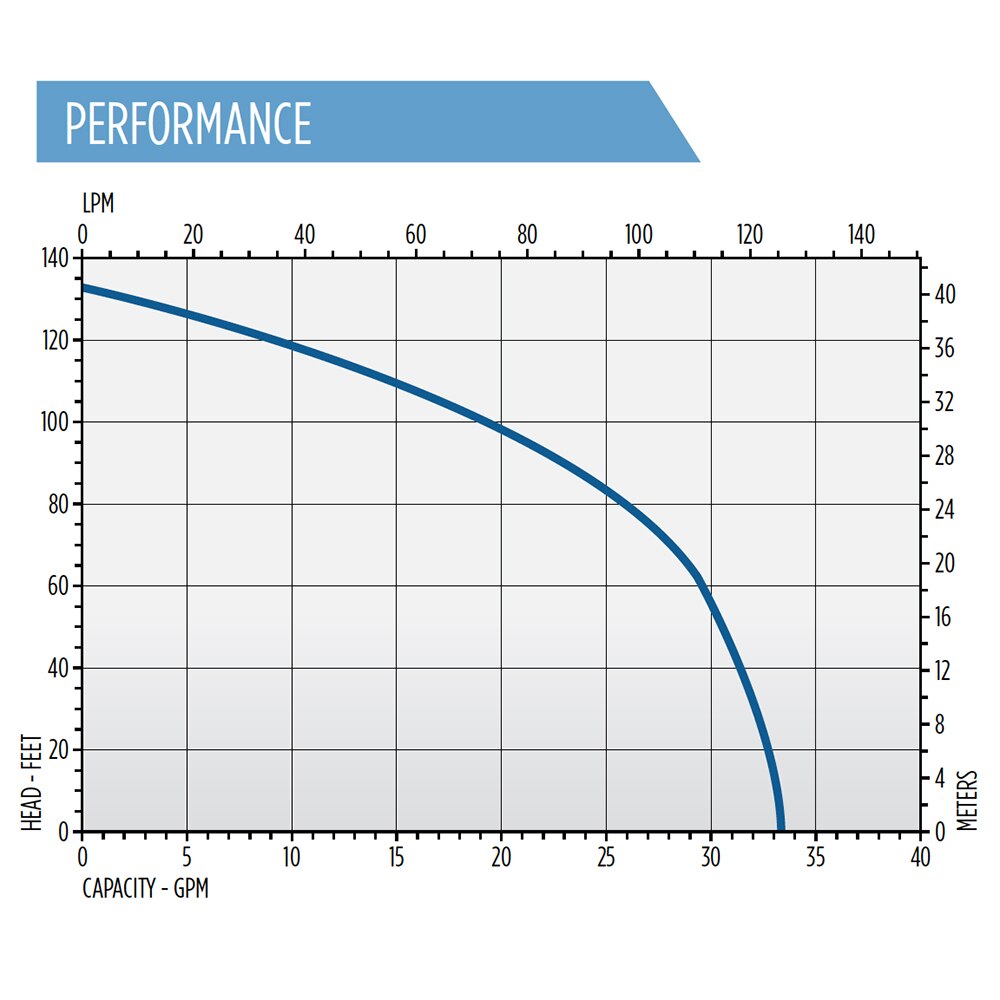

HP | VOLTS | Hz | FULL LOAD AMPS / WATTS | CORD LENGTH | GPH AT HEIGHT | SHUT-OFF | PSI | WEIGHT (LBS) | |||||
20' | 40' | 60' | 80' | 100' | 120' | ||||||||
2 | 208-230 | 60 | 13.9/3200 | 20' | 32 | 31 | 30 | 25 | 20 | 10 | 130' | 56 | 104 |
