FPS 3 HP Self Priming Transmission Pump End Only (FBSTF-3)
SKU: FPS-90253003
FPS 3 HP Self Priming Transmission Pump End Only (FBSTF-3) (9025 3003)

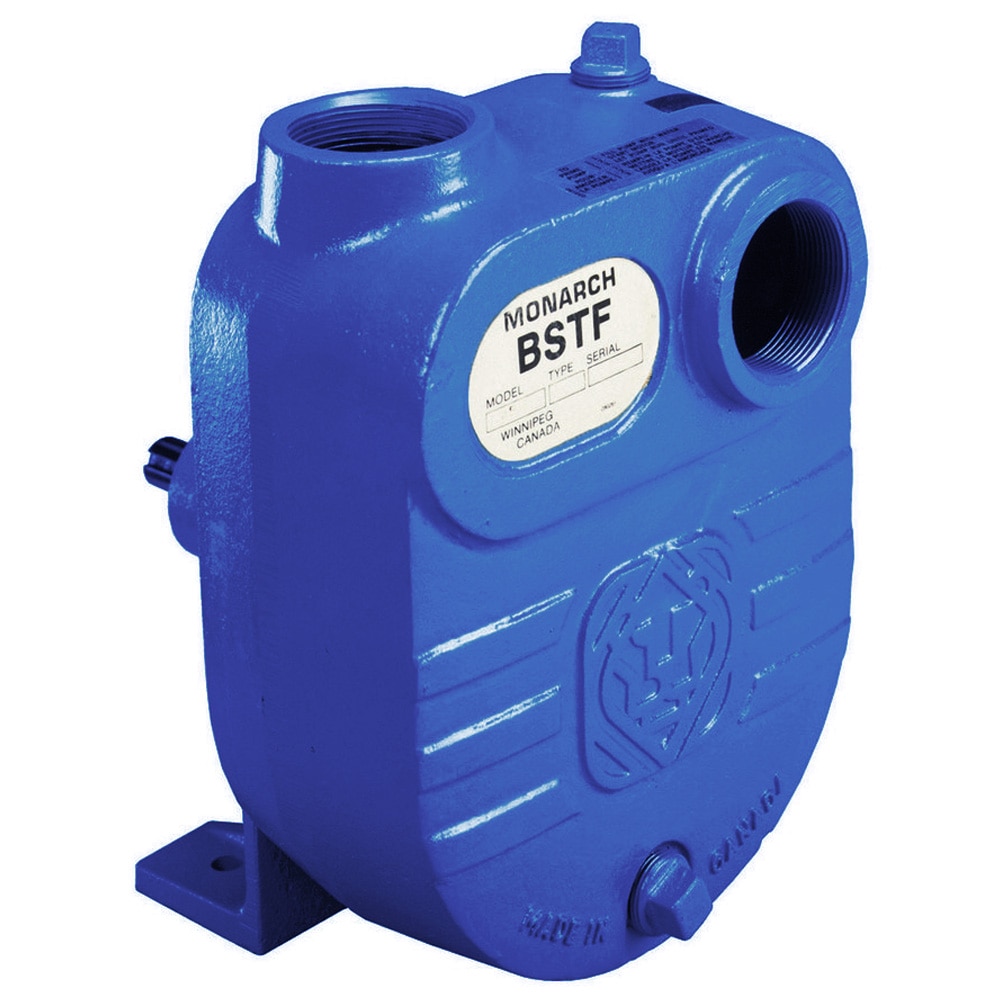

The BSTF Series pumps are self priming, centrifugal utility pumps. They can be either direct or belt driven, giving you the option of connecting the pump to a motor or engine of your choice.
This 3 horsepower pump has a maximum flow of 152 GPM and a maximum head of 88' (38 PSI). 2" FIPT suction and discharge.
- Cast iron pump casing
- 4 vane, semi-open gray cast iron impeller with ?blind hole? for motor shaft protection
- Horsepower: 3
- Flow: 152 GPM @ 20’ Head
- Shut Off: 88’
- Suction: 2”
- Discharge: 2”
- Weight: 45 lbs
| Transmission Pumps based on 3450 RPM | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Flow in US GPM | |||||||||
| 20' | 25' | 30' | 35' | 40' | 50' | 60' | 70' | 80' | |
| FPS/90253001 | 68 | 68 | 68 | 67 | 62 | 45 | 17 | ||
| FPS/90253002 | 127 | 124 | 118 | 112 | 100 | 78 | 52 | 23 | |
| FPS/90253003 | 152 | 152 | 150 | 147 | 142 | 125 | 100 | 43 | |
| FPS/90253004 | 267 | 254 | 240 | 224 | 205 | 165 | 110 | 70 | 35 |

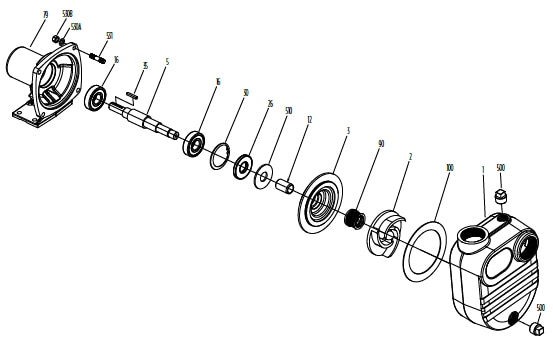

Franklin Electric FBSTF SERIES 3 HP Replacement Parts
| Diag. No. | Item No. | Description |
|---|---|---|
| 1 | MON-438057 | FPS 2" Casing (New # 305461002) (FBSTF-2 & FBSTF-3) |
| Not all products are currently in stock. Non-stocking items can be ordered, which may increase delivery times. | ||
