  • Flexcon 20 Gallon Defiance Series Water Systems Tank

Flexcon 20 Gallon Defiance Series Water Systems Tank

SKU: *FLX-DEF20
(0) No Reviews yet
$429.79

In Stock (Note that the item’s inventory availability is over all three branches, combined. Phone your local branch for immediate availability)

No Free Shipping

This item is not eligible for free shipping. Our shipping specialists will contact you with a detailed quote after ordering.

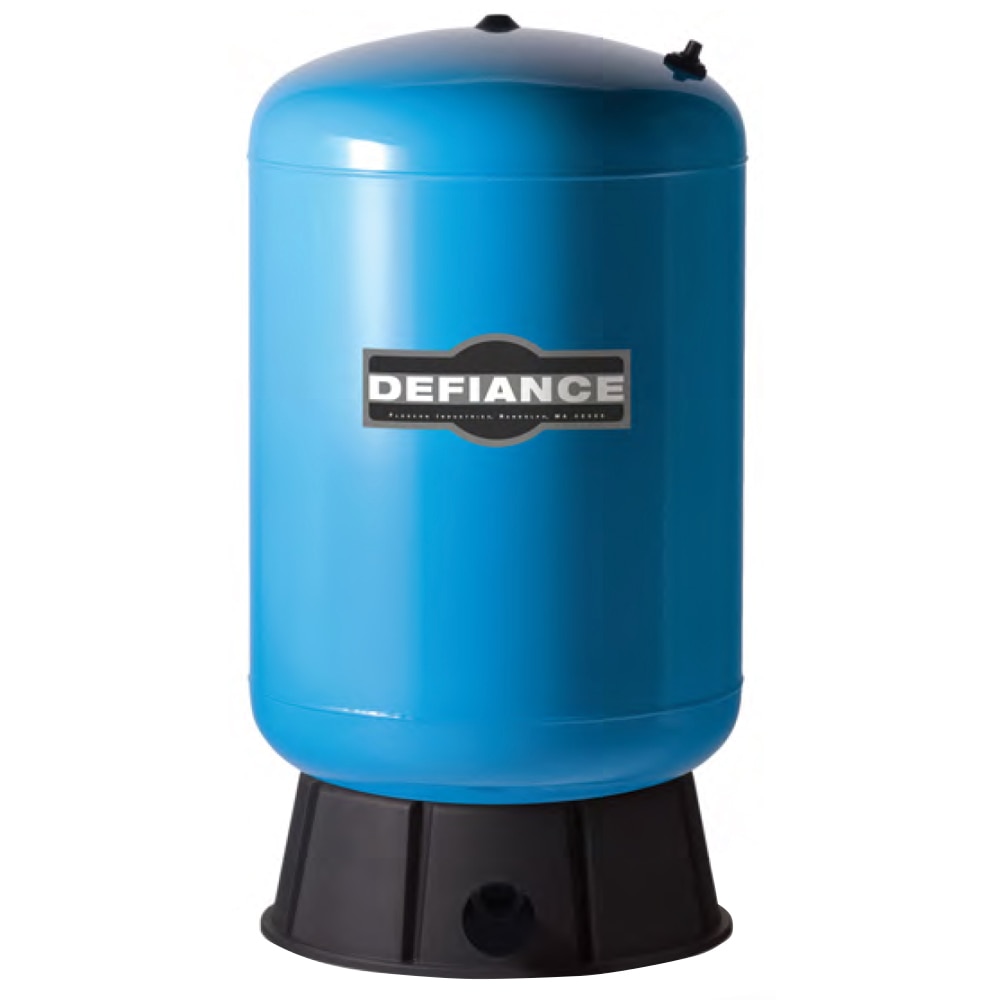

Flexcon 20 Gal Defiance Series Water Systems Tank


The Defiance series tanks are diaphragm type, pre-charge hydro-pneumatic tanks designed for residential and commercial water well, pressure booster, and irrigation systems.


  • Max. Working Pressure: 125 PSI
  • Max. Working Temp: 140 F
  • Pre-Charge (adjustable): 38 PSI

  • Tank: 16 gauge cold rolled steel.
  • Finish: Appliance quality paint for indoor and outdoor installation.
  • Water Chambers: Top chamber is blended butyl rubber, lower water chamber is copolymer polypropylene.
  • Connection: Welded steel NPT thread.
  • Testing: High pressure, seam weld, helium, final precharge check.
  • Air valve: Brass valve with O-ring seal.
ModelDiameter
(inches)
Height
(inches)

System
Connection
(inches)

Volume
(gallons)
Drawdown (gallons)Weight
(lbs)
20/4030/5040/60
DEF 201629.41208.16.85.936
