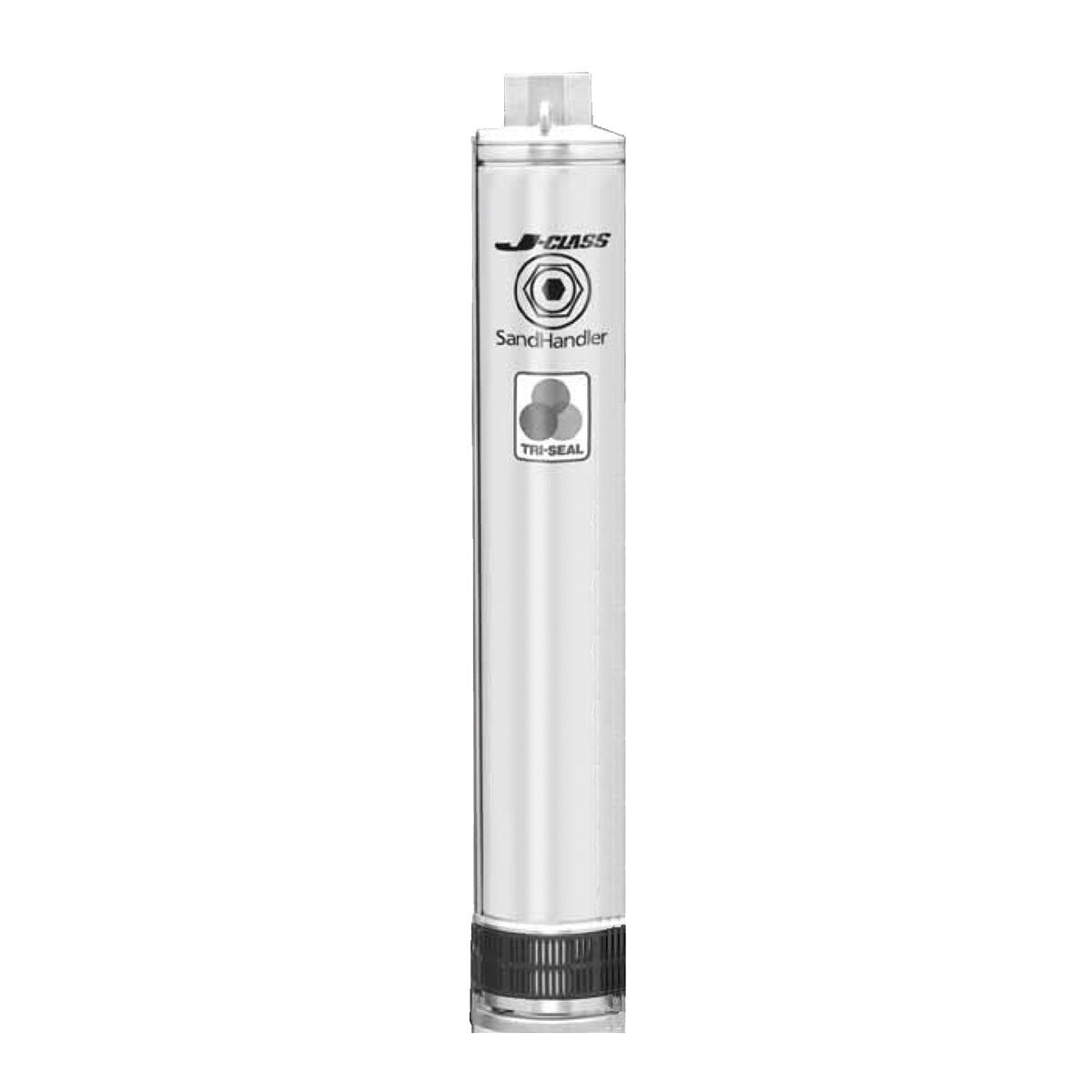

Franklin 1 1/2 HP, 45 GPM, 4" Submersible Well Pump (Less Motor)
SKU: FRA-93654505
Franklin 1 1/2 HP, 45 GPM, 4" Submersible Well Pump (Less Motor) (9361 4506)
This 1 1/2 horsepower, 45 GPM pump end has a maximum pressure of 82 PSI (190'). 2" FIPT discharge, 6 stages, 4" Model 45JS15S4-PE, pump end only.
The J-Class SandHandler High Capacity 4" submersible pumps are designed for commercial, irrigation, and home use and are available in multiple performance ranges. Engineering and construction features both combine to reduce the efficiency losses caused by leakage within the pump or from pumping sand.
The floating eye and hub seals for improved performance and efficiency. The high flow impellers and stages are glass-filled Noryl for maximum efficiency.
Features:
- Stainless steel discharge head and motor bracket
- High flow impellers and stages are glass-filled Noryl for maximum efficiency
- Ceramic shaft sleeve and rubber discharge bearing eliminate sand wear
- Intermediate bearing for increased shaft stability
- Floating eye and hub seals for improved performance and efficiency
- Stainless steel hex pump shaft, shell and shaft coupling
- High capacity upthrust assembly for protection during start-up and operation (45, 60 and 90gpm models)
- Check valve must be ordered separately
Specifications
Ratings
- HP 1.5 hp
- Frequency 60 Hz
- Basic Model 45S4
- Pump Efficiency Index: 0.89
Operation
- Maximum Flow Rate 55gpm
- Minimum Flow Rate 30gpm
- Flow 45gpm
- Shut Off 156 ft
- Stages 5
- Pump Efficiency 66.0 %
- Temperature Rating 120 °F
Liquid
- Maximum Fluid Temperature 120 °F
Materials of Construction
- Pump Body Material AISI 304 Stainless Steel
- Discharge Head Material Stainless Steel
- Impeller Material Acetal
- Motor Bracket Material Stainless Steel
- Check Valve No
- Intake Screen Material Stainless Steel
- Cable Guard Material Stainless Steel
Dimensions
- Discharge Threaded - FNPT
- Discharge Diameter 2 "
- Diameter With Cable Guard 3.9 "
- Pump Length 14.2 "
- Product Weight 8 lb
- Pump Diameter 3.9 "
Other
- Drinking Water Agency Approvals ANSI/NSF Standard 61
- Warranty Standard Time 12 Month Install / 24 Month Manufacturing
| 45 GPM Series (Based on 0 PSI DISCHARGE PRESSURE, Flow in US GPM) | ||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Depth to Water Level | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | 200 | 240 | 260 | 300 | 340 | 360 | 400 | S/O ft | |
| FRA/LP15-45 | 52 | 46 | 39 | 31 | 190' | |||||||||||||
| FRA/LP2-45 | 55 | 51 | 46 | 41 | 36 | 30 | 250' | |||||||||||
| FRA/LP3-45 | 56 | 53 | 50 | 47 | 43 | 36 | 31 | 350' | ||||||||||
| FRA/LP50-45 | 55 | 53 | 50 | 48 | 44 | 40 | 38 | 33 | 575' | |||||||||
