INLINE FLW SERIES 115V/230V 1/2HP-1.5HP 1"MNPT 15A

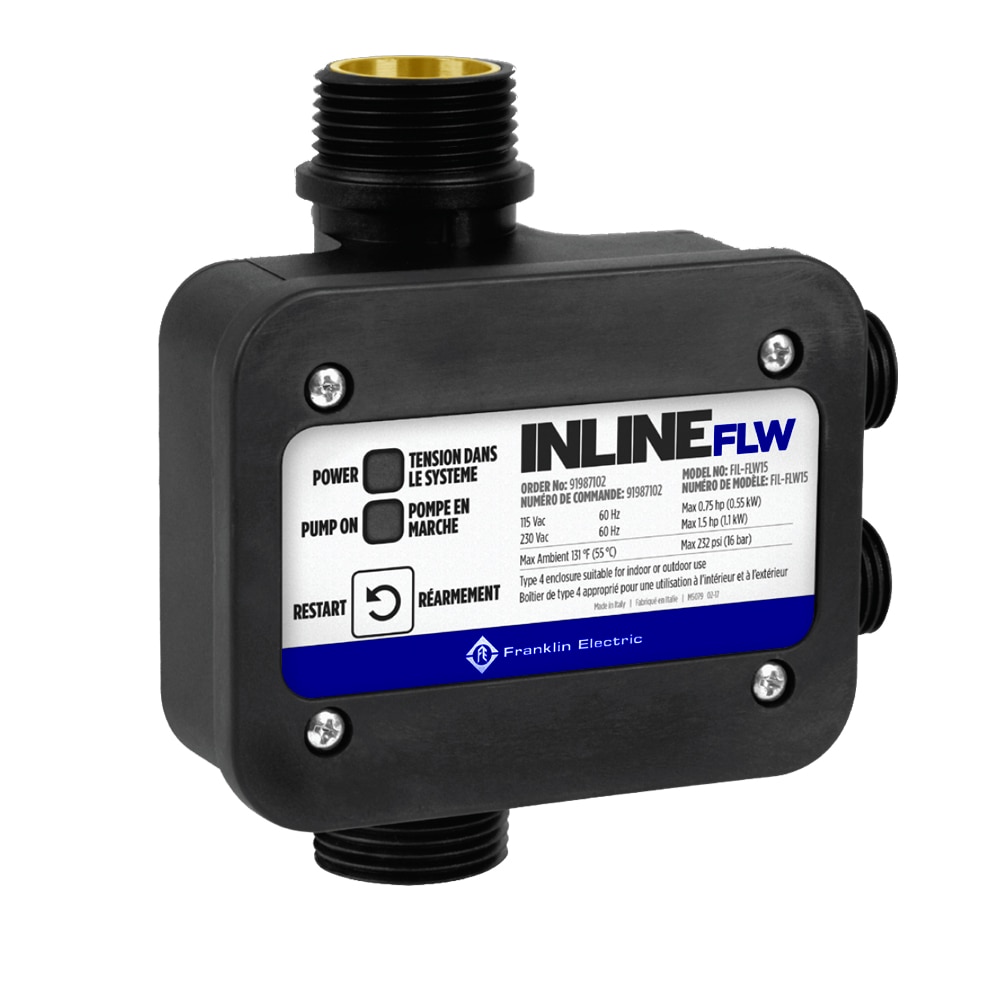

Franklin 1/2HP - 1 1/2HP, 15 Amp, 115V/230V Inline FLW Jet Pump Control
Specifically built for water pumping applications, Franklin Electric’s Inline Controls include five pump starting and control devices that pair with a variety of submersible or surface pumps up to 20 amps (or approximately 3 hp) to provide or boost the system’s overall water pressure – and in most cases, without the need of an additional bladder tank.
They also offer two unique features that ensure the system remains functional and hassle free, including a daily motor rotation start designed to energize the motor at least once every 24 hours to prevent system locking, and a unique automatic restart feature eliminating the need to manually restart the pump in the case of an unexpected trip or fault.
- Flow Based Pump Activation
- Run Dry Protection
- Replaces Pressure Switch and Tank
- Motor Size: Up to 1.5 hp
- Max Current: 15 A
- Voltage: 115/230V
- Thread: 1" MNPT
- Max. Temperature: 150 °F
