1HP 35GPM HIGH CAP SS PEO J-CLASS/FPS 93653505 no check

SKU: FRA-93653505
(0) No Reviews yet
$1,415.00

In Stock

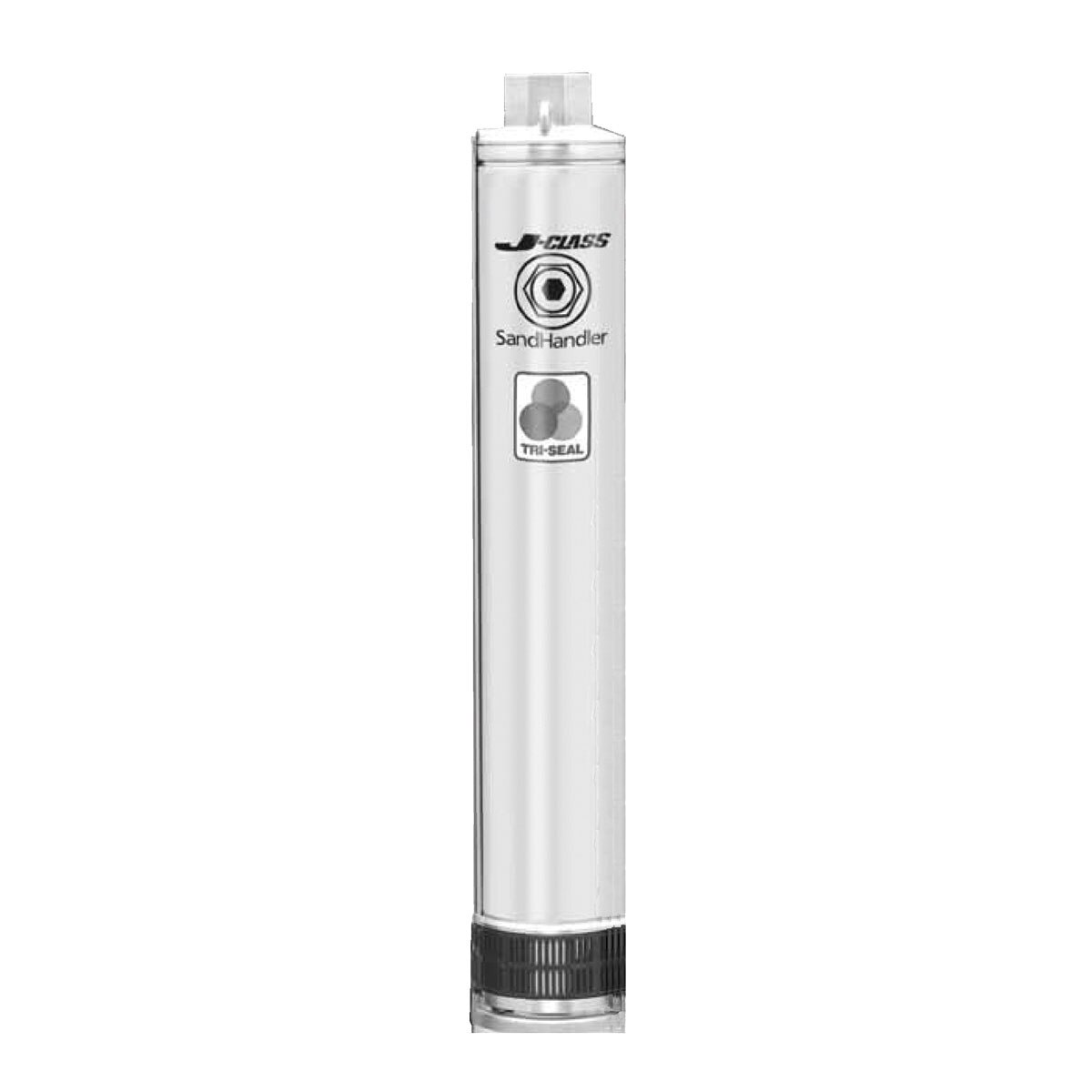

Franklin 1 HP, 35 GPM, 4" Submersible Well Pump (Less Motor) (9361 3506)


This 1 horsepower, 35 GPM pump end has a maximum pressure of 74 PSI (171'). 2" FIPT discharge, 6 stages, 4" Model 35JS1S4-PE, pump end only.


The J-Class SandHandler High Capacity 4" submersible pumps are designed for commercial, irrigation, and home use and are available in multiple performance ranges. Engineering and construction features both combine to reduce the efficiency losses caused by leakage within the pump or from pumping sand.


The floating eye and hub seals for improved performance and efficiency. The high flow impellers and stages are glass-filled Noryl for maximum efficiency.


Features:
  • Stainless steel discharge head and motor bracket
  • High flow impellers and stages are glass-filled Noryl for maximum efficiency
  • Ceramic shaft sleeve and rubber discharge bearing eliminate sand wear
  • Intermediate bearing for increased shaft stability
  • Floating eye and hub seals for improved performance and efficiency
  • Stainless steel hex pump shaft, shell and shaft coupling
  • High capacity upthrust assembly for protection during start-up and operation (45, 60 and 90gpm models)
  • Check valve must be ordered separately

Specifications:

  • Franklin Electric Item Number: 93613506
  • Horsepower: 1
  • Flow: 34 GPM @ 100' with 0 PSI discharge pressure.
  • Diameter: 4"
  • Discharge: 2"
  • Shut Off: 171'
  • Stages: 6
  • Length: 15"
  • Weight: 9 lbs
35 GPM Series (Based on 0 PSI DISCHARGE PRESSURE, Flow in US GPM)
Depth to Water Level80100120140160180200220240260280300320340360380400450500550S/O ft
FRA/LP1-35
3934282111














171'
FRA/LP15-35
434036322722













226'
FRA/LP2-35
4543413834312823











282'
FRA/LP3-35



44423937353331282623






401'
