Franklin 2 HP, 25 GPM, 4" Submersible Well Pump (Less Motor)

SKU: FRA-93772525
(0) No Reviews yet
$1,885.00

In Stock

Call for Quote

Franklin 2 HP, 25 GPM, 4" Submersible Well Pump (Less Motor) (9377 2525)


This 2 horsepower, 25 GPM pump end has a maximum pressure of 162 PSI (375 feet). 1 1/4" FIPT discharge, 10 stages, 4" Model 25JS2S4-PE, pump end only.

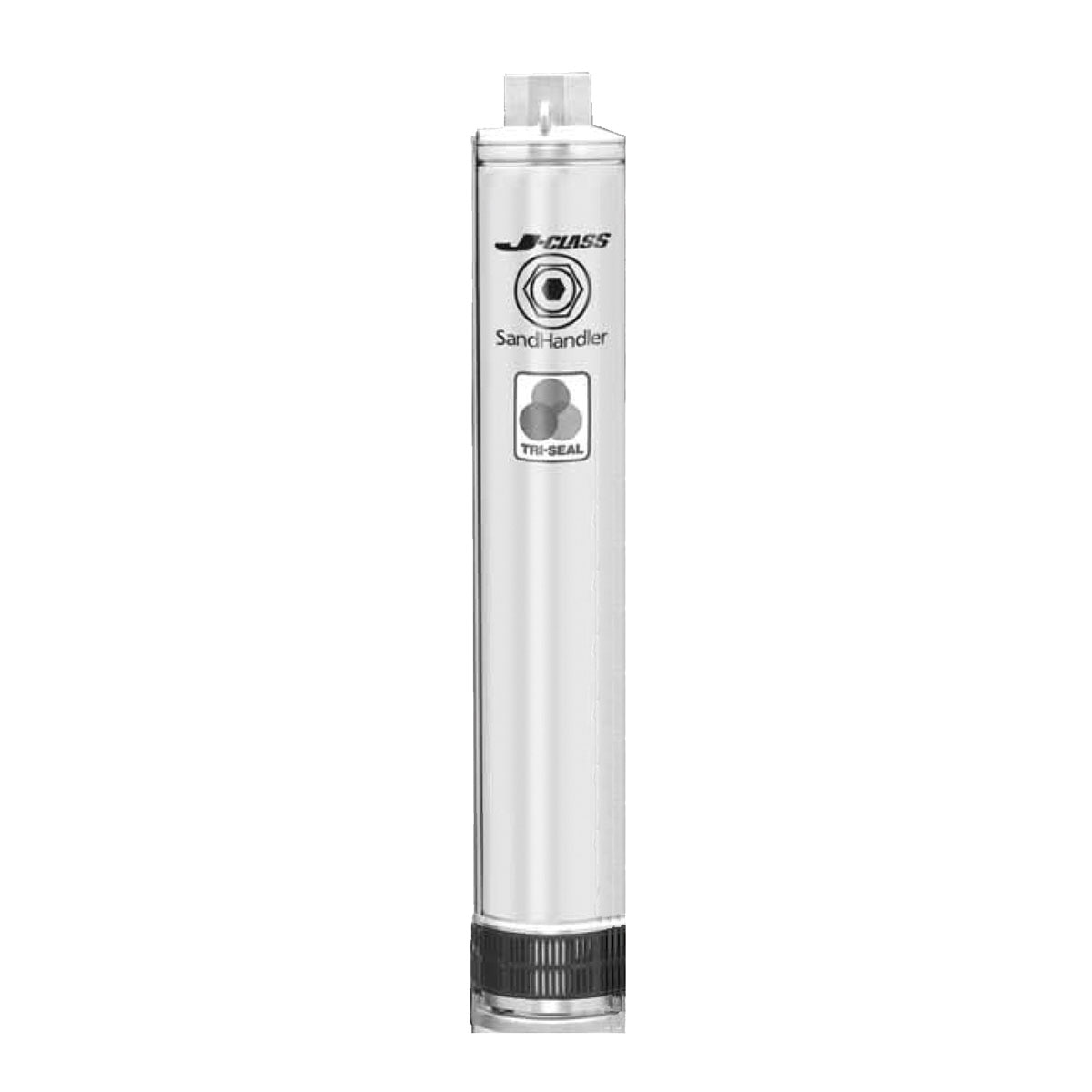

The Standard J-Class SandHandler 4" submersible pump features the new TRI-SEAL floating stage system. This new stage system improves efficiency and protects against wear when pumping abrasives (sand). All J-Class SandHandler pumps are unconditionally guaranteed against sand locking in abrasive well conditions for one full year.


The floating stage design allows impellers to float independently. The Celcon impeller provides high efficiency performance and abrasion resistance. Ceramic shaft sleeve and rubber discharge bearing protect shaft and eliminate sand wear.


Features:
  • 300 series stainless steel hub floats with the impeller maintaining a positive seal.
  • Phenolic washer provides down-thrust protection.
  • Celcon impeller provides high efficiency performance and abrasion resistance.
  • Noryl diffuser and disc - proven abrasion resistant material.
  • Floating stage design allows impeller to float independently.
  • Removable, spring-loaded check valve.
  • Maximum water temperature: 120°F / 49°C
  • Ceramic shaft sleeve and rubber discharge bearing protect shaft and eliminate sand wear

Specifications:

  • Franklin Electric Item Number: 93772525
  • Horsepower: 2
  • Flow: 24 GPM @ 140' with 50 PSI discharge pressure.
  • Diameter: 4"
  • Discharge: 1 1/4"
  • Shut Off: 375'
  • Stages: 10
  • Length: 19.22"
  • Weight: 11 lbs
25 GPM Series (Based on 50 PSI DISCHARGE PRESSURE, Flow in US GPM)
Depth to Water Level20406080100120140160180200240260300360400440480500600700S/O ft
FRA/LP1-25
26242116















222'
FRA/LP15-25
32292725232118












297'
FRA/LP2-25

323029272624222018









375'
FRA/LP3-25



32313130292827242321






519'
FRA/LP5-25







3333323130282725242319

833'
