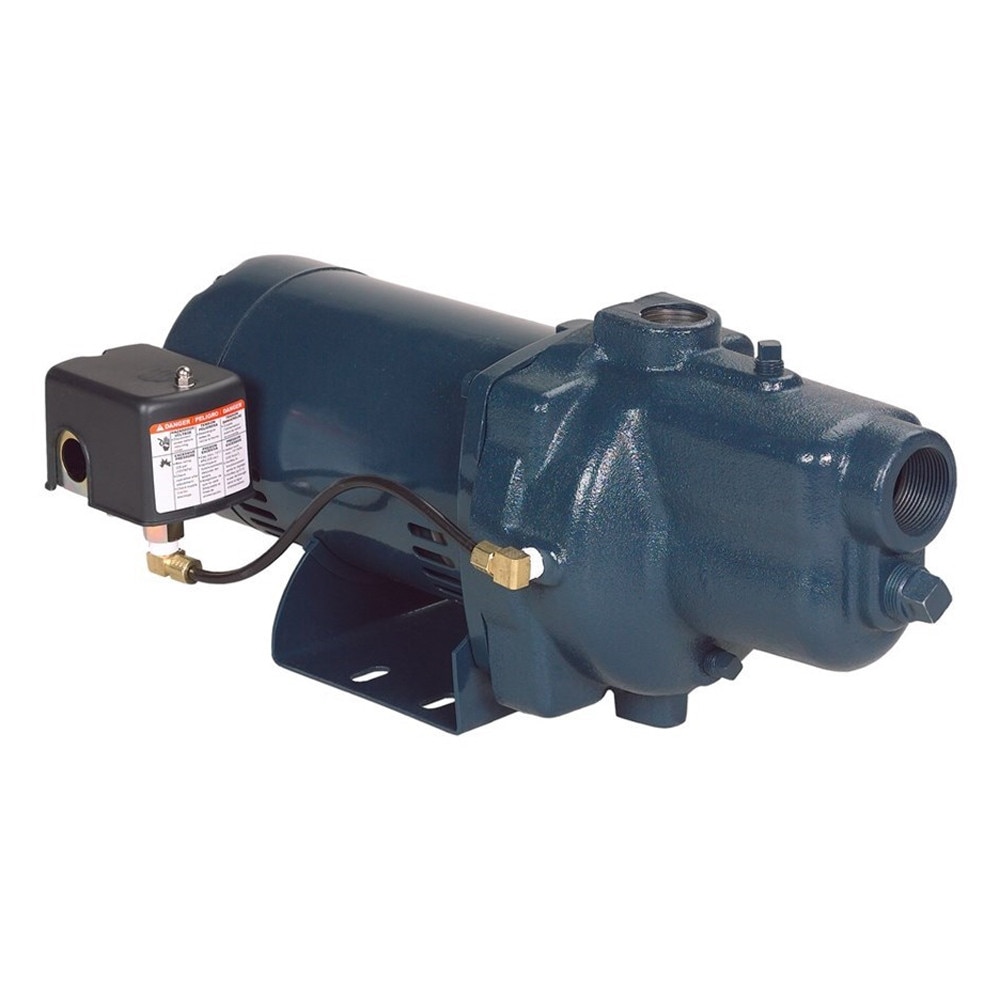

Franklin JVJ1CI (1 HP, 115/230v) VersaJet Pump

SKU: FPS-91180010
(0) No Reviews yet
$1,041.00

On Back Order

Franklin JVJ1CI (1 HP, 115/230v) VersaJet Pump



Built for easy customization, the VersaJet Jet Pump covers a variety of performance needs. With a patent pending nozzle replacement system and a small Allen wrench (included), the internal nozzle can be replaced with any of the three nozzles supplied to provide standard performance, high pressure, or high flow.

This 1 horsepower pump is capable of 20.2 GPM at 40 PSI with a 5’ suction lift.1¼” FIPT Suction, 1” FIPT Discharge, 115/230v, no power cord supplied.

  • Patent Pending ”Quick-Change” jet nozzle replacement system
  • Noryl® impeller with stainless steel insert, diffuser, jet nozzle and venture
  • Heavy-duty cast iron case
  • Ceramic mechanical shaft seal
  • Floating stainless steel eye seal
  • A.O. Smith dual voltage motor: 115 or 230v
  • Pressure gauge port (Pressure gauge not included)
  • Pressure switch installed
  • Built-in drain plug
  • Handles water temperatures up to 120°F and shut-off pressures up to 90 PSI
  • 1” FIPT discharge
  • 1.25” FIPT suction
  • UL778 approved for indoor or outdoor use


Manufacturer Pump Model: JVJ1CI Manufacturer Order Number: 91160010
  • Horsepower: 1
  • Flow: 27.8 GPM @ 40PSI, 5’ Suction Lift (with installed nozzle)
  • Shut Off: 59-72 PSI (depending on installed nozzle)
  • Voltage: 115/230v
  • Phase: 1
  • Hertz: 60
  • Pressure Switch: On: 30 PSI Off: 50 PSI
  • Suction: 1¼”
  • Discharge: 1”
  • Weight: 56 lbs
  • Height: 12.88”
  • Width: 10.68”
  • Length: 22.66”


* Dimensions will vary according to motor manufacturer.
Based on 5' Suction lift, Flow in US GPMShut-Off PSI
Discharge PSI30405060
ModelNozzle
JVJ05CI 91180005B10.18.54.92.170
C8.37.66.34.086
A12.15.2--47
JVJ07CI 91180007B15.114.19.03.870
C14.714.19.64.873
A18.411.6--47
JVJ1CI 91180010B20.720.412.83.964
C19.419.114.67.771
A22.720.27.6054
JVJ1CI-PRO 91181010B28.227.824.011.666
C27.927.626.815.572
A29.529.219.5-59
