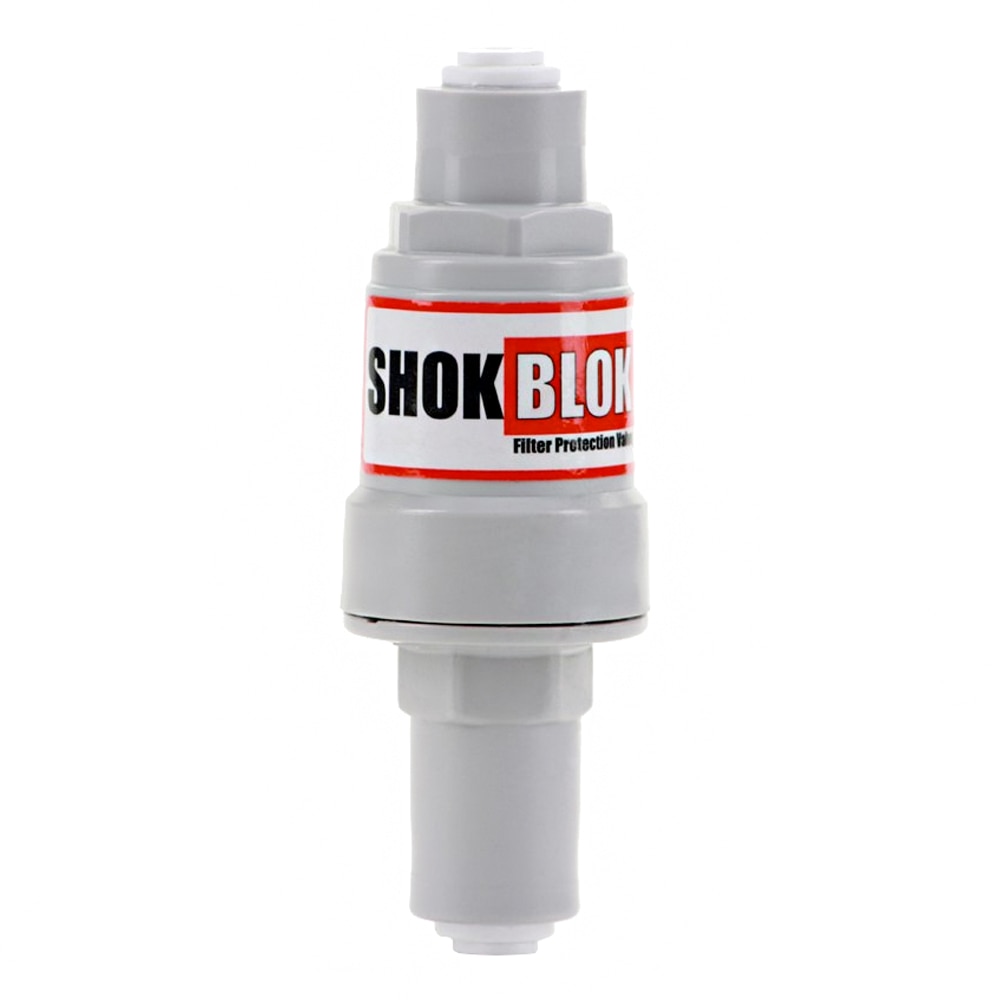

Hydronix Shok Blok Filter Protection Valve w/1/4" Quick Connects
SKU: HYD-SBFVB70
Hydronix Shok Blok Filter Protection Valve w/1/4" Quick Connects
Your best choice for limiting water pressure to your water filtration device. The Hydronix Water Pressure Protection Valve are designed for high pressure installations to protect reverse osmosis systems, water filters, ice makers, coffee machines, chillers, hot tanks and water coolers to name a few.
The Hydronix Water Pressure Protection Valve offers protection for various water filtration devices. This filter protection valve provides water pressure reduction and reduces water hammer. This Shok Blok water hammer valve features a 70 PSI specification and has an acetyl body with quick connect fittings for 1/4" OD tubing.
Hydronix Water Pressure Protection Valve specifications
- Kills water hammer
- Limits water pressure
- Max. pressure: 300 PSI
- Max. temp: 104 F (40°C)
- Flow: 4 gal/min (15L/min) at 100 PSI
- Limiting valve 70 PSI, 1/4" tube inlet/outlet
| SB 70 PSI Series Specifications | |
|---|---|
| Inlet Pressure (PSI) | Outlet Pressure (PSI0 |
| 100 | 68 |
| 150 | 72 |
| 200 | 74 |
