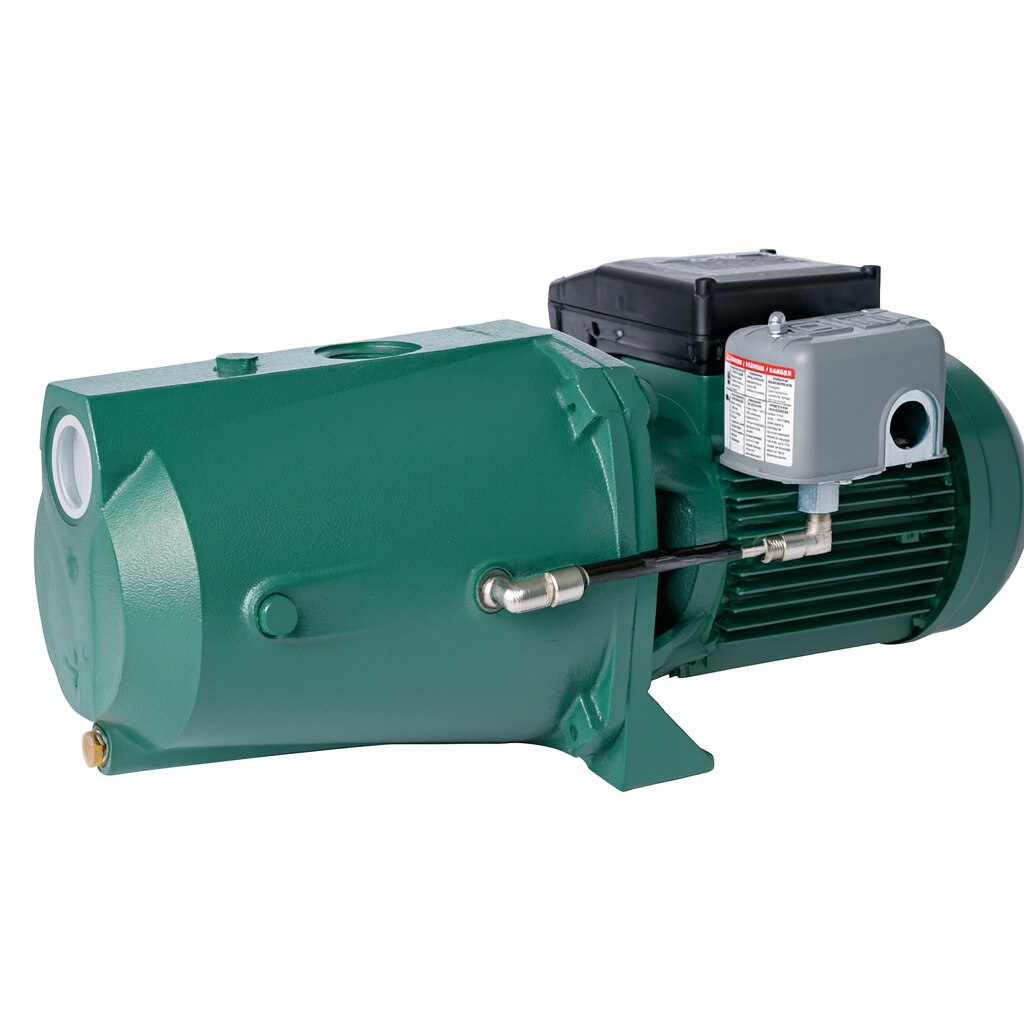

DAB 3.0 HP Jet 300 PS - Self Priming Jet Pump
SKU: DAB-102166250
DAB 3.0 HP Jet 300 PS - Self Priming Jet Pump
DAB JET Self-priming centrifugal pumps for domestic use, also able to run in the presence of air bubbles, with cast-iron body. Optimal for residential pressure boosting, small-medium irrigation systems, and gardening applications.
Applications
- Self-priming centrifugal pump with optimal liquid aspiration even in the presence of air bubbles.
- Suitable for pumping water with low levels of sandy impurities.
- Especially used in domestic water supply installations.
- Suitable for small farms and gardening, light industrial services, and where self-priming is necessary.
Technical Data:

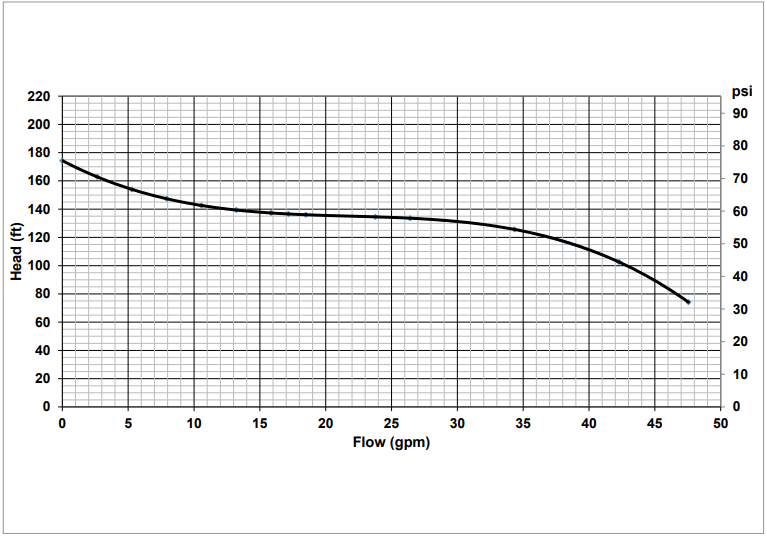

- Operating Range: Capacity up to 50 gpm; head up to 167 ft (72 psi)
- Liquid Quality Requirements: Clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, non-crystallized and chemically neutral
- Liquid Temperature Range: From 0°C to +35°C for domestic use. For other use: from 0°C to +40°C
- Maximum Suction Depth: 26 ft
- Maximum Ambient Temperature: 40°C
- Maximum Pressure: 116 PSI
- Motor: 3 HP (2.2 kW)
- Standard Input Voltage: Single phase 230 V - 60 Hz
- Amp Draw: Approximately 12 A
- Insulation Class: F
- Installation: Horizontal fixed position
