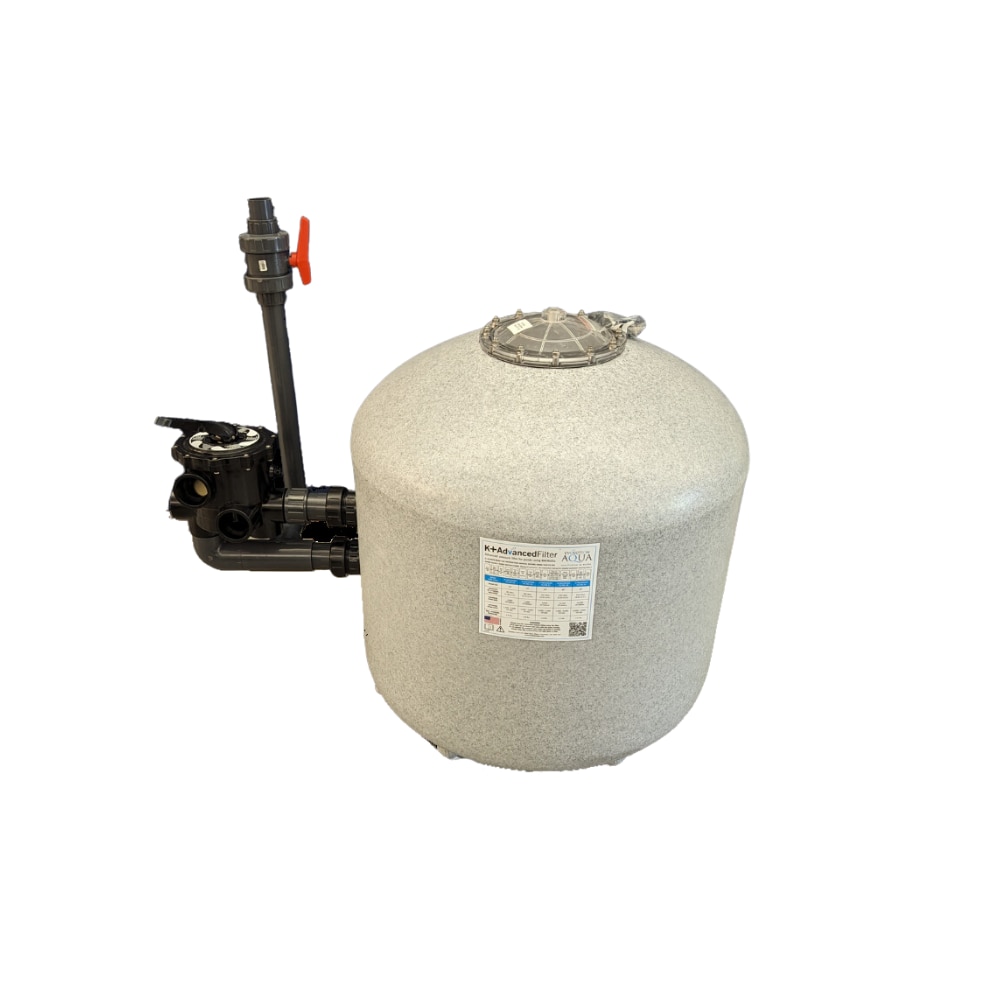

K+ Advanced Filter 36
K+ Advanced Filter 36
The Evolution Aqua K+ Advanced Pressure Filter media is designed to allow the unrestricted flow of water through the unit. This helps lower the wattage of the pump that can be used. Altogether, the K+ Micro Bead filters offer excellent mechanical filtration and tremendous biological performance. Features a clear 10" viewing dome for easy inspection.
Rather than using conventional beads as its principal filter media, it uses the K+ media. It provides a better biological and mechanical filtration. This is because the K+ media has a vast surface area of 290 sq.ft. per cu.ft. This protected surface area safely houses beneficial bacteria and prevents them from being flushed to waste during the cleaning cycle. Only dead bacteria and waste debris will be discharged, preventing ammonia and nitrite spikes after maintenance.
Water is pumped into the filter from the pond, through a multi-port valve, this is where the internal pipework directs the water to the bottom of the unit. As the water flows upward, dirt and debris is trapped within the mass of K+ filter media. The K+ media (which provides housing for beneficial bacteria) delivers biological filtration. The filtered water flow back into the pipework at the top of the unit, through the multi-port valve, and back down the return line into the pond. It is easy to clean. Simply moving the handle on the multi-port valve into the corresponding positions to perform a backwash and rinse of the K+ media.
- Max. Pond Size - 24000 Gal
- Optimum Pump Size - 7925 GPH
- Type - Pressurized External Filter
- Air Blower - 500 W
- Volume of K+ Micro Media - 250L
- Inlet / Outlet - 2"
- Dimensions (Dia. x H) - 36" x 43"
- Warranty - 1 Year
Model | Diameter | Maximum Pond Size | Optimum Flow Rate | Volume Of K+Advanced Media | Multiport Valve Size | Max. Working Pressure |
K+AdvancedFilter20 | 20" (500mm) | 18,000 Litres 4,000 UK Gallons 4,800 US Gallons | 6,000 LPH 1,320 GPH 1,585 US GPH | 50 Litres 11 UK Gallons 13.2 US Gallons | 1½" | 1.5 Bar |
K+AdvancedFilter24 | 24" (620mm) | 36,000 Litres 8,000 UK Gallons 9,600 US Gallons | 12,000 LPH 2,640 GPH 3,170 US GPH | 100 Litres 22 UK Gallons 26.4 US Gallons | 2" | 1.5 Bar |
K+AdvancedFilter30 | 30" (750mm) | 54,500 Litres 12,000 UK Gallons 14,500 US Gallons | 18,000 LPH 3,960 GPH 4,755 US GPH | 150 Litres 33 Gallons 39.6 US Gallons | 2" | 1.5 Bar |
K+AdvancedFilter36 | 36" (900mm) | 91,000 Litres 20,000 UK Gallons 24,000 US Gallons | 30,000 LPH 6,600 GPH 7,925 US GPH | 250 Litres 55 Gallons 66 US Gallons | 2" | 1.5 Bar |
