Lightwave 15 GPM All-In-One UV/Filter System w/ 1 x 20" Housing

SKU: LTW-LBH5Z2NC
(0) No Reviews yet
$1,636.66

In Stock

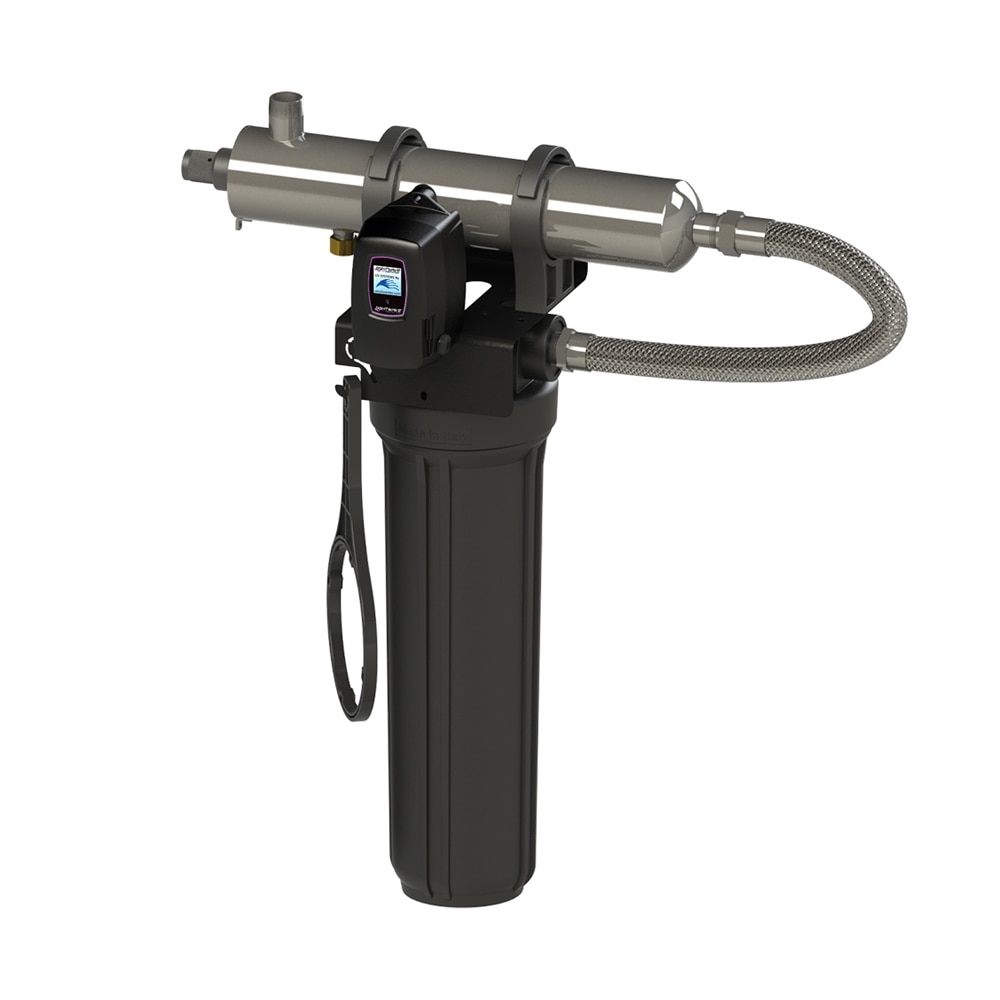

Lightwave 15 GPM All-In-One UV/Filter System w/ 1 x 20" Housing


Rack-mounted UV/filtration systems offer the convenience of an all-in-one package making installation a simple “in & out” connection.


Designed to effectively treat flow rates of 15 gpm, LIGHTWAVE’s rack-mounted UV's provide the required 5 micron pre-treatment with the option of a full-flow, carbon filter to treat taste and odour. Installation of a UV system has never been easier with an innovative design that allows for feedwater to enter the filters from either the right or left side of the unit.


The rack-mount UV’s offer the flexibility of being “factory ready” to accept a UV Intensity Module in the future if so desired. The plug and play platform has the most advanced residential controller on the market with a colour screen user interface giving a multitude of screens displaying diagnostics, status, warnings and even QR codes for website linking.


Combine this with the capability to fully customize the colour screens with your own dealer information, or different language, and you can easily see how this integrated UV/filter system shines above all others (an optional Custom Dealer Programmer is required...contact us for further information).


Product Features:


  • One-piece, 2-sump design for leak free operation, (pressure relief, wrench, and new integral hanging clip included with all systems).
  • Controller with Lightlock technology for protected lamp sales.
  • Universal mounting configuration (left or right access).
  • NSF component listed filtration cartridges (included with systems).
  • “Future-proof” expandability port for future upgrades and options.
  • Axial flow, 316L stainless steel polished reactors, fully polished, designed & manufactured to ASME pressure vessel standards.
  • Reliable, industry proven, coated UV lamps, (9,000 hour life on LB4/5 series and 10,000 hour life on LBH4/5 series).
  • Full customization available as an option (language, home screen, phone, QR codes, etc).
ModelLTW-LB5Z2NCLTW-LB5Z12NCLTW-LB5Z22NC
Flow Rate
(30mJ/cm2
@ 95% UVT)
15.0 gpm
56.8 lpm
3.4 m3/hr
1st Filter Housing5 micron sediment LC-2055 micron sediment LC-1055 micron sediment LC-205
2nd Filter HousingN/AHigh-capacity
carbon LC-20C
High-capacity carbon LC-20C
Port Size1”MNPT
Electrical90-265V/50-60Hz
Plug TypeAmerican, NEMA 5-15P
Lamp Watts45 (high-output lamp)
Power (Watts)57 (48 @ 230V)
Maximum Current (Amps)1
Chamber MaterialPolished 316L stainless steel, A249 pressure rated tubing
Reactor Dimensions3.5 x 20.0” (8.9 x 50.8 cm)
Controller Dimensions21.7 x 10.8 x 10.2 cm (8.6 x 4.2 x 4”)
Operating Pressure0.7-8.3 bar (10-120 psi)
Operating Water Temp.2-40° C (36-104° F)
Replacement LampRL-420HO
Replacement SleeveRQ-420
UV MonitorOptional (requires additional UV sensor module)
Solenoid OutputYES (but requires optional solenoid module)
Dry ContactsYES (but requires optional remote alarm module)
4-20mA OutputYES (but requires optional 4-20mA module)
Lamp Change Reminder
(audible & visual)
YES
Lamp Out Indicator
(audible & visual)
YES
