Lightwave 15 GPM Contractor Series UV Disinfection Rack System
SKU: LTW-C4R2NC

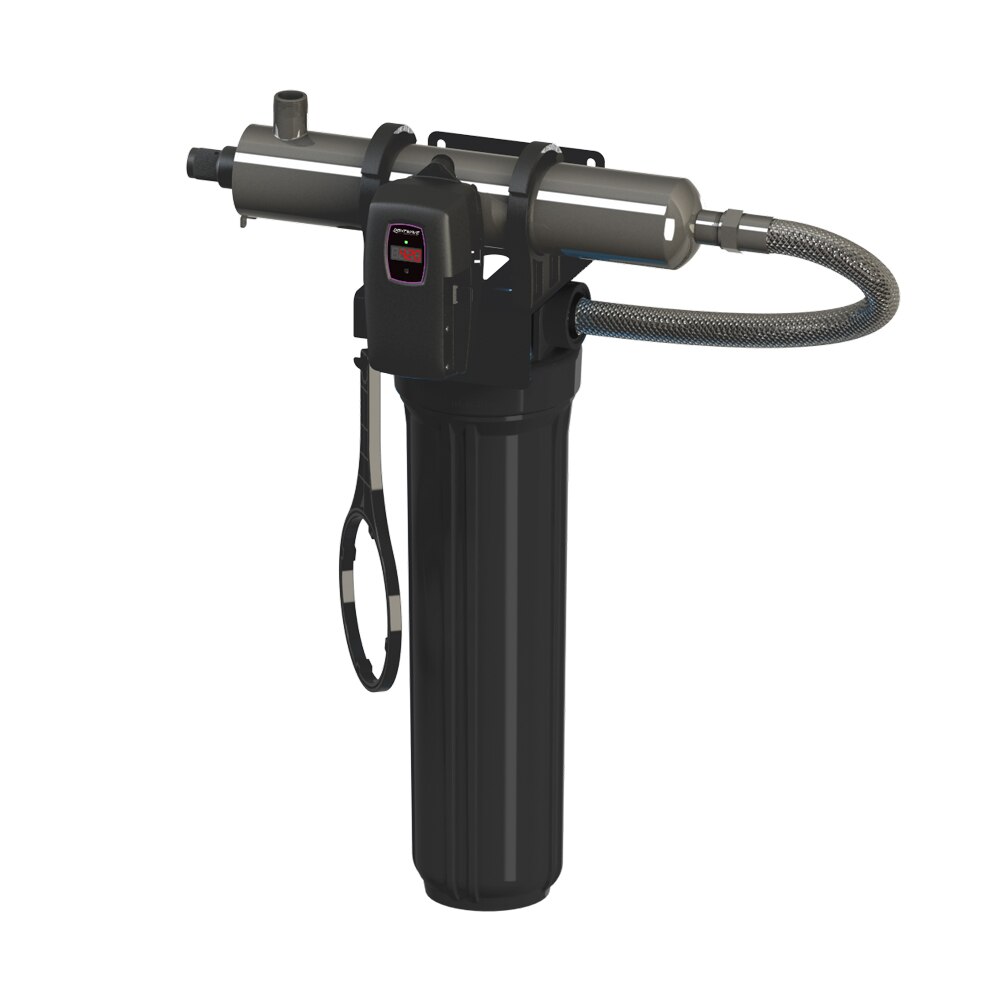

Lightwave 15 GPM Contractor Series UV Disinfection Rack System
Rugged & Durable UV Disinfection Rack Systems
UV technology is proven to control microbiological (bacteria & virus) issues in water including E.coli, Cryptosporidium and Giardia lamblia.
Intended for easy, do-it-yourself installation, a LTW-4 system can be installed on the home’s main water line at the point-of-entry, treating all the water coming into the home.
Designed to effectively treat flow rates at 15 gpm, LIGHTWAVE’s rack systems offer the quality, flexibility and convenience that you require for all of your residential and light commercial applications.
Product Features:
- 15 gpm rack system.
- Single 20" sediment
- 10,000 hr lamp life - 375 days.
- 304 SS LPHO-based system
- Integral lamp life monitor, with both audible and visual indication of lamp life.
- Reliable, industry proven, proprietary low pressure coated UV lamps with ceramic bases for durability and long life.
- Constant current electronic controller in a splash proof case, fully potted ballast virtually eliminates common water damage issue.
- 90-265V/50-60Hz
| Model | LTW-C4R1 | LTW-C4R2 |
|---|---|---|
| Flow Rate (30mJ/cm2 @ 95% UVT) | 8 gpm | 15 gpm |
| 30.3 lpm | 56.8 lpm | |
| 1.8 m3/hr | 3.4 m3/hr | |
| Filter Housing | 5 micron sediment | 5 micron sediment |
| Port Size | 1”MNPT | |
| Electrical | 90-265V/50-60Hz | |
| Plug Type | American, NEMA 5-15P | |
| Lamp Watts | 20 | 45 |
| Power (Watts) | 23 (21 @ 230V) | 57 (48 @ 230V) |
| Maximum Current (Amps) | 1 | 1 |
| Replacement Lamp | LTW-RL420 | LTW-RL420HO |
| Replacement Sleeve | LTW-QS330 | LTW-QS420 |
| Replacement Controller | LTW-QS420 | |
| Chamber Material | Polished 304 stainless steel, A249 pressure rated tubing | |
| Reactor Dimensions | 3.5 x 20.0” (8.9 x 50.8 cm) | |
| Controller Dimensions | 6.8 x 3.6 x 3” (17.2 x 9.2 x 7.6cm) | 8.6 x 4.2 x 3.5” (21.7 x 10.8 x 8.9cm) |
| Operating Pressure | 0.7-8.3 bar (10-120 psi) | |
| Operating Water Temp. | 2-40° C (36 - 104°F) | |
| Lamp Change Reminder | YES (4-digit LED display) | |
| Visual Lamp Out Indicator | Yes | |
| Audible Lamp Out Indicator | Yes | |
