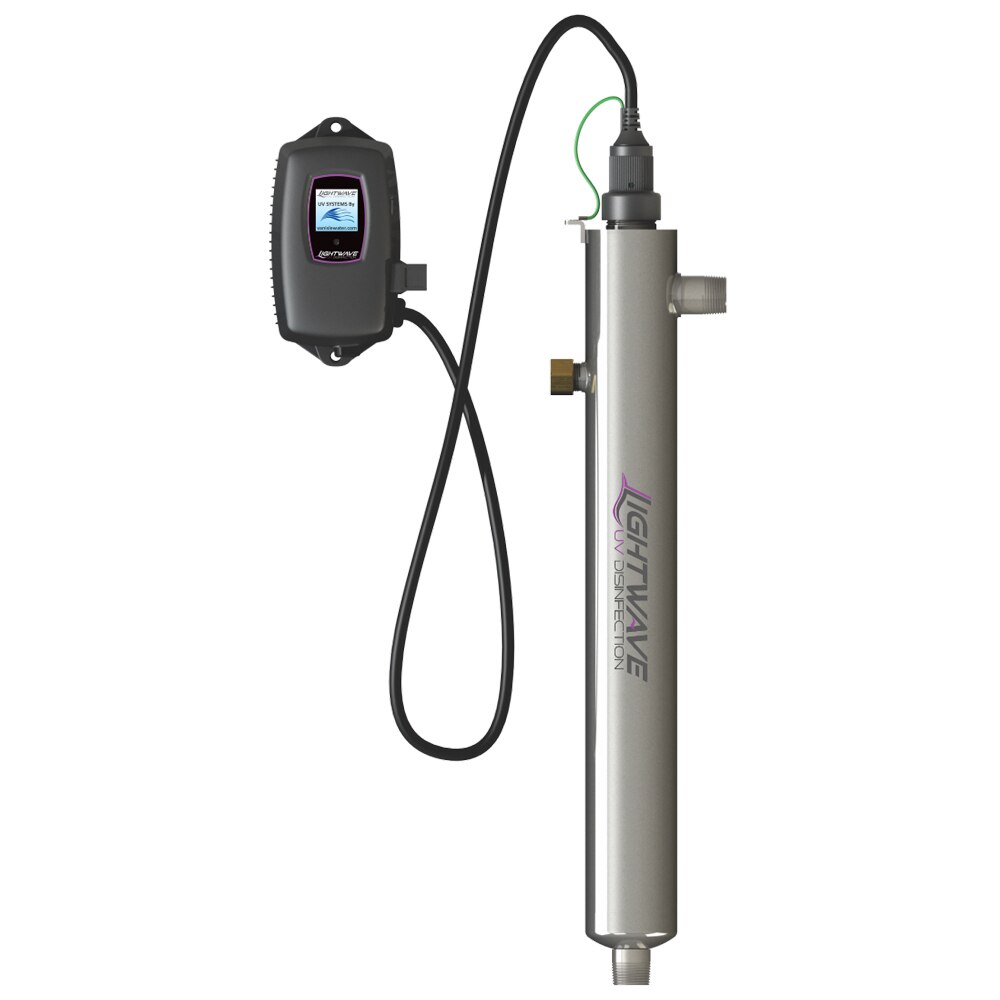

Lightwave 5.1 - 11 GPM UV Water Purification System
SKU: LTW-LB5101
Lightwave 5.1 - 11 GPM UV Water Purification System
If you are unsure of the microbiological quality of your source water or if you are looking for additional security from your municipal water source, then Van Isle Water has the solution in the LIGHTWAVE UV DISINFECTION series of residential UV systems.
LIGHTWAVE UV DISINFECTION provides the ultimate in UV protection for your home with the inclusion of a true 254nm Teflon based UV sensor on LTW-6 systems that continuously monitors the performance of the UV system and displaying the output via a colour screen (optional on LTW-5 systems). In addition to UV output, diagnostics, system status, warnings, even QR codes are included.
With the integral expandability port, the addition of a 4-20mA output or a solenoid valve is a simple plug-and-play option!
Product Features:
- Free floating (no cable twist), keyed-in-place, 254nm Teflon based UV sensor continuously measures and displays UV output (as a%) (std. on LTW-6, optional on LTW-5)
- Colour screen controller with lamp key for protected lamp replacement, includes QR codes, full diagnostics & warnings.
- “Future-proof” expandability port for future upgrades and options.
- Axial flow, 304 stainless steel polished reactors, designed & manufactured to ASME pressure vessel standards.
- User friendly bayonet style lamp connector (quick 1/4 turn removal with no extra tools needed).
- Reliable, industry proven, proprietary low pressure coated UV lamps with ceramic bases for durability and long life (9,000 hours).
- Constant current electronic controller (one controller for all LP units) in a splash proof case, fully potted ballast virtually eliminates common water damage issue.
- Full customization available as an option (language, home screen, phone number, QR codes, etc.)
Model | LTW-LB5101 |
---|---|
Flow Rate (30mJ/cm2 @ 95% UVT) | 11 gpm |
41 lpm | |
2.5 m3/hr | |
Flow Rate (40mJ/cm2 @ 95% UVT) | 8.3 gpm |
31 lpm | |
1.9 m3/hr | |
Flow Rate (16mJ/cm2 @ 95% UVT) | 20 gpm |
77 lpm | |
4.6 m3/hr | |
Port Size | 3/4” MNPT |
Electrical | 90-265V/50-60Hz. 1A Max. |
Plug Type | American, NEMA 5-15P |
Lamp Watts | 39 |
Power (Watts) | 49 |
Maximum Current (Amps) | 1 |
Replacement Lamp | LTW-RL820 |
Replacement Sleeve | LTW-QS820 |
Chamber Material | Polished 304 stainless steel, A249 pressure rated tubing |
Reactor Dimensions | 2.5 x 35.2” (6.4 x 89.5cm) |
Controller Dimensions | 17.2 x 9.2 x 10.2 cm (6.8 x 3.6 x 4”) |
Operating Pressure | 7-10.3 bar (10-150 psi) |
Operating Water Temp. | 2-40° C (36 - 104°F) |
UV Monitor | Optional |
Solenoid Output | YES (but requires optional solenoid module) |
Dry Contacts | YES (but requires optional remote alarm module) |
4-20mA Output | YES (but requires optional 4-20mA module) |
Lamp Out Indicator | YES (both audible and visual (full colour graphic) |
Lamp Change Reminder | YES (both audible and visual (full colour graphic) |
