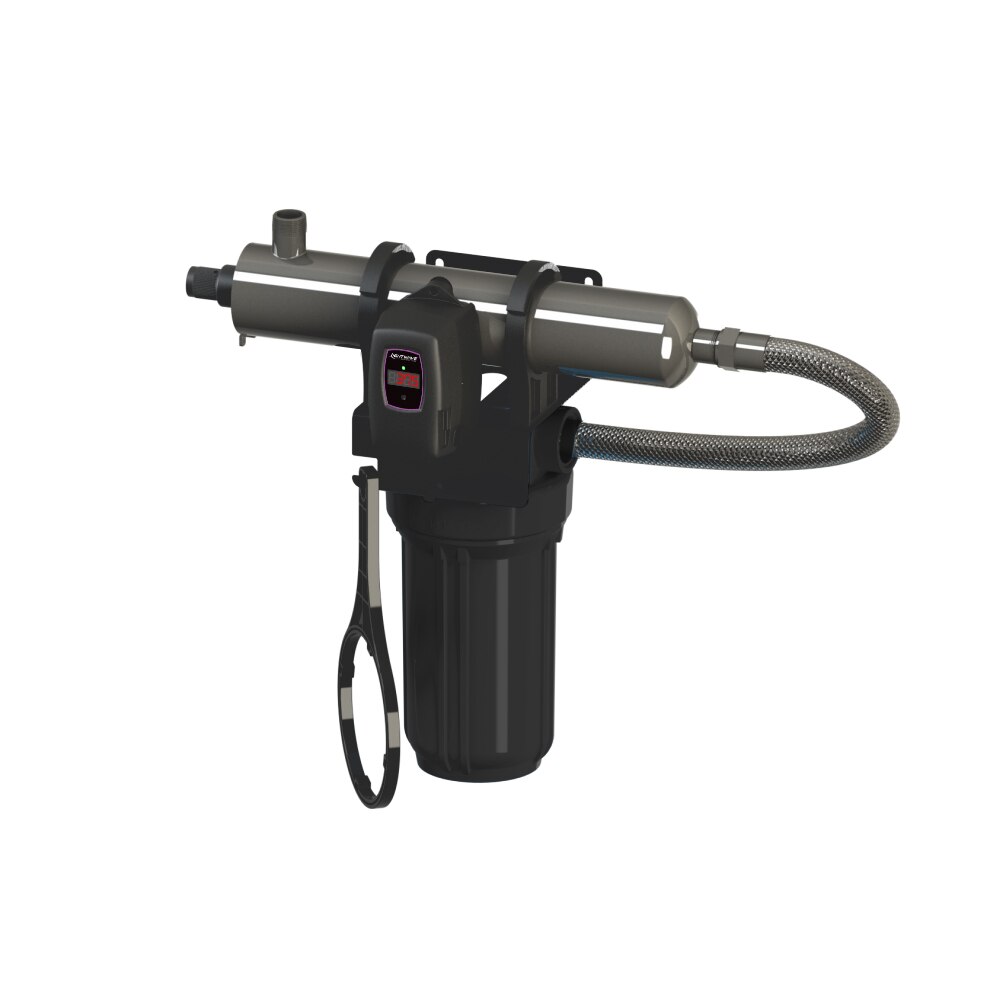

Lightwave 8 GPM Contractor Series UV Disinfection Rack System
SKU: LTW-C4R1NC
Lightwave 8 GPM Contractor Series UV Disinfection Rack System
Rugged & Durable UV Disinfection Rack Systems
UV technology is proven to control microbiological (bacteria & virus) issues in water including E.coli, Cryptosporidium and Giardia lamblia.
Intended for easy, do-it-yourself installation, a LTW-4 system can be installed on the home’s main water line at the point-of-entry, treating all the water coming into the home.
Designed to effectively treat flow rates at 8 gpm, LIGHTWAVE’s rack systems offer the quality, flexibility and convenience that you require for all of your residential and light commercial applications.
Product Features:
- 8 gpm rack system.
- Single 10" sediment
- 9,000 hr lamp life - 375 days.
- 304 SS LPSO-based system
- Integral lamp life monitor, with both audible and visual indication of lamp life.
- Reliable, industry proven, proprietary low pressure coated UV lamps with ceramic bases for durability and long life.
- Constant current electronic controller in a splash proof case, fully potted ballast virtually eliminates common water damage issue.
- 90-265V/50-60Hz
| Model | LTW-C4R1 | LTW-C4R2 |
|---|---|---|
| Flow Rate (30mJ/cm2 @ 95% UVT) | 8 gpm | 15 gpm |
| 30.3 lpm | 56.8 lpm | |
| 1.8 m3/hr | 3.4 m3/hr | |
| Filter Housing | 5 micron sediment | 5 micron sediment |
| Port Size | 1”MNPT | |
| Electrical | 90-265V/50-60Hz | |
| Plug Type | American, NEMA 5-15P | |
| Lamp Watts | 20 | 45 |
| Power (Watts) | 23 (21 @ 230V) | 57 (48 @ 230V) |
| Maximum Current (Amps) | 1 | 1 |
| Replacement Lamp | LTW-RL420 | LTW-RL420HO |
| Replacement Sleeve | LTW-QS330 | LTW-QS420 |
| Replacement Controller | LTW-QS420 | |
| Chamber Material | Polished 304 stainless steel, A249 pressure rated tubing | |
| Reactor Dimensions | 3.5 x 20.0” (8.9 x 50.8 cm) | |
| Controller Dimensions | 6.8 x 3.6 x 3” (17.2 x 9.2 x 7.6cm) | 8.6 x 4.2 x 3.5” (21.7 x 10.8 x 8.9cm) |
| Operating Pressure | 0.7-8.3 bar (10-120 psi) | |
| Operating Water Temp. | 2-40° C (36 - 104°F) | |
| Lamp Change Reminder | YES (4-digit LED display) | |
| Visual Lamp Out Indicator | Yes | |
| Audible Lamp Out Indicator | Yes | |
