Lightwave Remote Alarm Module

Lightwave Remote Alarm Module

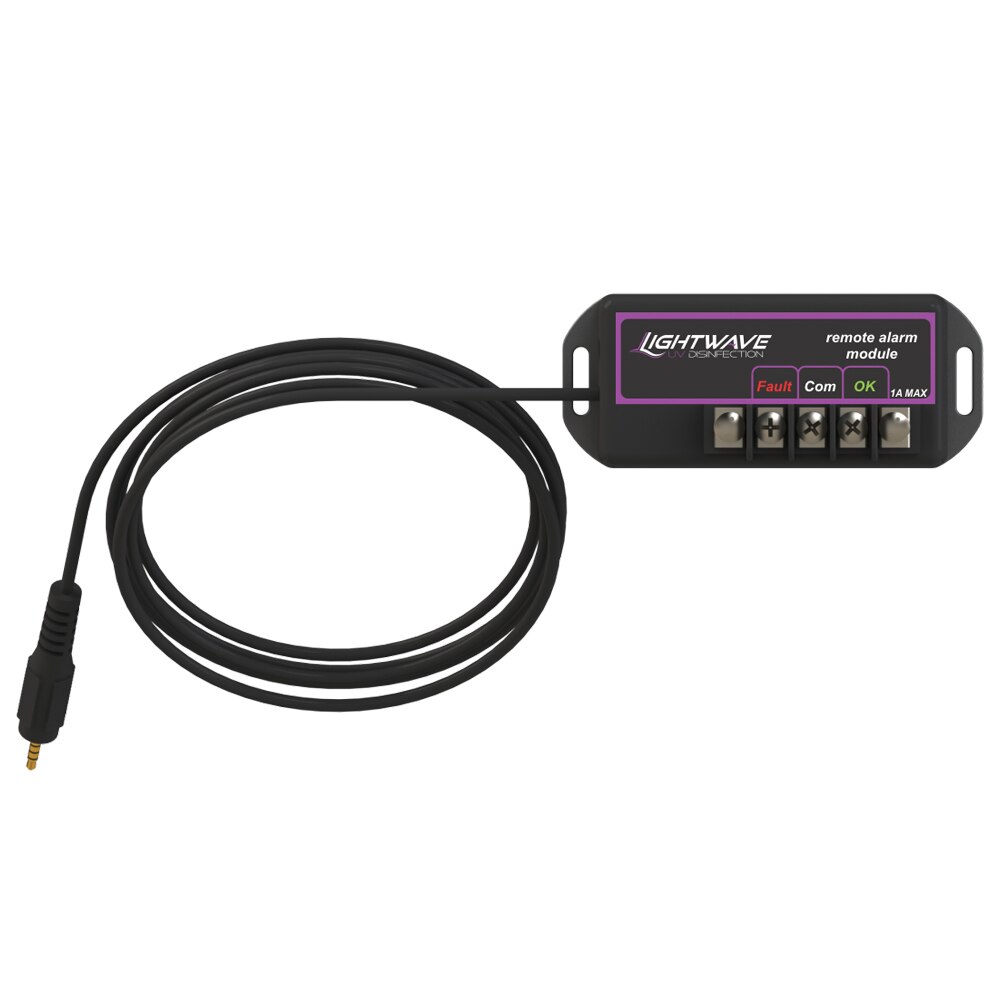

This integral control module allows for a remote connection on all Lightwave products. This device is a “dry (volt free) contact” allowing for the remote installation of alarms, lights, PLC input, data logger, flow control, etc. Simply plug the supplied cable into the IEP (infinite expandability port) on the controller (or daisy chain to any other module used in the system). Three screw terminals (NO, NC & common) are supplied to connect the wire that leads to the receiving end of this dry contact. As the distance required is unknown, no wire is supplied with this system, however 16-22 AWG is required.

• Allows for a remote connection on Lightwave (5.1 and 6.1 only) products.
• Allows for the remote installation of alarms, lights, PLC input, data logger, flow control, etc.
• Simply plug the supplied into the IEP expandability port on the UV sensor module (or daisy chain to any other module used in the system.
• Supplied with three screw terminals (NO, NC & common) to connect to the receiving end of the dry contacts.
• As the distance required is unknown, no wire is supplied with the system, however 16-22 AWG is required.
