1/2HP END SUCTION PUMP DR1S05 115/230 FRANKLIN
SKU: FRA-97110005

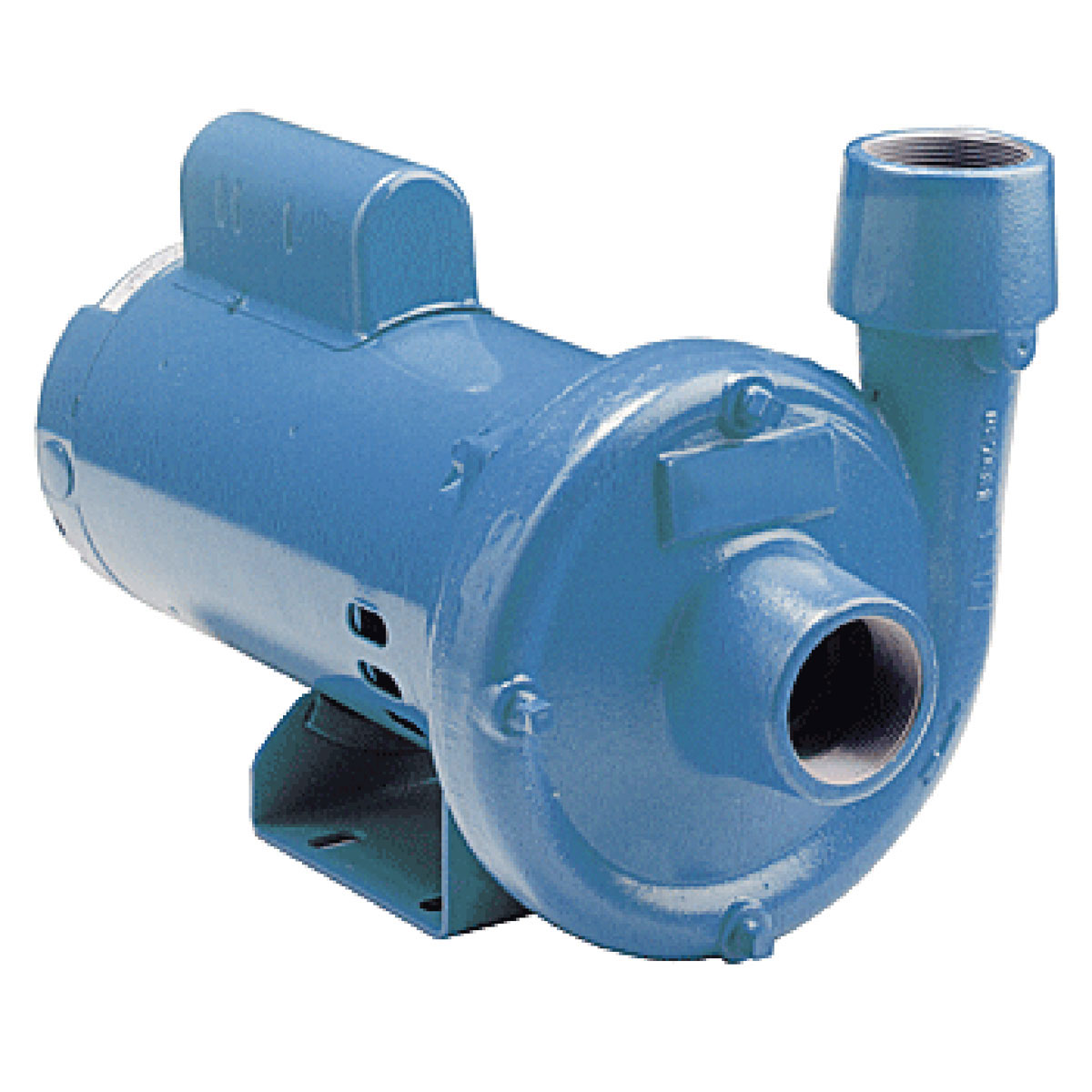

Little Giant 1/2 HP, 115/230v End Suction Centrifugal Pump (9020 0005)
Compact close coupled electric motor driven utility pump with rugged cast iron casing. Common applications include water circulation, booster service, liquid transfer, spraying systems and general service.

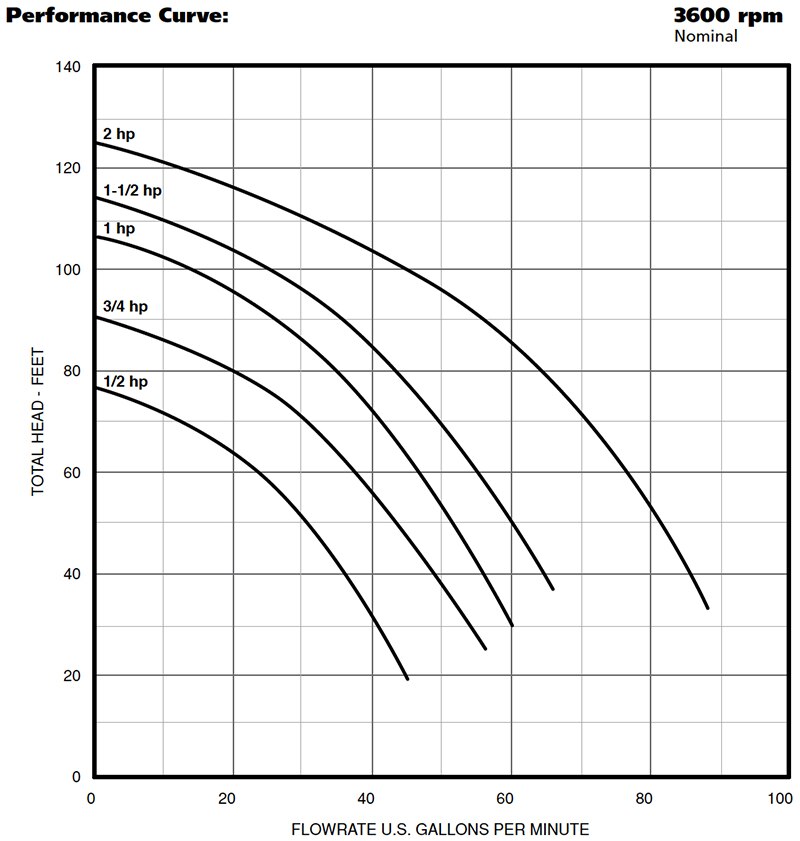

This 1/2 horsepower pump has a maximum flow of 2760 GPH/46 GPM and a maximum head of 76' (32 PSI). 1 1/4" FIPT Suction, 1" FIPT Discharge, 115/230v.
Features:
- Cast iron volute can be rotated for ease of installation
- Tapped openings provided for draining
- Glass filled Noryl impeller, enclosed design for high efficiency
- Can be mounted in vertical or horizontal position
- Manufacturer Pump Model: FCE05CI
- Manufacturer Order Number: 90200005
- Old Monarch Numbers: 614561, ACE-S50SD
Specifications:
*Dimensions could vary according to motor manufacturer.
- Horsepower: 1/2
- Flow: 46 GPM @ 20' of Head
- Shut Off: 76'
- Voltage: 115/230v
- Phase: 1
- Hertz: 60
- Suction: 1 1/4"
- Discharge: 1"
- Weight: 31 lbs
- Height: 8.9"
- Width: 7.69"
- Length: 13.75"
*Dimensions could vary according to motor manufacturer.
Franklin Electric FCE SERIES 1/2 HP Replacement Parts
| Diag. No. | Item No. | Description |
|---|---|---|
| 90 | CRA-T66BC | 5/8" Type 6 Buna/Carbon Seal |
| Not all products are currently in stock. Non-stocking items can be ordered, which may increase delivery times. | ||
