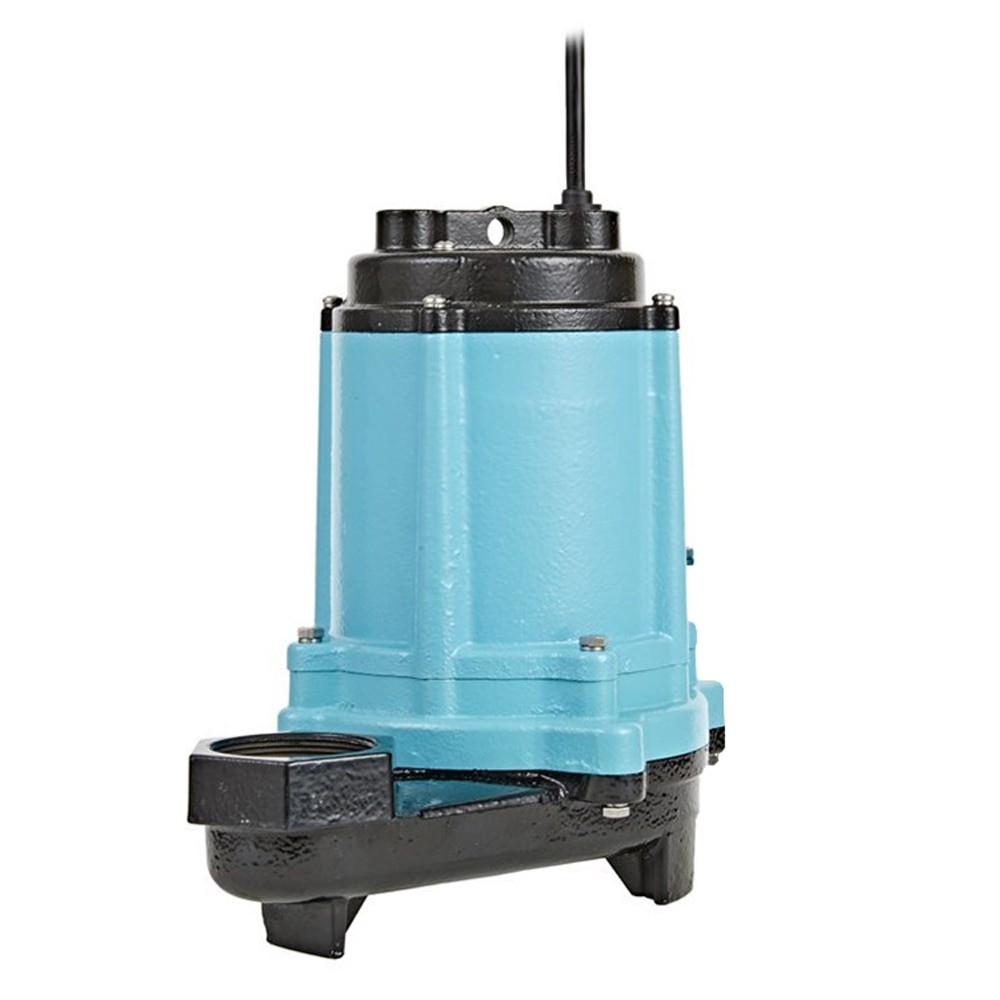

Little Giant 12E-CIM 1/2 HP, 115V Effluent Pump

Little Giant 12E-CIM 1/2 HP, 115V Effluent Pump

This submersible pump is designed for use in basins or pumping stations and is suitable for pumping clean water or effluent gray water with up to 3/4" (19 mm) spherical semi-solids. Do not use the pump in applications where sewage or any other debris (gravel, sand, floating debris, etc.), abrasives, or corrosives are present.

The pump motor is equipped with an automatic restart thermal protector and may restart unexpectedly. Activation of the thermal protector indicates that the motor is overloaded or overheated, which may be due to application problems, such as a clogged pump impeller, a switch stuck in the on position, a dry running of the pump, a air-sealed pump, a short pump cycle, an excessively high or low voltage supply, or a pump, motor, bearings, or seal that may have reached the end of its useful life.

• Effluent/Septic wastewater removal (3/4" solids handling.
• Ideal for high-head performance in deep vault applications while maintaining high flow and clog resistance using cast iron non-clog impeller.
• Continuous Duty rated for long life usage in dewatering, water transfer, and septic wastewater removal.
• Heavy Duty epoxy coated cast iron housing and energy-efficient, oil-filled PSC motor with thermal overload protection to ensure cool, safe operation.
• Unique cloverleaf intake design allows high flow with 3/4" diameter solids handling.
• Piggyback automatic switch option for application flexibility and simple installation.
• 2" FNPT discharge (51 mm).
• Upper and lower ball bearings for increased longevity.
• Peace of mind with standard three-year warranty on all models.
• 3-Year Warranty
