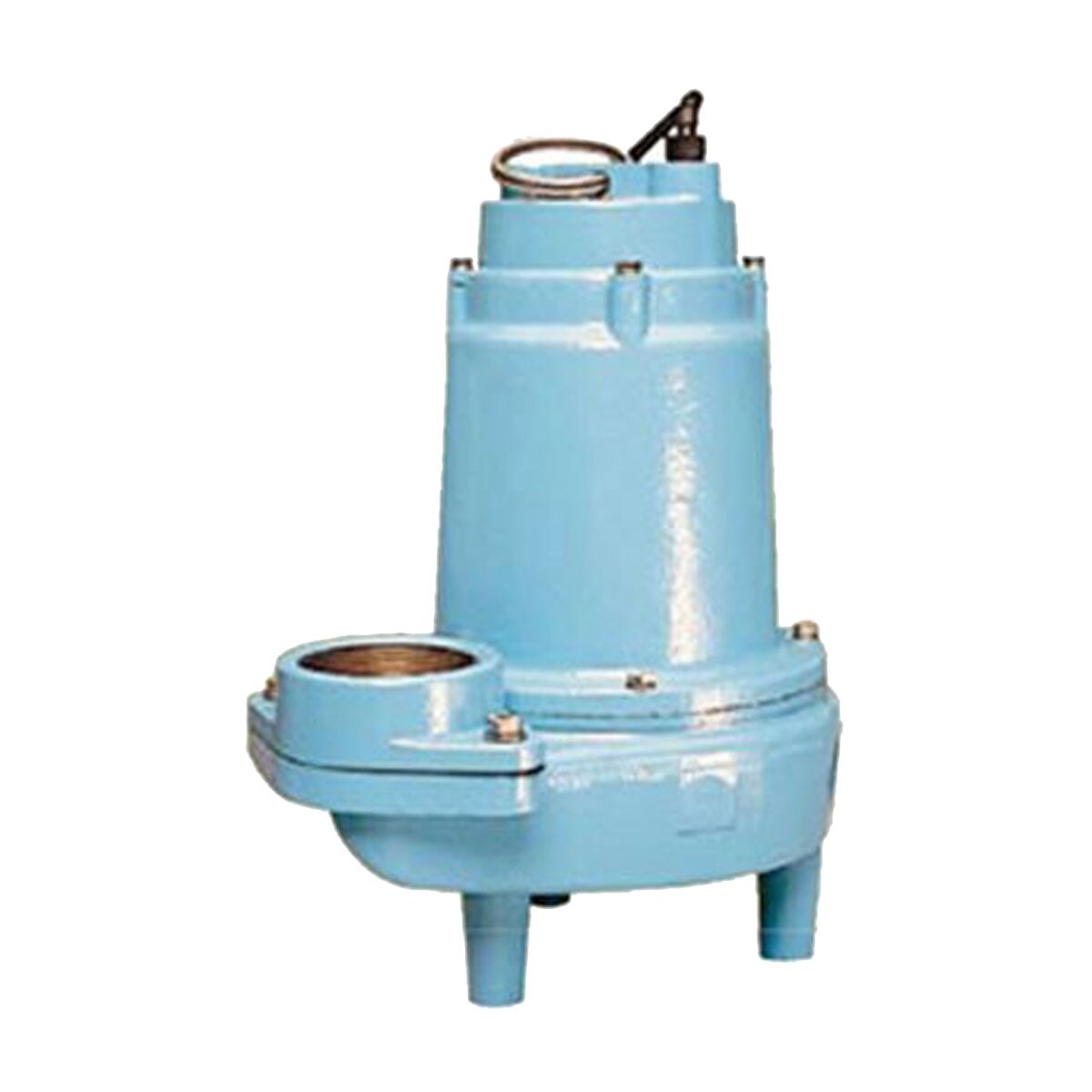

Little Giant 16S 1 HP 208v 3ph Manual Sewage Pump (20' Cord) (16SCIM203PH)
SKU: *LG-514750
Little Giant 16S 1 HP 208v 3ph Manual Sewage Pump (20' Cord) (514750)
The 16S-CIM submersible pump from Little Giant is specifically engineered to handle the tough, demanding tasks of effluent and sewage waste transfer with high efficiency and long-term dependability. For use in residential, commercial, industrial and agricultural applications with light to medium transfer demands. Applications include dewatering, effluent waste, wastewater and sewage handling where such materials must be moved upward from a collection area to sewer or septic lines, or drainage areas.
This 1-horsepower pump has a maximum flow of 160 GPM and a maximum head of 35 feet (15 PSI).
- 3” FIPT discharge, 20' power cord, 200-208v, 3 phase
- 1 horsepower permanent split capacitor motor
- Designed for continuous duty
- Epoxy coated cast iron housing, cover and volute
- 3" FNPT discharge
- Carbon/ceramic shaft seal
- Two vane non-clog epoxy coated cast iron impeller
- Upper and lower ball bearings
- Handles 2” solids
- UL/CSA listed
- Horsepower: 1
- Flow: 160 GPM @ 10' Head
- Shut Off: 35'
- Power Cord: 20'
- Voltage: 200-208v
- Phase: 3
- Hertz: 60
- Amps 6.8
- Watts: 1400
- Discharge: 3"
- Weight: 88 lbs
- Height: 17.18"
- Width: 9.89"
- Length: 14.07"
| Flow in US GPM @ Total Head in Feet | Shut-off Head | Full Load Amps 230v | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| 10' | 15' | 20' | 30' | 40' | 50' | 60' | 70' | |||
| LG/514620 | 160 | 128 | 100 | 40 | 35' | 11.0 | ||||
| LG/514750 | 160 | 128 | 100 | 40 | 35' | 11.0 | ||||
| LG/520301 | 160 | 148 | 137 | 111 | 84 | 50 | 15 | 64' | 15.5 | |
| LG/520100 | 205 | 195 | 168 | 140 | 118 | 85 | 55 | 20 | 77' | 18.0 |
