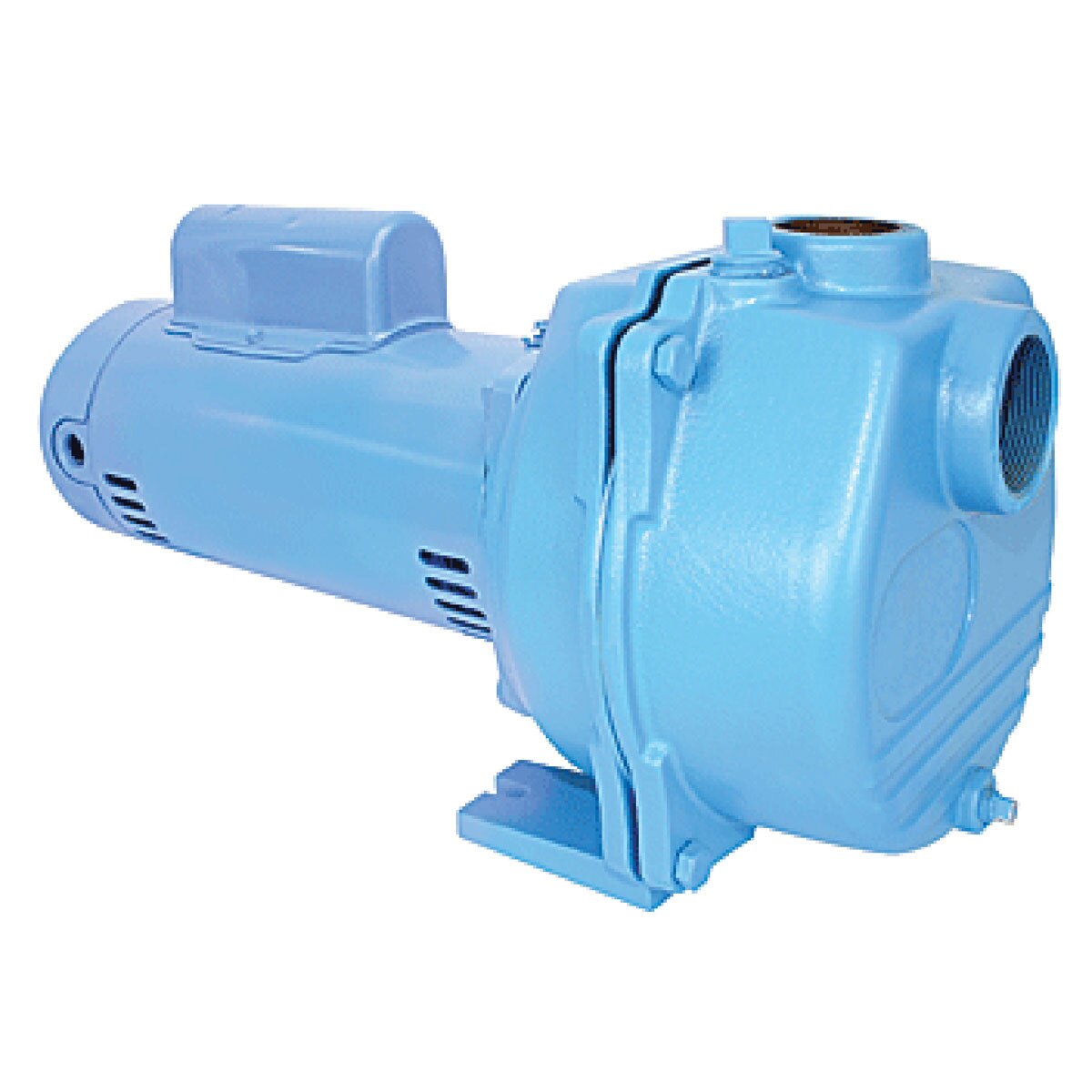

Little Giant 2 HP 230v Self Priming Pump (LSPH-200-C)
SKU: *LG-558298
Little Giant 2 HP 230v Self Priming Pump (558298)
The SPHE Series pumps are self priming and cover a wide range of applications. They are ideal for both residential and commercial lawn and turf sprinkler systems or as a standby pump for fire protection.
This 2 horsepower pump has a maximum flow of 85 GPM and a maximum head of 131' (57 PSI). 2" FIPT suction, 1 1/2" FIPT discharge, 230v.
- Cast iron pump casing.
- Stainless Steel motor shaft for corrosion resistance.
- Carbon/ceramic 5/8" mechanical seal.
- Horsepower: 2
- Flow: 85 GPM @ 20' Head
- Shut Off: 131'
- Voltage: 230v
- Hertz: 60
- Suction: 2"
- Discharge: 1 1/2
- Weight: 66 lbs
LSP/TurfBoss based on 5' Suction Lift | |||||||
---|---|---|---|---|---|---|---|
US GPM Flow | |||||||
10 psi | 20 psi | 30 psi | 40 psi | 50 psi | 60 psi | Max psi | |
LG/558294 | 72 | 62 | 46 | 20 | 46 | ||
LG/558298 | 84 | 81 | 73 | 58 | 33 | 57 | |
FPS/92980030 | 124 | 110 | 95 | 77 | 54 | 59 | |
FPS/92980033 | 124 | 110 | 95 | 77 | 54 | 59 | |
FPS/92980050 | 170 | 165 | 146 | 128 | 109 | 85 | 74 |
FPS/92980053 | 170 | 165 | 146 | 128 | 109 | 85 | 74 |
