Little Giant 20S 2 HP 230v Manual Sewage Pump (20' Cord) (20SCIM20)
SKU: LG-520100
Little Giant 20S 2 HP 230v Manual Sewage Pump (20' Cord) (520100)

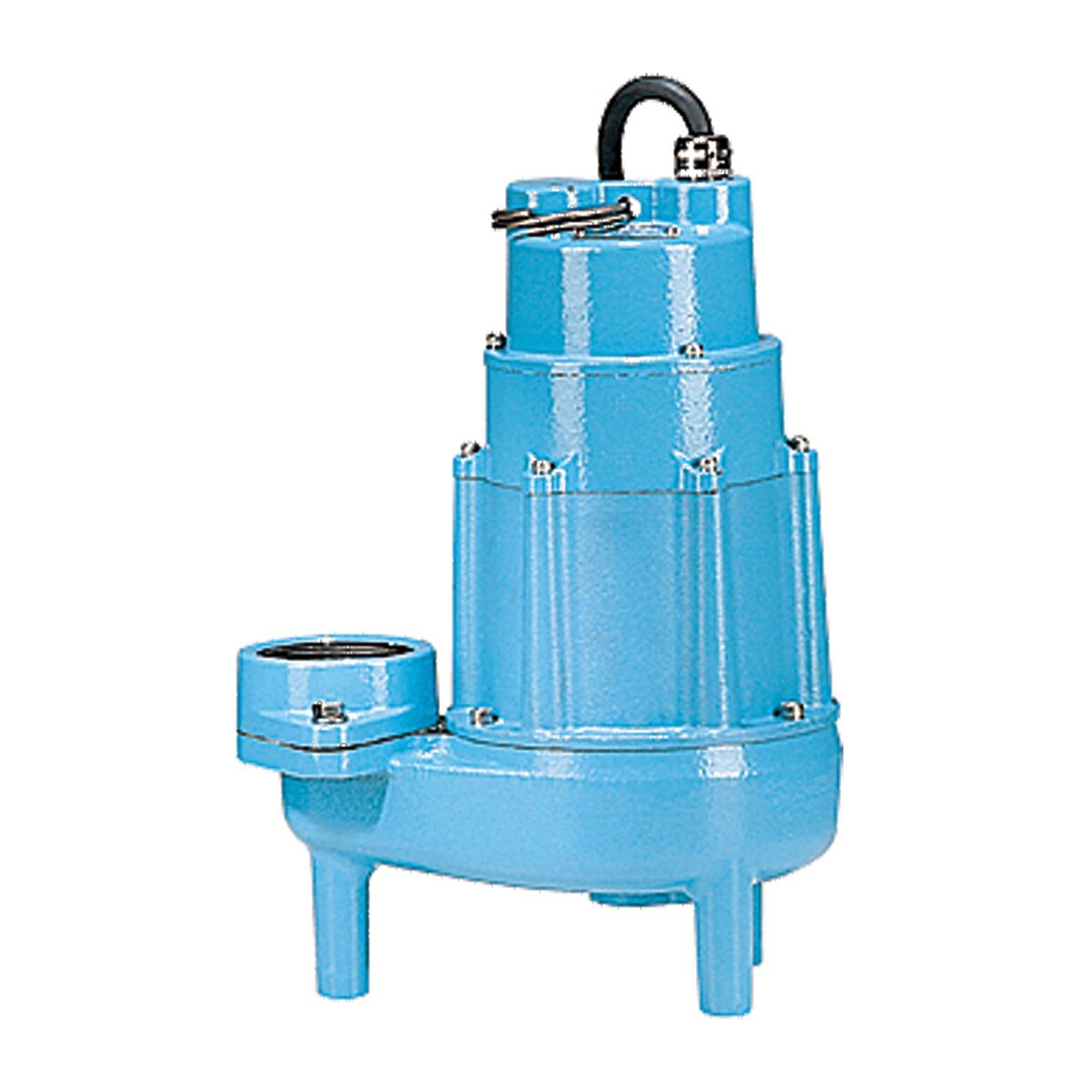

The 20S-CIM submersible pump from Little Giant is specifically engineered to handle the tough, demanding tasks of effluent and sewage waste transfer with high efficiency and long term dependability.
For use in residential, commercial, industrial and agricultural applications with light to medium transfer demands. Applications include dewatering, effluent waste, wastewater and sewage handling where such materials must be moved upward from a collection area to sewer or septic lines, or drainage areas.
This 2 horsepower pump has a maximum flow of 205 GPM and a maximum head of 77' (33 PSI).
- 3” FIPT discharge, 20' power cord, 208-230v, 1 phase
- 2 horsepower permanent split capacitor motor with overload protection
- Designed for continuous duty
- Epoxy coated cast iron housing, cover and volute
- 3” FNPT discharge
- Carbon/ceramic shaft seal
- Brass impeller
- Upper and lower ball bearings
- Handles 2” solids
- UL / CSA listed
- Horsepower: 2
- Flow: 205 GPM @ 10' Head
- Shut Off: 77'
- Power Cord: 20'
- Voltage: 208v-230v
- Phase: 1
- Hertz: 60
- Amps 18
- Watts: 4118
- Discharge: 3"
- Weight: 96 lbs
- Height: 19.07"
- Width: 8.42"
- Length: 12.93"
Flow in US GPM @ Total Head in Feet | Shut-off Head | Full Load Amps 230v | ||||||||
---|---|---|---|---|---|---|---|---|---|---|
10' | 15' | 20' | 30' | 40' | 50' | 60' | 70' | |||
LG/514620 | 160 | 128 | 100 | 40 | 35' | 11.0 | ||||
LG/514750 | 160 | 128 | 100 | 40 | 35' | 11.0 | ||||
LG/520301 | 160 | 148 | 137 | 111 | 84 | 50 | 15 | 64' | 15.5 | |
LG/520100 | 205 | 195 | 168 | 140 | 118 | 85 | 55 | 20 | 77' | 18.0 |
