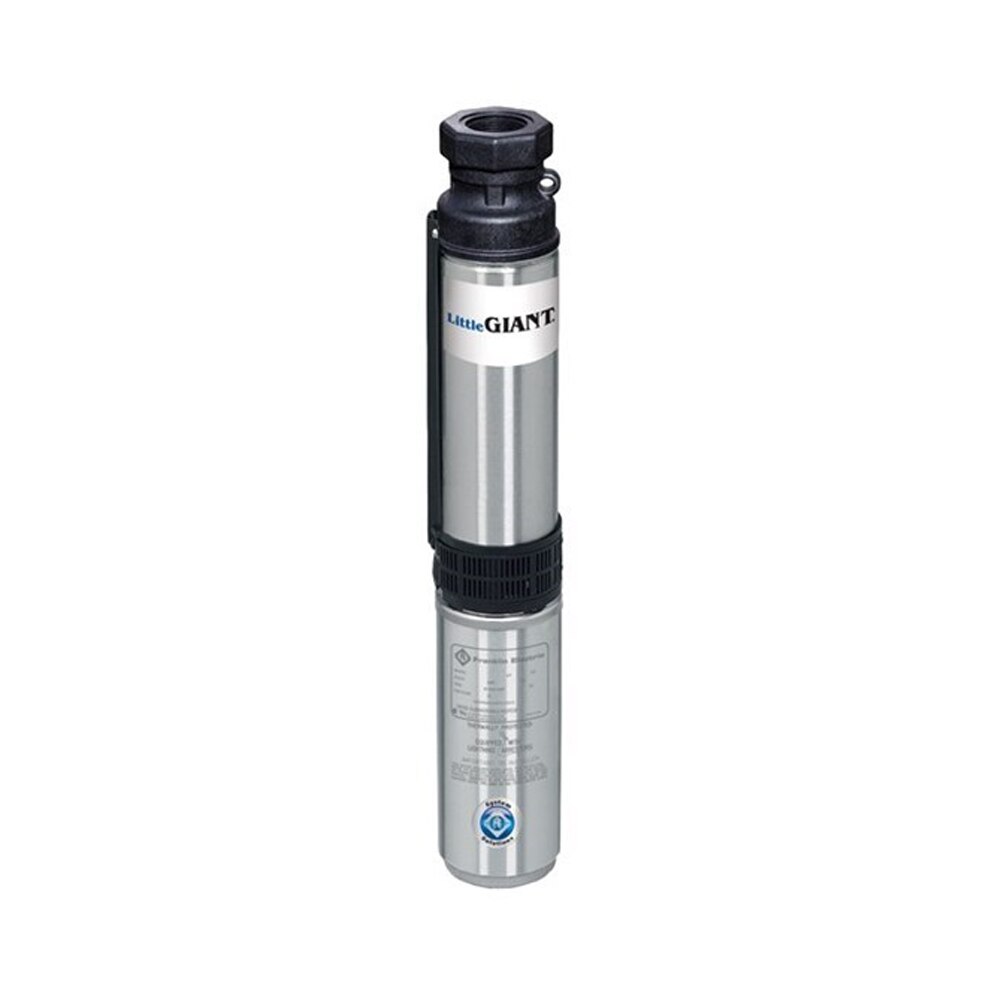

Little Giant 3/4 HP, 12 GPM, 230V, 2-Wire, 4" Submersible Pump & Motor
SKU: *LG-558566
Little Giant 3/4 HP, 12 GPM, 230V, 2-Wire, 4" Submersible Pump & Motor
For both new installs and replacement applications where water must be transferred under pressure from wells, cisterns, ponds, lakes, and streams.
- Available with thermoplastic discharge and motor bracket, or stainless steel discharge and motor bracket.
- Ceramic bearing sleeve for durability.
- Hex rubber bearing has an extra large surface to assure shaft stability and multiple flow channels to keep small particles away from bearing surfaces.
- Celcon® disk allows for close tolerances for increased performance.
- Stainless steel up thrust washer prevents excessive wear in severe applications.
- Built-in, Flomatic® check valve keeps water in the system at all times.
- Removable suction screen on both thermoplastic and stainless steel units prevents debris from clogging impellers and provides full flow performance.
- Stainless steel shaft features high quality, premium materials at a competitive price.
- Powered by Franklin Electric Super Stainless Motor.
| MODEL | DISCHARGE SIZE (FNPT) | DISCHARGE TYPE | GPM | HP | STAGES | VOLTS | WIRES | SHUT OFF (FT) |
| W12G07S9-22P | 1-1/4” | Thermoplastic | 12 | 3/4 | 9 | 230 | 2 | 291 |
