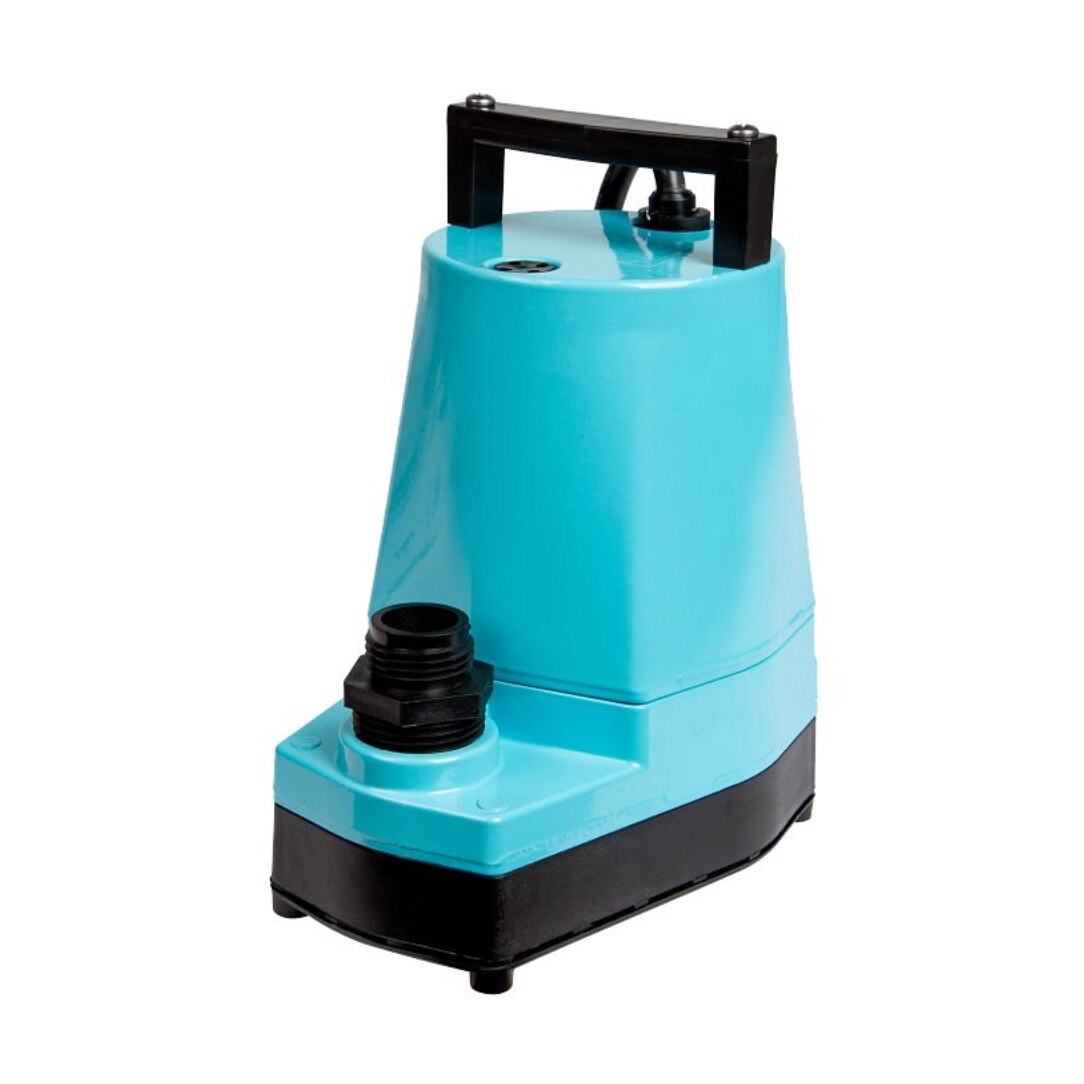

Little Giant 5 MSP 1/6 HP 115V 2.0A Sump Pump w/ 10' Cord Oilless Motor
SKU: LG-505723
Little Giant 5 MSP 1/6 HP 115V 2.0A Sump Pump w/ 10' Cord
The 5-Series is one of the most compact utility pumps on the market. Ideal for light commercial and multi-purpose residential applications where water removal, transfer, or circulation is required.
This 1/6 horsepower pump has a maximum flow of 1500 GPH and a maximum head of 26 feet (11 PSI). 1" FIPT discharge, 10’ power cord, 115V, 2.0A.
Features & Benefits:
- Corrosion- and rust-resistant, epoxy-coated cast aluminum pump housing gives strength and high heat dissipation for both consumer and professional use.
- Rated for continuous duty which allows for a wide range of applications and uses.
- Compact design with manual version weighing in just under seven pounds makes this pump truly portable.
- 1/6 hp energy efficient and oil free PSC motor is environmentally friendly and delivers 1500 gph maximum capacity
- FKM triple-lip seal.
- Upper and lower ball bearings for long life.
- 1" FNPT (25.4 mm) discharge (includes garden hose adapter for quick plug and play).
- Removable inlet screen allows for easy cleaning without tools.
- In manual operation, pumps down to 1/8" (3.2 mm) with screen, and down to 1/16" (1.6 mm) without screen reduces overall water removal clean up time and effort.
- Multiple switch options for automatic operation gives application flexibility.
- Multiple power cord lengths available.
- 120 °F (49 °C) maximum liquid temperature rating.
Ratings -
- HP 60Hz - 1/6 hp
- Frequency - 60 Hz
- Phase - Single-Phase
- Amps - Full Load 2 A
- Amps - Starting - 3.5 A
- Full Load Watts - 380 W
- Volts - 115 VAC
- Cord Length - 10 ft
- Motor Type - Submersible
- Continuous Duty - Yes
- Thermal Overload Protection - Yes
- Protection [IP] - IP68
Operation -
- Maximum Flow Rate - 60Hz - 25 gpm
- Minimum Flow Rate - 60Hz - 250 gph
- Rated Flow Rate - 60Hz - 18 gpm
- Shut-Off - 26.3 ft
- Minimum Head - 60Hz - 0.4 m
- Shut Off Height - 60Hz - 26.3 ft
- Stages - 1
- Max Solid Handling Size - 0.13 "
- Switch Type - Manual
- Motor Cooling - Water
Liquid -
- Max Fluid Temperature - 120 °F
Materials of Construction -
- Pump Base Material - Plastic
- Pump Body Material - Aluminum
- Pump Volute Material - Nylon
- Impeller Type - Semi-open
- Impeller Material - Nylon
- Motor Shaft End - Material -Stainless Steel
- Intake Screen Materia - Nylon
- Top Bearing Type - Sleeve
- Bottom Bearing Type - Sleeve Bearing
- Seal Material Viton RetainerSeal Type Retainer

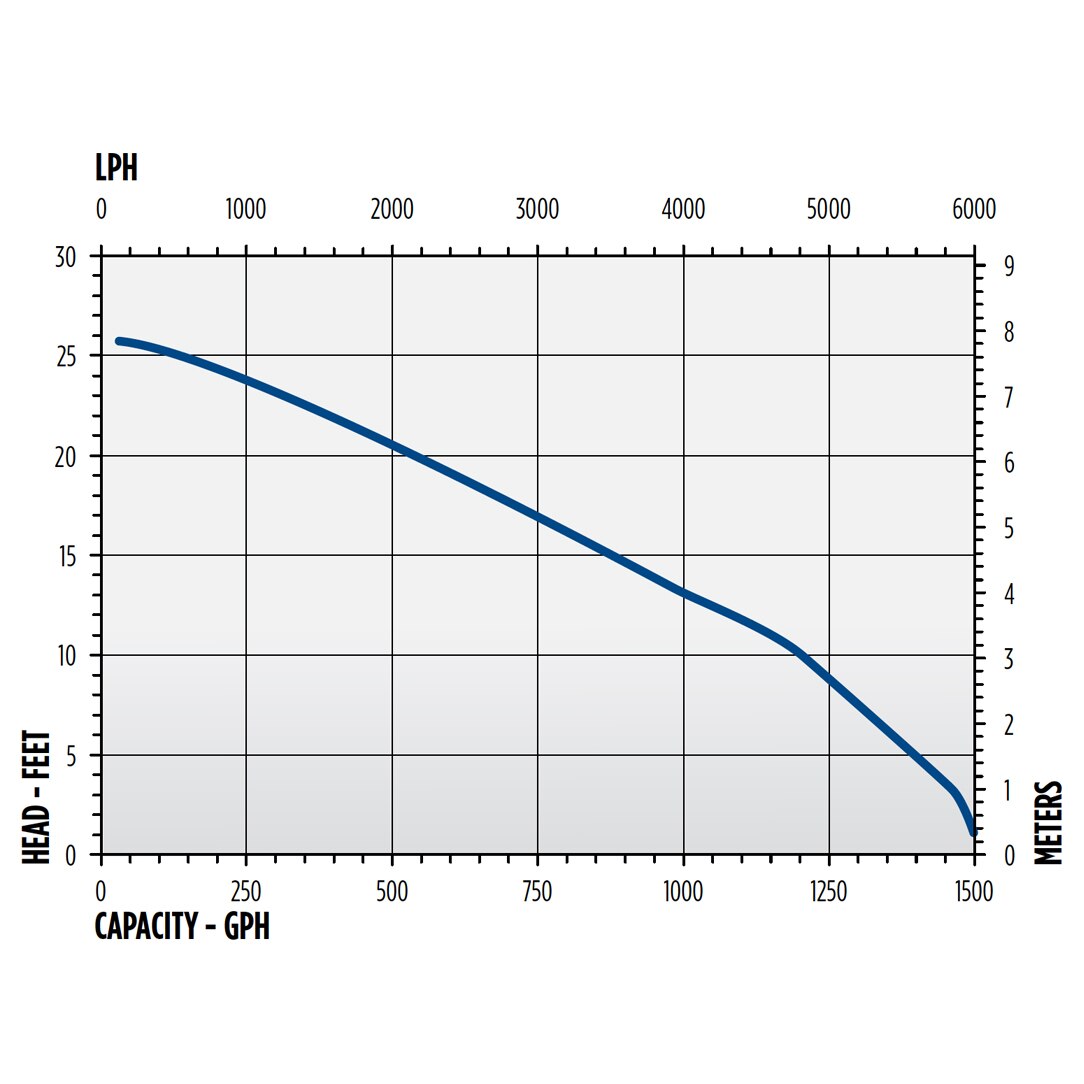

| VOLTS | Hz | FLA | WATTS | PERFORMANCE (GPH @ HEIGHT) | SHUT-OFF | PSI | ||||
| 1 ft | 3 ft | 5 ft | 10 ft | 20 ft | ||||||
| 115 | 60 | 2.0 | 220 | 1500 | 1464 | 1395 | 1191 | 528 | 26 ft | 11.43 |
