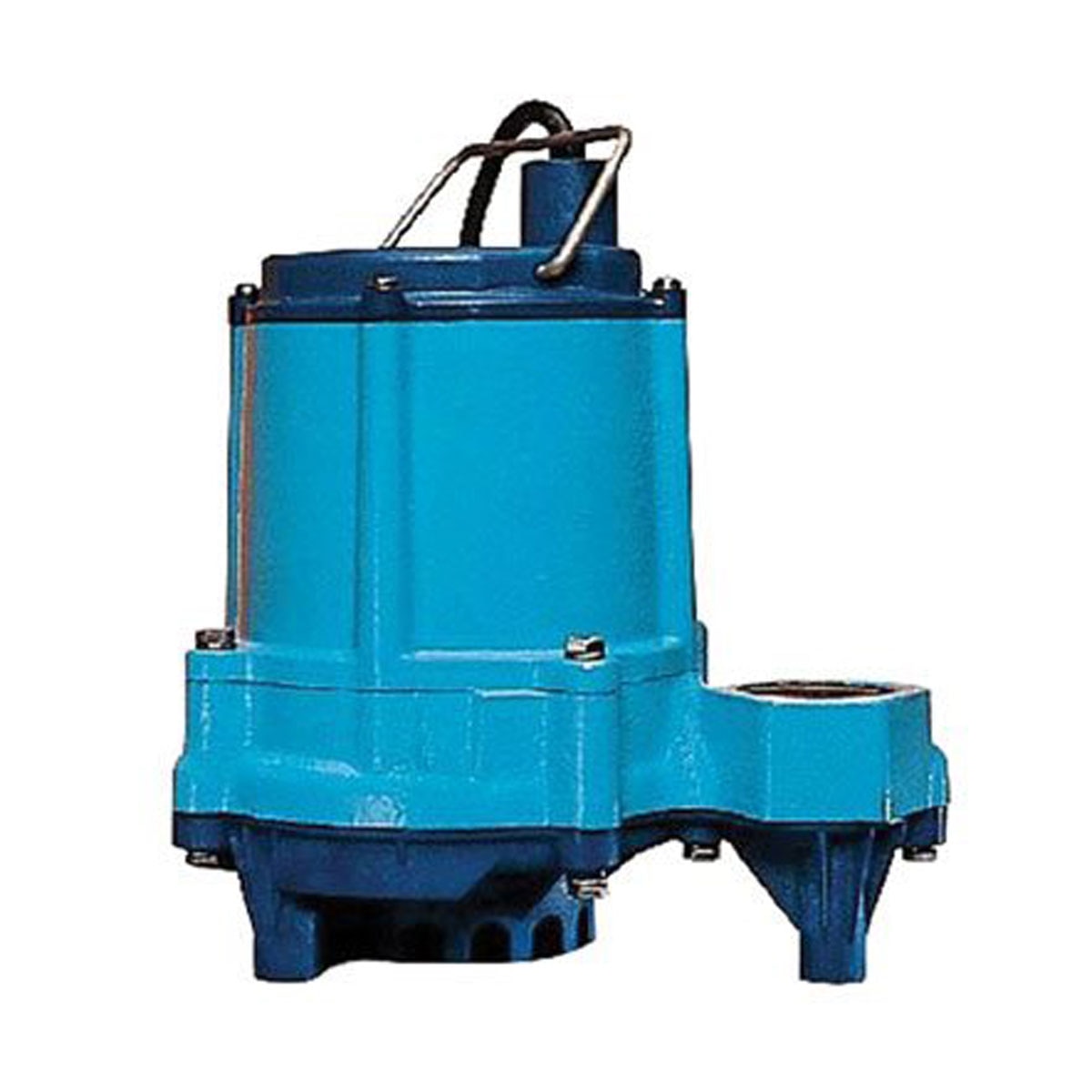

Little Giant 6EC-CIM 1/3 HP 115v Manual Effluent Pump (20' Cord) (506802)
SKU: LG-506802
Little Giant 6EC-CIM 1/3 HP 115v Manual Effluent Pump (20' Cord) (506611)
Little Giant 6EC Series pumps feature 1/3 HP Permanent Split Capacitor (PSC) motors providing lower current draw, energy efficiency, improved performance and cooler-running for durability. Built on the industry's best 6E platform, the 1/3 hp 6EC series consumes only 5.0 amps while producing 53 gpm @ 5' of head and reaching a maximum shut off of 28' The new unit also includes a stainless steel plate on the volute as a debris filter, creating lower intake velocities and pump stability.
Features:
- 1/3 HP Permanent Split Capacitor (PSC) motor with thermal overload protection
- Energy saving low amp draw
- Cooler running motor which extends pump life
- Epoxy coated cast iron motor housing
- Plastic base
- Vortex impeller
- Solids handling up to 1/2" diameter
| Flow in US GPM @ Total Head in Feet | Shut-off Head | Full Load Amps 115v | |||||
|---|---|---|---|---|---|---|---|
| 5' | 10' | 15' | 20' | 30' | |||
| LG/506802 | 53 | 50 | 42 | 34 | - | 28' | 5.0 |
| LG/510800 | 67 | 57 | 52 | 47 | 28 | 36' | 6.5 |
